|Name:||Pipe Racking||Assemble:||Pipe And Joint Sysytem|
|Material:||Plastic Caoted Pipe & Metal Pipe Joint||Size:||ODM & OEM|
industrial shelving units,
pipe storage rack

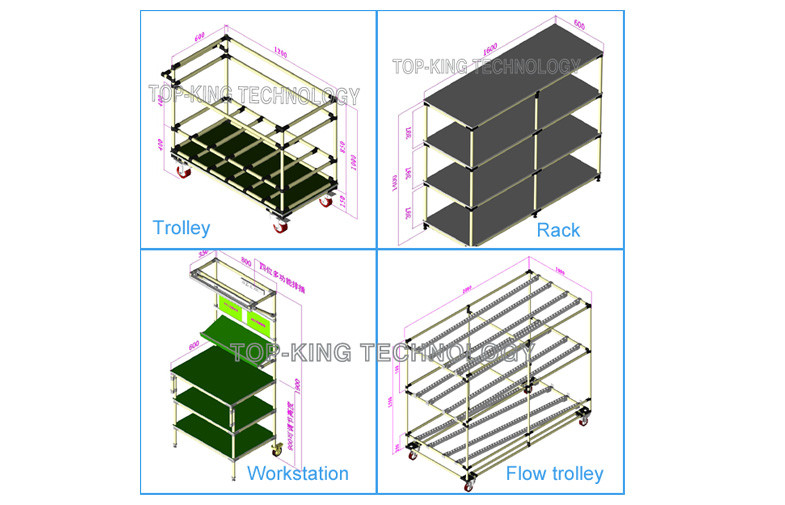

Pipe and Joint System CAD Drawing Model for Assemble Steel Pipe Racking
Pipe Racking sysytem is assemble by plastic coated pipe and pipe joints system .
If you want to finished pipe rack products .
Firstly ,tell us your require, about size and shape .
Second, we will design and draw for you as reference , if you confrim we will prepared materials
(cutting pipes in size and prepared well pipe joints ) and ship to you .
Lastly , you will assemble pipe rack system according to our drawing when you receive materials .
It is flexible and simple to operation ,only need a M6 wrench .
1. Materials: PE coated steel pipe,2.5mm thickness black pipe connectors, plastic coated pipe
in 1.0mm and 1.5mm thickness.Roller Track and roller Track support.
2. Modular steel pipe rack design product, be assembled by pipe connectors and fixed M6*25
bolts and nuts, without welding.Simple and easy operation.
3. Can be adjusted the size to meet your need.Customers can adjust the height or the distance
between the layers,just need to loosen the bolt and nut and move the ABS coated pipe and
pipe joints to the suitable place and tighten the screw nut.That is OK.
4. We accept custom order, OEM & ODM.Just send the drawing of your pipe rack products.
Or your size ,load capacity .Then we will show the design for you.
5. Easy handling of Raw material and assembled product as the raw material are made up of light
6. Assembling requires minimum tools and no special tools are required.
1. Plastic Coated Pipe and it’s metal joints could be made up of several kinds of products as
we please by using the pipes and flexible connecting parts. We can assembly many kinds of
pipe racking products, Such as Pipe Racking , Production Line, working station and other pipe
racks system what you want to do.
2. This flow type pipe racking is constructed with lean plastic coated pipe and different type
metal joints.Besides,This type pipe racks also with the pulley and roller track.It is convenient
to store and take goods.Using the FIFO(first in first out) model. The pipe rack system is widely
used inauto industry, home appliances, light industry and electronic industry,etc.
3. The feature of flow type pipe racking:
A. Between the pipes connecting by the metal joints,which fixed with bolts and nuts without any
welding. Its easily to dismantle, structure and convenient to move
B. Using the simplest concept of producing.
C. Customers can design and assemble pipe rack system into any figure conveniently.
D. The roller track make the rack more flexible.
1. Storage of raw materials and finished goods in the warehouse.
2. Semi-finished products processing store.
3. Carton and accessories store, etc.
4. It can be adjusted, so you can design according to your actual demand.
