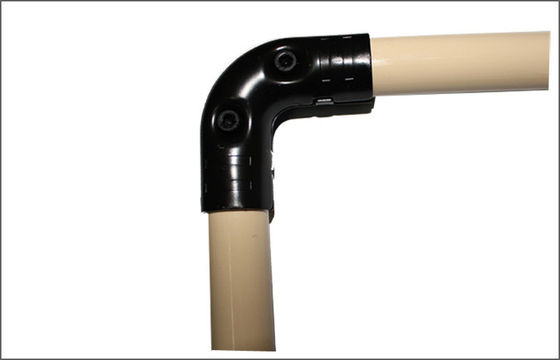

90 Degree SPCC Steel Metal Pipe Joint Hardware Accessories For Lean Pipe

90 Degree SPCC Steel Metal Pipe Joint Hardware Accessories For Lean Pipe

  • 90 Degree SPCC Steel Metal Pipe Joint Hardware Accessories For Lean Pipe
  • 90 Degree SPCC Steel Metal Pipe Joint Hardware Accessories For Lean Pipe
  • 90 Degree SPCC Steel Metal Pipe Joint Hardware Accessories For Lean Pipe
  • 90 Degree SPCC Steel Metal Pipe Joint Hardware Accessories For Lean Pipe
90 Degree SPCC Steel Metal Pipe Joint Hardware Accessories For Lean Pipe
Product Details:
Place of Origin: Shenzhen,China
Brand Name: TOP-KING
Certification: ISO9001 : SGS : RoHS Test Report
Model Number: HJ-15
Payment & Shipping Terms:
Minimum Order Quantity: 500 sets
Price: Negotiation
Packaging Details: Packing in a 360mm*300mm*160mm carton
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 sets per day
Contact Now
Detailed Product Description
Material: Steel Plate For Stamping Color: Black
Type: Angled Cross Structure Weight: 200g/set
Thickness: 2.3mm - 2.5mm Inner Diameter: 27.8mm - 28mm
Technics: Stamping Bolt&nut: M6*25
Head Code: Round Main Market: Global
HS Code: 7307990000 Skype: Jingji.may
High Light:

metal pipe fittings

,

steel pipe connectors

 90 Degree SPCC Steel Metal Pipe Joint Hardware Accessories For Lean Pipe


Quick Detail :
Angled Cross Structure composed of two flexible pipe joints with one set of M6*25.


1. Material:

 2.3mm Thickness SPCC Cold roll steel plate

2. Surface treatment :

Surface electrophoresis treatment(Black one), Zinc/ Nickel /Chrome
plated(Silvery one)

3.  production procedure:

SPCC Steel→ Cut → Model →Stamping →Polish→ Electrophoresis
Or Plating

4. Main Combination:

Two pieces H-17,two sets of M6*25 bolt & nut combine(H-17*2+M6*25*2)

5.Weight

200 g/set

6. Item No.

HJ-15


Product Description :

1.Manufacturing standard: using GB materials to processing and manufacturing. Only the qualified products can pass our strict quality control and inspection.

2.Production process:  Consistent with the national standard thickness 2.5mm (excluding special type products) SPCC material. We emphasize on the functions of each product. Cutting corners in manufacturing process is not allowed.

3.Design requirements: the standard is in accordance with the most favorable specification in the industry. Emphasizes on the safety of people, articles, and equipments; prolong the service life.

4.Testing: In addition to the regular standard gauge testing, a special gauge testing is added for every process to ensure the functional indices reach the standard.

5.Scope of application: factories, enterprise, schools, municipal administration, business, agriculture, building, etc.

6.Sales areas:Asia /Europe/South American/North American/Australia/Middle East.

7.Product features:  special surface treatment to ensure there are not sharp edges for all the products ; Completely avoid various body stings.
Our pipe rack products are sold with competitive price and high quality. And the trade is
conducted on the basis of quality for all over the world.

90 Degree SPCC Steel Metal Pipe Joint Hardware Accessories For Lean Pipe 0

Features of Metal pipe connector :

1

During the whole treament of surface , we have added the milling process.So the surface is very smooth and glossy.

2

Our craftsmanship is solid enough, the technical QC department is a guarantee,we can promise the quality from our factory.

3

The metal joints are easy and simple to handle,don’t need any special equipment and technics,simply connected by nuts and bolts to form into any shape and function you want.

4

We are involved in manufacturing and supplying a wide range of metal joints. These metal joints will be fastened by bolt & nut. so that these can be easily assembled & disassembled.

5

These items together with the coated pipes, metal joints and other accessories can be connected,they can be applied on pipe rack system,they are totally eco-friendly and environmental,can be widely used on production line,warehouse rack.etc


Packing :

 1. Pipe joints and other accessories:
Orginal packing is corrugated carton with any printing .

2.Alumiun alloy Pipes and palstic coated pipes:
Original packing us is 10 pcs packing together in a bar with plastic bags
and white woven bag .

OEM service is avaiable

About shipping

1.Sample:
DHL/UPS/TNT/EMS/HKEMS/FedEx are all available .
2.Bulk order:
In order to save transportation cost, it is recommended to use by sea,LCL or FCL is available

Why choose Shenzhen Jingji(Top-king)

1. Welcome to visit our factory before you place an order

2. High Quality Control with ISO SGS certificate.

3. Export to 60 countries ,have many experience and stong ability to  export .

4. Customer's Designs and Logos are Welcome

5. Earth-friendly Products with cheaper price

6. OEM & ODM are welcome
Application for assemble racking system.
 If the product is defective, please notify us within 3 days of delivery.
We will replace the broken parts with new parts in the next order
