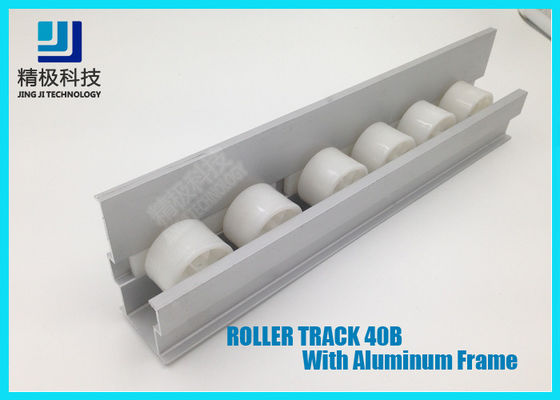

For Conveyors 40B Roller Track Placon 40 mm Width Aluminum Alloy Flange Frame

    • For Conveyors 40B Roller Track Placon 40 mm Width Aluminum Alloy Flange Frame
    • For Conveyors 40B Roller Track Placon 40 mm Width Aluminum Alloy Flange Frame
    • For Conveyors 40B Roller Track Placon 40 mm Width Aluminum Alloy Flange Frame
  • For Conveyors 40B Roller Track Placon 40 mm Width Aluminum Alloy Flange Frame

    Product Details:

    Place of Origin: Shenzhen ,China
    Brand Name: Top-King
    Certification: ISO9001:2008;RoHS
    Model Number: 40B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 meters
    Price: Negotiation
    Packaging Details: 10 bars packing together in woven bag
    Delivery Time: Within 10 working days after received deposit.
    Payment Terms: TT, L/C, Western Union
    Supply Ability: 5000 meters per day
    Contact Now
    Detailed Product Description
    Frame Material: Aluminum Alloy Frame Wheels Material: PE
    Wheel Color: White Bearing: 80KG/Meter
    Width: 40mm Height: 65.2 Mm
    Standard Length: 4000 Mm/pcs Recyclable: YES
    Frequency Of Use: Very High Application: Track Flow ,Conveyor,Slide Rail Type Recycle Trolley.

    Roller Track Placon 40 mm Width Aluminum Alloy Flange Frame For Conveyors 40B



    Description :



    ROLLER TRACK is also widely known as PLACON.
    PLACON is a compound word abbreviated from PLASTIC WHEEL CONVEYOR



    The Placon system is supported by a wide selection of roller styles, mounts, frames, components and guide rails. Precision rollers spin freely and smoothly on polished stainless steel axles and require less flow lane angle than conventional skatewheel conveyors which will also result in using less vertical space.



    This Roller Track ,with Aluminum Alloy Flange Frame .can arrange to install into conveyor or pipe rack to create different slopes and configurations.

    This product is offered in one length for optimal shipping prices and better maneuverability.

    As it is with long functional life ,and sturdy construction ,also strong resistance to corrosion .

    For Conveyors 40B Roller Track Placon 40 mm Width Aluminum Alloy Flange Frame

    Specification :



    Item code 40B
    Production name Aluminum roller track
    Color of wheel white
    Standard length 4000mm per bar
    Width of track 40 mm
    Reusable Yes
    Material of wheel PP



    For Conveyors 40B Roller Track Placon 40 mm Width Aluminum Alloy Flange Frame

    Features:



    1. Roller tracks are designed to efficiently transport material of varied size and weight.

    2. Using the placon can improve the efficiency of goods flow, due to its easiness to control quality

    and store by the ' first-in first-out' ( FIFO) rules
    3. Roller tracks are most often used in flow racks, but can be used for virtually any material flow

    application, when combining with our coated pipes and pipe fitting.
    4. Ideal for requirements in warehouse racking
    5. Using our all kinds of metal pulley connectors, the roller tracks are easily installed and will

    support significant weight. The slope and spacing between tracks is adjustable and determined

    by the size and weight of the material being handled.



    For Conveyors 40B Roller Track Placon 40 mm Width Aluminum Alloy Flange FrameFor Conveyors 40B Roller Track Placon 40 mm Width Aluminum Alloy Flange FrameFor Conveyors 40B Roller Track Placon 40 mm Width Aluminum Alloy Flange Frame



    Applications:



    It can be easily combined to a pipe ,Beiing light and easy to use,the flow rack ,using the placon,can imporve the efficiency of goods circulation due to its easiness to control quality and stock by the first in first out rules ,and easiness to cope with the diversification of goods.



    1) Angled Conveyor slopes to allow containers to flow from load end to picking end positioning components close to workers helping reduce repetitive motion injuries.



    2) Five Level Flow Rack with adjusted levels accommodate diverse weights, size and number of items assuring proper downward travel to the front or off-load point.



    3)Unique Flow Rack securely holds unpackaged parts and components on angled skatewheel rollers and open center passage allows products to extend unimpeded below the rails.



    4)Heavy-Duty Flow Rack holds extensive supply of containers for feeding production area with ample return lanes for holding emptied containers.



    5)Flow Rack built with 28mm pipe and components combines heavy duty handling and storage capacity with simplistic gravity-fed point-of-use part/container conveyance.



    6)Bent Pipe Flow Rack guarantees FIFO ergonomic “strike zone” and bent pipe frame offers pleasing aesthetics while reducing the required number of metal joints to assemble.



    7)28mm Pipe & Joint System provides rigidity and strength for industrial applications without the need for cross bracing while conveying either boxes or plastic totes.



    For Conveyors 40B Roller Track Placon 40 mm Width Aluminum Alloy Flange Frame

    For Conveyors 40B Roller Track Placon 40 mm Width Aluminum Alloy Flange Frame

    For Conveyors 40B Roller Track Placon 40 mm Width Aluminum Alloy Flange Frame



    Certification



    For Conveyors 40B Roller Track Placon 40 mm Width Aluminum Alloy Flange Frame



    About JINGJI (TOP-KING)



    In 2004, JINGJI (TOP-KING) Technology was established and located in shenzhen ,mainly manufacturer for design ,production,and sale of industrial storage equipment .after 10 years ,JINGJI(TOP-KING)have won various honorary titles like "ISO9001-2008""China green environmental protection products ""China famous brand""Creative Award" etc.



    Today ,JINGJI (TOP-KING) contains the technical center, a state-of-the-art pipe mill, plastic component manufacturing, warehouse, structure assembly facility, and sales offices.



    JINGJI(TOP-KING) is the original adaptive material handling system for companies looking to implement continuous improvement and lean manufacturing programs. Our broad line of Aluminum pipe and joints ,PE coated steel pipes, fittings and accessories is designed to let you custom build workstations, flow racks, carts, AGVs and other material handling structures that can easily be changed again and again to match your manufacturing needs. .



    The myriad structure drawings in our database can help quick-start your program. We don’t just sell you a product, we’re there to assist in helping make your operation lean and improve your plant’s environment.



    For Conveyors 40B Roller Track Placon 40 mm Width Aluminum Alloy Flange Frame
