Detailed Product Description

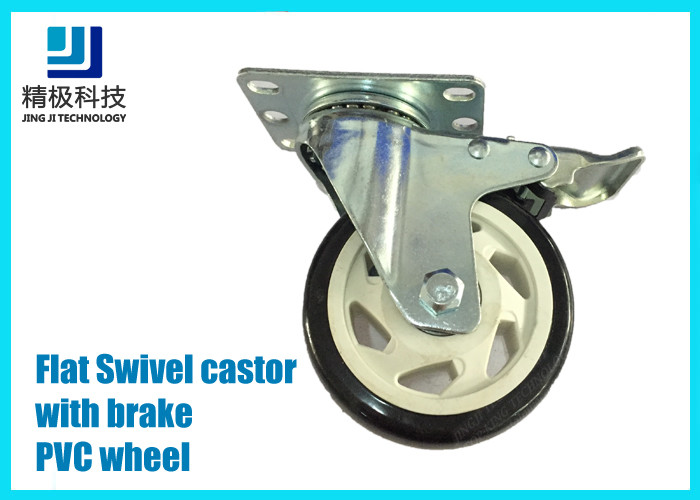

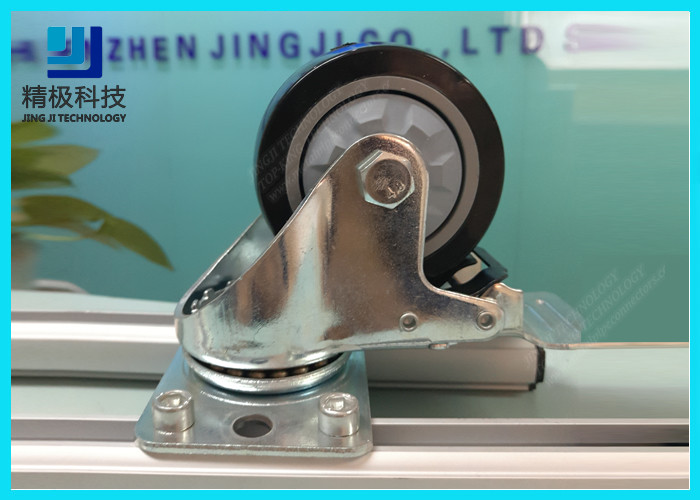

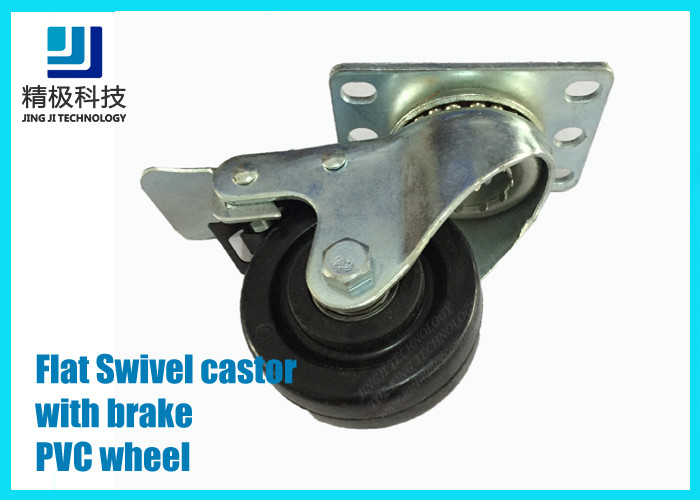

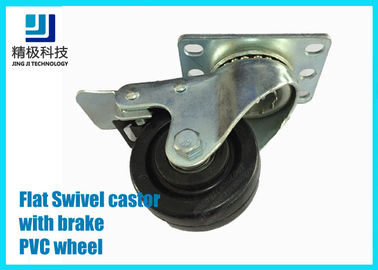

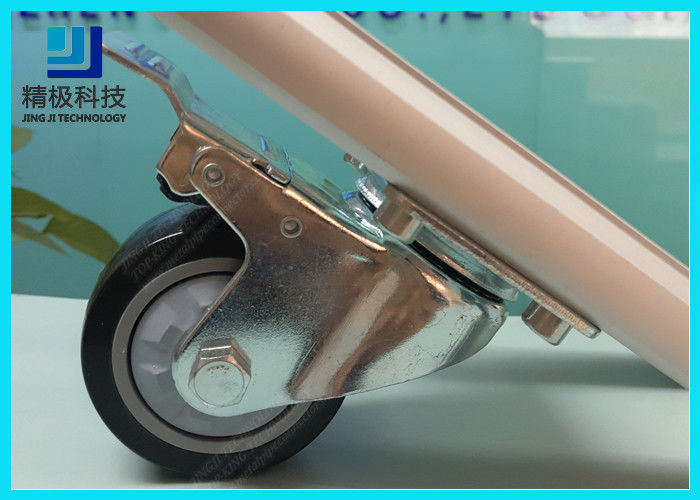

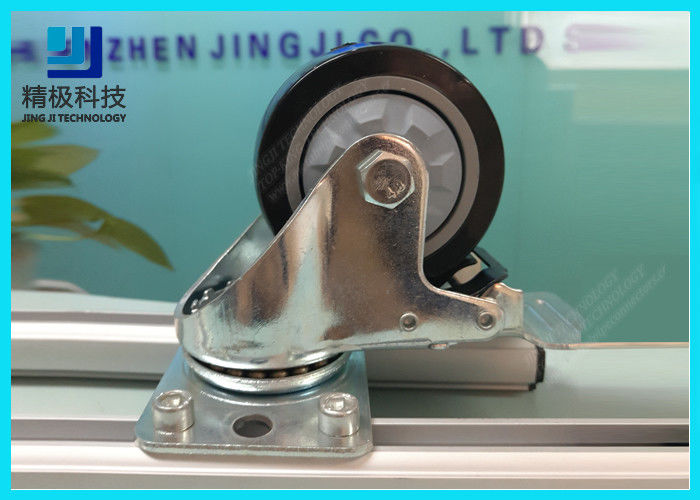

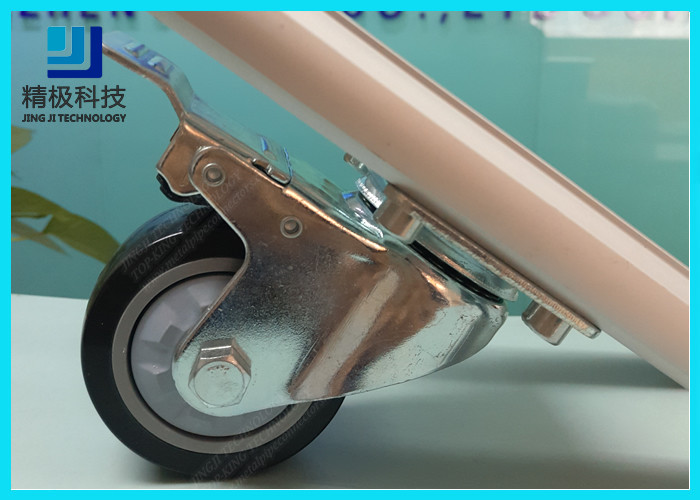

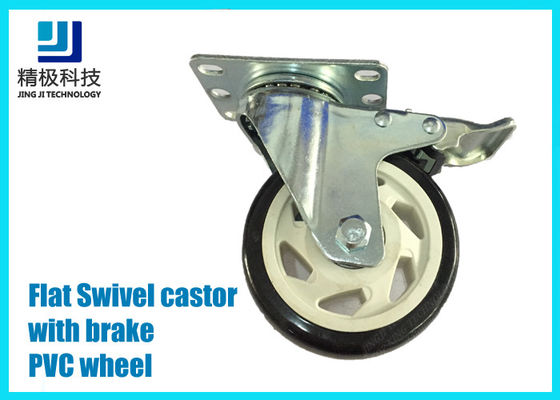

Name: Flat Swivel Castor Size: 3''/4''/5''
Bracket Material: Steel Bracket Thickness: 2.3 Mm
Wheel Material: PVC / ESD Wheel Dia: 75-125 Mm
Wheel Width: 32 Mm Height: 103-150 Mm
High Light:

heavy duty caster wheels

,

replacement caster wheels

3-5 inch Flat Free Swivel Caster Plate-mount With Brake Assembly PVC and ESD Wheel



Description:

Caster wheel is a important parts for move pipe rack products.

There are several types of products for choice, different size, and materials

PVC and ESD Material are the most use material used in pipe rack system.

Adapter stem caster wheel is used directly to insert into the plastic coated pipe, without any accessories.



This wheel is the most commonly used on medium and large structures here at pipe rack system.
You can use it for virtually any structure in your building.

To install the flat swivel castor on a structure, you will need two up and down clamp J-26 brackets,four sets of M10*35mm bolts and nuts.
Like the other wheels requiring bracket assembly, this wheel can be challenging to install, so we recommend that you take a look at the written instructions or the video.

This is a multi-purpose wheel which reacts well on many different surfaces.



3-5 inch PVC / ESD Flat Free Swivel Caster Wheels Plate - mount With Brake Assembly 0

3-5 inch PVC / ESD Flat Free Swivel Caster Wheels Plate - mount With Brake Assembly 1



Size:

3 inch

4 inch

5 inch

Wheel Diameter

75 mm

100 mm

125 mm

Height 103 mm 128 mm 150 mm

Type:

Flat free with brake and without brake

Flat fix castor

Expansion castor with and without brake



Flat free with brake and without brake

Flat fix castor

Expansion castor with and without brake





Flat free with brake and without brake

Flat fix castor

Expansion castor with and without brake



Material:

PVC/ESD

PVC/ESD

PVC/ESD

Load capacity

Ligh (10-90kg/pcs)

Middle (70-120kg/pcs)

Heavy (120-140kg/pcs)

Color

Black,White,Gray

Black,White,Gray

Black,White,Gray





3-5 inch PVC / ESD Flat Free Swivel Caster Wheels Plate - mount With Brake Assembly 2



Installation step:

1- Make sure you have the following parts:
1 Flat Swivel Castor
2 UP Part of J-26
2 Down Part of J-26
4 Bolt M10
4 NUT M10*35 mm
2 28mm pipes of your choice
1 Wrench
1 Ratchet
2- Return the structure for a better access to the bottom pipes.
3- Make sure the P1 and P2 pipes are parrallel and that they pocess 3 inches 1/4 of center center spacing.
4- espacement avec la configuration de tubes et connecteurs suivantes.

5- Put the two down part of J-26 the P1 and P2 pipes.
6- Put the Castor wheel on both down part of J-26 and align the openings.
7- Take one UP part of J-26 and regroup it with one of the down part of J-26.
8-Take two M10*35mm bolt and nuts  and insert them into the corresponding openings. Make sure to put the bolt on the more accessible side.
9- Tighten the M10*35mm bolts and nuts  together a few threads , but no more.

10- Repeat steps 7 to 9 for the other up part and down part of J-26
11- Tighten completely the four M10*35mmbolt and nuts together until all the parts are attached firmly to the two pipes .



3-5 inch PVC / ESD Flat Free Swivel Caster Wheels Plate - mount With Brake Assembly 3



Features :



1..Flexible:Install the adapter stem caster wheel into the lean pipe directly.

2.Simple to use and operate.

3. Environmental and Recycle

4. Caster wheels have strong capacity,anti-static and resistance. Industrial caster wheel's

friction is small.



Application:



Angled Conveyor slopes to allow containers to flow from load end to picking end positioning components close to workers helping reduce repetitive motion injuries.

Bent Pipe Flow Rack guarantees FIFO ergonomic “strike zone” and bent pipe frame offers pleasing aesthetics while reducing the required number of metal joints to assemble.

Workstation with conveyors is easily serviced by material handlers and combines multiple assembly operations into single units eliminating unnecessary steps for assemblers.

Pivoting Push Carts require minimal effort and near-zero turning radius enhances maneuverability in narrow aisles and dead-end pathways.

Shop Floor Display Board is an ideal tool for use on the shop floor, in production departments, and in hands-on instructional settings.
