D Bracket AL-3060-1 Aluminium Construction Profiles ADC-12 For Pipe Rack

D Bracket AL-3060-1 Aluminium Construction Profiles ADC-12 For Pipe Rack

  • D Bracket AL-3060-1 Aluminium Construction Profiles ADC-12 For Pipe Rack
D Bracket AL-3060-1 Aluminium Construction Profiles ADC-12 For Pipe Rack
Product Details:
Place of Origin: Shenzhen ,China
Brand Name: Top-King
Certification: ISO9001:2008;RoHS
Model Number: AL-3060-1
Payment & Shipping Terms:
Minimum Order Quantity: 400 SETS
Price: Negotiation
Packaging Details: Cartons with 200 sets ,size:350*260*150mm
Delivery Time: 5 working day after received the deposit(The actual situation according to the quantity)
Payment Terms: TT, L/C, Western Union
Supply Ability: 5000sets per day
Contact Now
Detailed Product Description
Name: Aluminium Construction Profiles HS Code: 7609000000
Weight: 0.05 G/set Material: Aluminum ADC-12
Application: Pipe Rack,Trolley ,Shelf,shop Display, Exhibition Hall, Etc
High Light:

D Bracket Aluminium Construction Profiles

,

AL-3060-1 Aluminium Construction Profiles

,

Pipe Rack Aluminium Extruded Profiles

Upgrade D Bracket  works with 2.0mm Thickness Aluminum Profile AL-3060



Item Ref AL-3060-1
Material Aluminum +ADC-12
Technology Die-casting
Surface Treatment White sanding /polishing
Weight 0.05 g/ set
Package 200 PCS / Cartons


Specification of D Bracket AL-5050-1

Features:

  1. Aluminium pipe racking system can be well integrated into the conventional pipe racking system
  2. All Steel Joints, mounting brackets, accessories etc. can be perfectly combined with the new aluminium pipe racking system .
  3. Inner type aluminium joint end flush with the aluminium pipe, which is a direct lie-on possibility for panels
  4. High esthetic value without glaring
  5. High strength to weight ration
  6. Aluminium is environmentally friendly and retains high recycling value

Application

  • Flow Rack built with 42mm pipe and four vertical frames use single angle braces for stability using 28mm pipe and 42mm/28mm transition joints.
  • Pipe & Joint System provides rigidity and strength for industrial applications without the need for cross bracing while conveying either boxes or plastic totes.
  • Stand-Up Workstation for fulfilling orders of packaged parts in cell or shipping department accommodates two associates and supplies while also providing expandability.
  • Cradle Carts with an open deck design is easy to load and unload long items and side rails prevent roll off while 6-caster design provides good maneuverability.
  • Picking Carts feature three angled shelves on each side for holding either totes or boxes and cant toward the outside providing good load/unload access.
  • ESD Cart and Assembly Station is designed for handling electronic processors, chips, memory boards and CPUs during assembly and transport.
  • WORK TABLES are used to create additional Creform-made material handling, storage and convenience structures that help implement lean manufacturing processes.

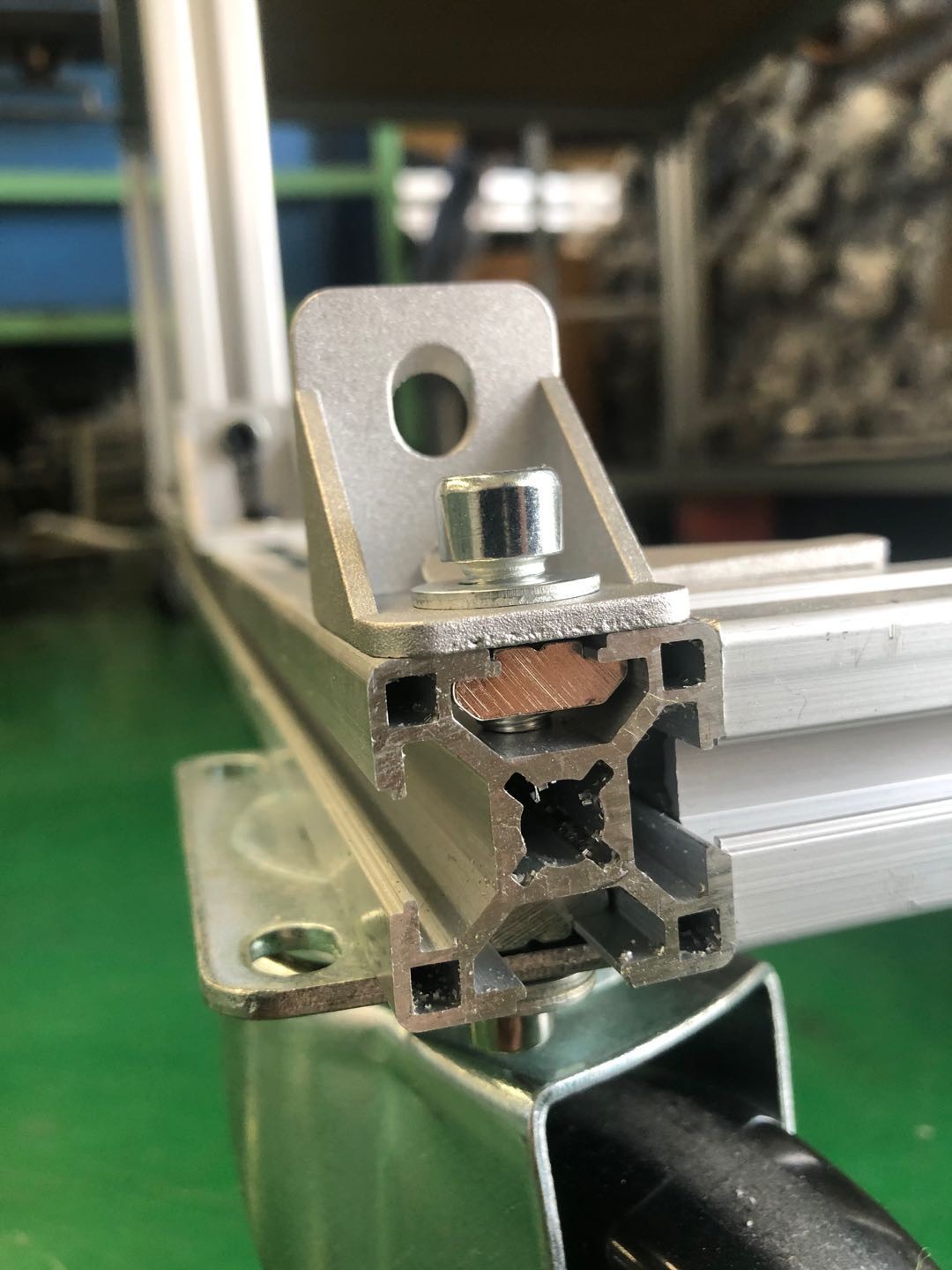

D Bracket AL-3060-1 Aluminium Construction Profiles ADC-12 For Pipe Rack 0D Bracket AL-3060-1 Aluminium Construction Profiles ADC-12 For Pipe Rack 1
 D Bracket AL-3060-1 Aluminium Construction Profiles ADC-12 For Pipe Rack 2D Bracket AL-3060-1 Aluminium Construction Profiles ADC-12 For Pipe Rack 3


About Package

1)Aluminum Joint and other accessory ,by carton and pallet

D Bracket AL-3060-1 Aluminium Construction Profiles ADC-12 For Pipe Rack 4

D Bracket AL-3060-1 Aluminium Construction Profiles ADC-12 For Pipe Rack 5

2) aluminum pipe ,by Stretch Film / Woven bag / Wooden Case

D Bracket AL-3060-1 Aluminium Construction Profiles ADC-12 For Pipe Rack 6
D Bracket AL-3060-1 Aluminium Construction Profiles ADC-12 For Pipe Rack 7


About JINGJI (TOP-KING)



In 2004, JINGJI (TOP-KING) Technology was established and located in shenzhen ,mainly manufacturer for design ,production,and sale of industrial storage equipment .after 10 years ,JINGJI(TOP-KING)have won various honorary titles like "ISO9001-2008""China green environmental protection products ""China famous brand""Creative Award" etc.



Today ,JINGJI (TOP-KING) contains the technical center, a state-of-the-art pipe mill, plastic component manufacturing, warehouse, structure assembly facility, and sales offices.



JINGJI(TOP-KING) is the original adaptive material handling system for companies looking to implement continuous improvement and lean manufacturing programs. Our broad line of Aluminum pipe and joints ,PE coated steel pipes, fittings and accessories is designed to let you custom build workstations, flow racks, carts, AGVs and other material handling structures that can easily be changed again and again to match your manufacturing needs. .



The myriad structure drawings in our database can help quick-start your program. We don’t just sell you a product, we’re there to assist in helping make your operation lean and improve your plant’s environment.



D Bracket AL-3060-1 Aluminium Construction Profiles ADC-12 For Pipe Rack 8

D Bracket AL-3060-1 Aluminium Construction Profiles ADC-12 For Pipe Rack 9
