|Place of Origin:||Shenzhen ,China|
|Minimum Order Quantity:||500 set|
|Packaging Details:||300 pieces packing together in a 300*250*152 mm carton|
|Delivery Time:||5-7 working days with PO and deposit|
|Supply Ability:||10000 pieces per day|
|Material:||2.5mm Thickness SPCC||Color:||Black / Silvery|
|Name:||Tee Pipe Fittings||Usge:||Tee Type Connecting For Racking System|
|Shape:||Pipe Clamp||Head Code:||Round|
|HS Code:||7307990000||Weight:||62 G /pcs|
|Package:||300 Piece Per Carton||Package Carton Size:||360mm*300mm*250mm|
|Diameter:||28mm||Combination:||One Piece H-12,one Plastic Ring And One Piece H-1 Fixed With One Set M6*10 Bolt&nut To Be HJ-13|

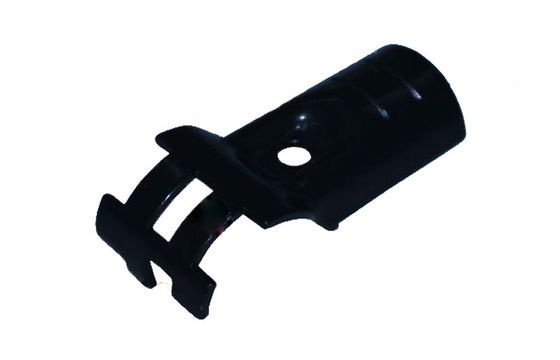

Black ABS Coated Metal Pipe Joints For Storage Rack / Warehouse Rack System
Pipe rack metal joints are suitable for all kinds of model and size racking system .Pipe rack joints and plastic coated pipe can resolve personal design plans and make the idea
come true . For example: workbench, storage rack, Hand cart,production line etc.
1.Pipe joints and lean pipes fixed with bolts and nuts operation with a M6 spanner.
Simple and easy operation
2.Pipe rack products which assemble by pipe joints and ABS coated pipe without any welding part .
Can be reused and dismantle easily.
Can be random jointed with the pipe rack system.
3. Can be installed roller track and pulley to realize the FIFO(first in first out) system.
4. All of pipe rack products can be adjusted, thus it is convenient.
5.Load capacity: 200-300kgs
* Production base:Shenzhen Jingji Co., Ltd
* Model number: H-12
* Brand name: JINGYU
* Term of Trade: EXW / FOB / CIF
2.5mm Thickness SPCC steel
2. Surface treatment :
Surface electrophoresis treatment(Black one), Zinc/ Nickel /Chrome
3. production procedure:
SPCC Steel→ Cut → Model →Stamping →Polish→ Electrophoresis

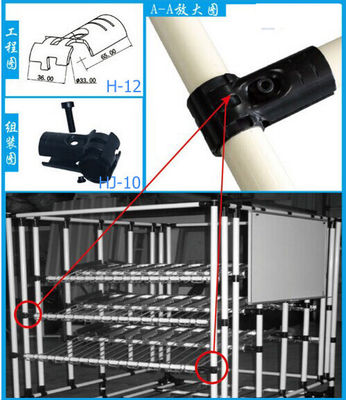

4. Main Combination:
one piece of H-12 pipe joints,one piece H-1,one piece plastic ring and one set of M6*25 bolt & nut can be assemble one set of
metal pipe joint HJ-10(H-12*1+H-1*1+M6*25*1)
62 g/ pcs
6. Item No.
Product Description :
1. Metal Pipe Joint Manufacturing standard:
Using international materials production under strict Jingji quality control and inspection.
Ensure the quality
2. Pipe Joint Production process:
Consistent with the national standard thickness 2.5mm (excluding special type products) SPCC
material. We emphasize on the functions of each product. Cutting corners in manufacturing
process is not allowed.
3. Design requirements:
The standard is in accordance with the most favorable specification in the industry. Emphasizes
on the safety of people, articles, and equipment prolong the service life.
In addition to the regular standard gauge testing, a special gauge testing is added for every
process to ensure the functional indices reach the standard.
coated pipe joint for storage rack system|warehouse pipe joint for rack|metal joint for warehouse
Application of pipe joints and plastic coated pipes
pipes and joints system is both versatile and cost effective as all pipes and joints are reusable,enabling
constructions to be easily reconfigured or products recycled to create equipment to suit different applications.
