SMT Series PCB Conveyor Machine with 900±20mm Hight and 245Kg Maximum Load Capacity

Product Details:
Place of Origin:	Shenzhen ,China
Brand Name:	TOP-KING
Certification:	ISO9001:2008;RoHS
Model Number:	CHT-CBL-400S
Payment & Shipping Terms:
Minimum Order Quantity:	Five channels
Price:	Negotiation
Packaging Details:	Film at inner,10 pcs one bundle,packing in woven bag.
Delivery Time:	15-20 working day after received the deposit(The actual situation according to the quantity)
Payment Terms:	T/T
Supply Ability:	1000 channels per day

Contact Now

Detail Information
Product Description

Detail Information
PCB Size(L*W):	80x50-510x350mm	PCB Direction:	L-R/R-L
PCB Hight:	900±20mm	Air Supplly:	4-6Kgf/cm²
Weight:	245Kg	Boundary Dimension (L%22W%22H):	600x950x1860mm
Highlight:	245Kg PCB Conveyor Machine , SMT Series PCB Conveyor Machine , 900±20mm PCB Conveyor Machine

Product Description

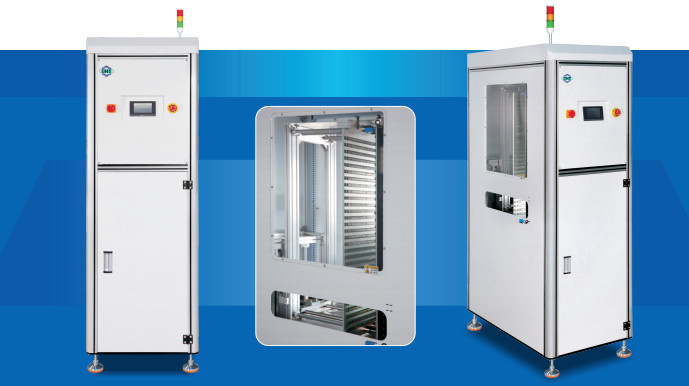

SMT SERIES PCB CONVEYOR MACHINE/ Cache The Cache Machine

Features

HMI operation system interface control operation, function switching which are simple and easy to understand

PLC control system, muliple electrical circut protection design which are security and stability

There are 30 pitches available for temporary storage

Integrate multiple functions, first-in, first-out, advanced-last-out, and direct-through

Servo positioning system, high positioning accuracy, fast lifting speed, high production efficiency,and large amount of storage

Standard SMEMA.sicnal communication

Technical Parameters

Description	Can be used to buffer between SMT machines/Can be used to automatically collect AOl inspection NO/OK circuit boards to differend bins
Board capacity	30pcs or specified by customer
Maximum load	1.5kg/PCB
Cycle time	About 12 Seconds
Step selection	20,40mm or specified by customer
Power supply and electric load	220V(AC,SP)850VA max
Board thickness	Min,0.6mm

specification parameter

Ten name of the	CHT350	CHT-460
PCB Size(L*W)	80x50-510x350mm	80x50-510x460mm
Weight	245Kg	265Kg
Boundary dimension (LWH)	600x950x1860mm	600x1060x1860mm
