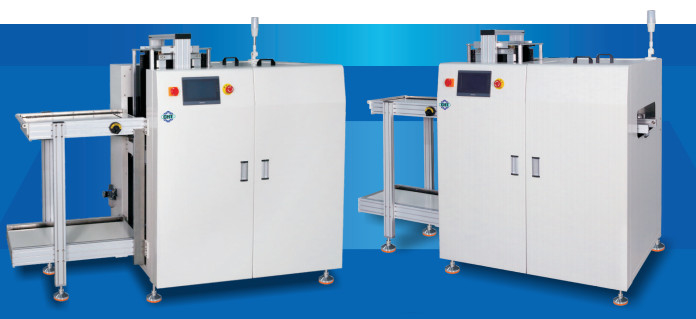

SMT Series PCB Conveyor Machine with Vacuum Bare Loader PCB Size LW 8050-330x250mm PCB Hight 900±20mm

Product Details:
Place of Origin:	Shenzhen ,China
Brand Name:	TOP-KING
Certification:	ISO9001:2008;RoHS
Model Number:	CHT-CLVD-S303S
Payment & Shipping Terms:
Minimum Order Quantity:	Five channels
Price:	Negotiation
Packaging Details:	Film at inner,10 pcs one bundle,packing in woven bag.
Delivery Time:	15-20 working day after received the deposit(The actual situation according to the quantity)
Payment Terms:	T/T
Supply Ability:	1000 channels per day

Contact Now

Detail Information
Product Description

Detail Information
PCB Size(L*W):	80*50-330x250mm	PCB Direction:	L-RIR-L
PCB Hight:	900±20mm	Weight:	225kg
Material Box Sizes(LWH):	355x320x565mm	Boundary Dimension (L%22W%22H):	1880x880x1220mm
Highlight:	Vacuum Bare Loader PCB Conveyor Machine , 330x250mm PCB Conveyor Machine , 900±20mm PCB Conveyor Machine

Product Description

SMT SERIES PCB CONVEYOR MACHINE/ Vacuum Bare Loader

Features

Top board device of SMT production line circuit board

PLC control, color HMl operation system

Stepping motor push plate structure. pushing plate speed is adjustable

Auxiliary positioning braking syslem, accurate positioning, fast lifting speed and high production efficiency

PLC control system, multiple electrical circuit protection design which are security and stability

Sound and light alarm system, abnormal information text prompts, easy operation and maintenance

Standard SMEMA signal communication

Standard two upper modes are especially suitable for production of single-line mode with double panel

Technical Parameters

Description	Used to automatically send circuit boards to the production line
No,of magazine	Upper converyor; 1nos, Lower converyor:2nos,
Time for feed PCBs	Approx,6 seconds or specified by customer
Magazine change oner time	Appron,35 secands of specified by customer
Indexing pitch	10,20.30,40 mm pitch or specified by customer
Power supply and electric load	220V(AC SP)600VA max
Air pressure and air fllow	4-6bar, Up to 0.2 /min
Thickness of PBCs	0.6mm min

specification parameter

Ten name of the	S-CHT	M-CHT
PCB Size(L*W)	80*50-330x250mm	80x50-460x330mm
Material box sizes (LWH)	355x320x565mm	460x400x565mm
Weight	225Kg	255Kg
Boundary dimensinn (L*W"H)	1880x880x1220mm	2125x975x1220mm

Our Company:

Shenzhen Jingji Technology Co., Ltd. Is a professional manufactuer for design, production and sale of industrial storage equipment, flexible production equipment, automation equipment and other kinds of instruments and gauges. beside, the company distributes anti-static peripherals.
We provide a comprehensive logistics plan in order to avoid waste of resources in course of purchase and supply chain by manufactures. It is our ultimate goal to provide all customers with full service, to meet exact demands of customers. To improve product quality, and to enhance customer satisfaction storage annd logistics as in automation industy.

Our service
If you have any questions or needs,just please feel free to contact us any time,
