Home ProductsSMT PCB ConveyorSMT Series PCB Conveyor Machine/Dual Magazine Unloader Boundary dimension 1475x1475x1220mm PCB Hight 900±20mm
SMT Series PCB Conveyor Machine/Dual Magazine Unloader Boundary dimension 1475x1475x1220mm PCB Hight 900±20mm
SMT Series PCB Conveyor Machine/Dual Magazine Unloader Boundary dimension 1475x1475x1220mm PCB Hight 900±20mm

SMT Series PCB Conveyor Machine/Dual Magazine Unloader Boundary dimension 1475x1475x1220mm PCB Hight 900±20mm

Product Details:
Place of Origin: Shenzhen ,China
Brand Name: TOP-KING
Certification: ISO9001:2008;RoHS
Model Number: CHT-CWUD-303SX
Payment & Shipping Terms:
Minimum Order Quantity: Five channels
Price: Negotiation
Packaging Details: Film at inner,10 pcs one bundle,packing in woven bag.
Delivery Time: 15-20 working day after received the deposit(The actual situation according to the quantity)
Payment Terms: T/T
Supply Ability: 1000 channels per day
Contact Now
  • Detail Information
  • Product Description

Detail Information
PCB Size(L*W): 80*50-330x250mm PCB Direction: L-RIR-L
PCB Hight: 900±20mm Weight: 225kg
Material Box Sizes(L*W*H): 355x320x565mm Boundary Dimension (L%22W%22H): 1475x1475x1220mm
Highlight:

SMT Series PCB Conveyor Machine

,

Dual Magazine Unloader PCB Conveyor Machine

,

Boundary dimension PCB Conveyor Machine

Product Description

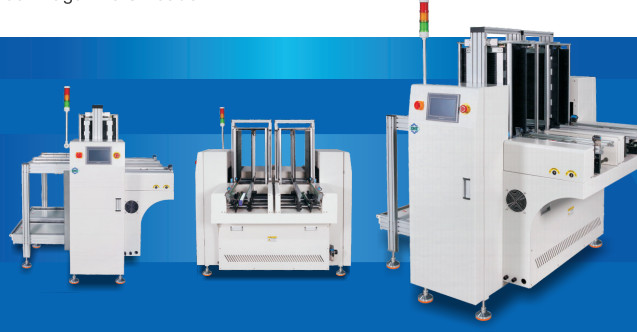

SMT SERIES PCB CONVEYOR MACHINE/Dual Magazine Unloader



Features



Top board device of SMT production line circuit board

PLC control, color HMl operation system

Stepping motor push plate structure. pushing plate speed is adjustable

Auxiliary positioning braking syslem, accurate positioning, fast lifting speed and high production efficiency

PLC control system, multiple electrical circuit protection design which are security and stability

Sound and light alarm system, abnormal information text prompts, easy operation and maintenance

Standard SMEMA signal communication

Standard multiple pickup modes



Technical Parameters



Description For  automated production line collection circuit board operations

No,of magazine

 Upper converyor; 1nos, Lower converyor:1nos,
Time for feed PCBs Approx,6 seconds or specified by customer
Magazine change oner time

Appron,35 secands of specified by customer
Indexing pitch 10,20.30,40 mm pitch or specified by customer
Power supply and electric load 220V(AC SP)800VA max
Air pressure and air flow 4-6bar, Up to 0.2 /min
Thickness of PBCs 0.6mm min



specification parameter

Ten name of the S-CHT M-CHT
PCB Size(L*W) 80*50-330x250mm 80x50-460x330mm
Material box sizes (L*W*H) 355x320x565mm 460x400x565mm
Weight 255Kg 285Kg
Boundary dimensinn (L*W"H) 1475x1475x1220mm 1665x1635x1220mm







Our Company:



Shenzhen Jingji Technology Co., Ltd. Is a professional manufactuer for design, production and sale of industrial storage equipment, flexible production equipment, automation equipment and other kinds of instruments and gauges. beside, the company distributes anti-static peripherals.
We provide a comprehensive logistics plan in order to avoid waste of resources in course of purchase and supply chain by manufactures. It is our ultimate goal to provide all customers with full service, to meet exact demands of customers. To improve product quality, and to enhance customer satisfaction storage annd logistics as in automation industy.
