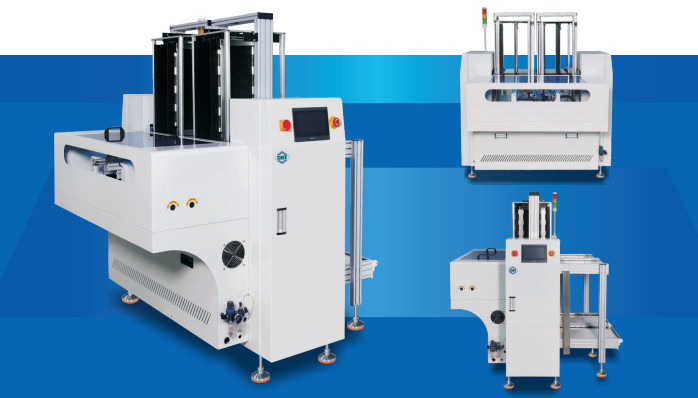

900±20mm PCB Conveyor Machine with Monorail NG/OK Plate Collector and PCB Size 80*50-330x250mm

Product Details:
Place of Origin:	Shenzhen ,China
Brand Name:	TOP-KING
Certification:	ISO9001:2008;RoHS
Model Number:	CHT-CWUD-303NK
Payment & Shipping Terms:
Minimum Order Quantity:	Five channels
Price:	Negotiation
Packaging Details:	Film at inner,10 pcs one bundle,packing in woven bag.
Delivery Time:	15-20 working day after received the deposit(The actual situation according to the quantity)
Payment Terms:	T/T
Supply Ability:	1000 channels per day

Contact Now

Detail Information
Product Description

Detail Information
PCB Size(L*W):	80*50-330x250mm	PCB Direction:	L-RIR-L
PCB Hight:	900±20mm	PCB Time:	8-15S/pcs
Weight:	255kg	Material Box Sizes(LWH):	355x320x565mm
Air Supplly:	4-6Kgf/cm²	Boundary Dimension (L%22W%22H):	1500x1475x1220mm
Highlight:	Monorail PCB Conveyor Machine , PCB Conveyor Machine

Product Description

SMT SERIES PCB CONVEYOR MACHINE/Monorail NG/OK Plate Collector

Features

HMI operation system. Function switching. Easy to understand

PLC contral system, multiple electrical circuit protection design which are security and stablity

It is mainly used in the back of AOl or other detection equipment of SMT production line, and is automatically stored in frames according to the NG/OK signal given by the detection equipment

Servo positioning system, precise positioning, fast lifting speed and high production efficiency

Standard SMEMA signal communication

Technical Parameters

Description	Can be used for NG screening after SMT inspection equipment Can be used to automatically collect. AOI inspection NG/OK circuit boards to different bins
Power supply and electric load	Single-phase 220V AC Up to 120VA

specification parameter

Ten name of the	S-CHT	M-CHT
PCB Size(L*W)	80*50-330x250mm	80x50-460x330mm
Material box sizes (LWH)	355x320*565mm	460x400x565mm
Weight	255Kg	285Kg
Boundary dimensinn (L*W"H)	1500x1475x1220mm	1710x1635x1220mm
