Micro Trigger PCB Conveyor Machine for L-R/R-L Direction and 80x50-510x350mm PCB Size

Product Details:
Place of Origin:	Shenzhen ,China
Brand Name:	TOP-KING
Certification:	ISO9001:2008;RoHS
Model Number:	CHT-CXS-X303C
Payment & Shipping Terms:
Minimum Order Quantity:	Five channels
Price:	Negotiation
Packaging Details:	Film at inner,10 pcs one bundle,packing in woven bag.
Delivery Time:	15-20 working day after received the deposit(The actual situation according to the quantity)
Payment Terms:	T/T
Supply Ability:	1000 channels per day

Contact Now

Detail Information
Product Description

Detail Information
PCB Size(L*W):	80x50-510x350mm	PCB Direction:	L-R/R-L
Weight:	225kg	PCB Hight:	900±20mm
Boundary Dimension (L%22W%22H):	600x590x1500mm
Highlight:	L-R/R-L PCB Conveyor Machine , 80x50-510x350mm PCB Conveyor Machine , Micro Trigger PCB Conveyor Machine

Product Description

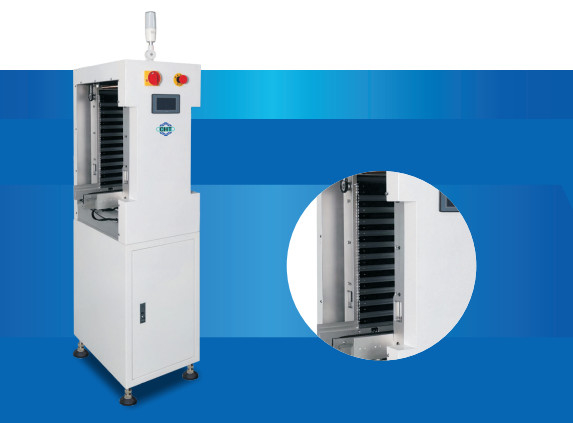

SMT SERIES PCB CONVEYOR MACHINE/ Micro Trigger

Features

SMT production line circuit board upper board device

PLC control, color HMl operation system

Stepping motor push plate structure, pushing plate speed is adjustable

Auxiliary positioning braking system, accurate positioning, fast lifting speed and high production efficiency

Sound and light alarm system, abnormal information text prompts, easy operation and maintenance

Standard SMEMA sianal communication

Technical Parameters

Description	Used to automatically send circuit boards to the production line
Power supply and electric load	220V(AC,SP)800VA max
Time for feed PCBs	Approx.6seconds or specified by customer
Board thickness	Minimum 0.6mm

Technical Parameters

Ten name of the	CHT-350	CHT-460
PCB Size(L*W)	80x50-510x350mm	80x50-510x460mm
Welght	225Kg	245Kg
Boundary dimension(LWH)	600x590x1500mm	600x700x1500mm
