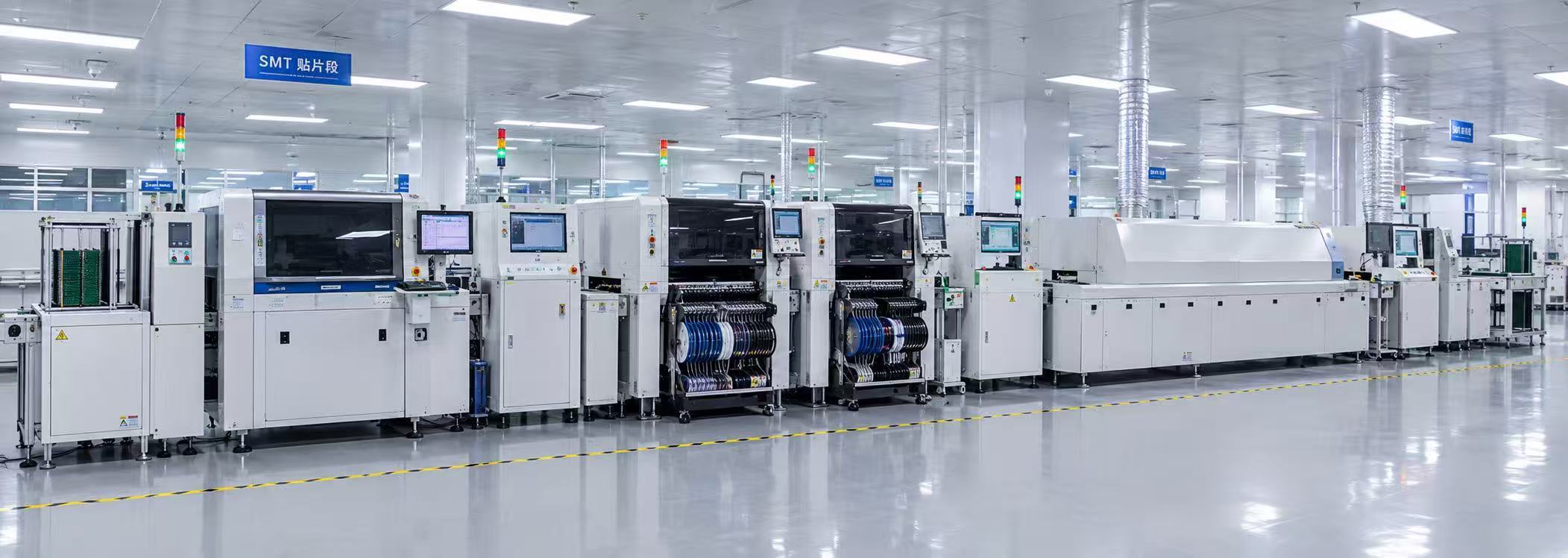

Versatile SMT PCB Conveyor capable of handling various PCB sizes and weights in electronic assembly lines

DIP Production Line – Product Introduction

Automatic DIP Production Line for PCB Assembly

Our automatic DIP production line is designed for efficient and reliable through-hole PCB assembly. It integrates PCB loading, component insertion, soldering, cooling, inspection and unloading into a complete production system.

The production line uses automatic conveyors to connect each process, helping reduce manual handling and improve production efficiency, soldering consistency and product quality.

Main Equipment:

• PCB Loading Machine
• Component Insertion Machine
• Wave Soldering Machine
• Cooling Conveyor
• Visual Inspection System
• PCB Unloading Machine
• Automatic Conveyor System

Key Features:

• Complete DIP production line solution
• Stable and efficient PCB transfer
• Suitable for through-hole PCB assembly
• Consistent soldering performance
• Reduced manual operation
• Flexible production line configuration
• Suitable for different PCB sizes and production requirements
• Customized solutions available

We can provide complete DIP production line solutions according to your PCB specifications, production capacity, factory layout and production requirements.

Contact us for equipment specifications, quotation and customized production line solutions.
