Metal Anti static Reinforcing Parallel Joint Double Fitting For Flow Racks HJ-11D

Metal Anti-static Reinforcing Parallel Joint Double Fitting For Flow Racks HJ-11D

Description:

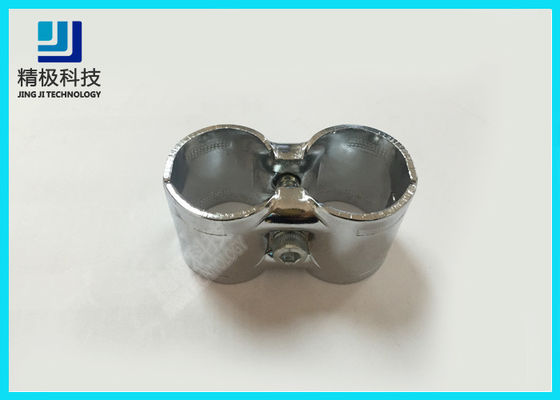

The HJ-11D is a metal anti-static joint used to reinforce the structural capacity of two pipes. This connector connects two pipes together and increases the structural capability of the pipe that supports a charge by more than 68%. At Flexpipe, this is often used in the assembly of tables and workstations. This reinforcement technique is recommended if you want to place considerable weight on a large working surface. This joint is also used for general reinforcement purposes.

To make an HJ-11D, you need to assemble two H-9D with one M6-25 bolt and one M6 nut. You can duplicate the effect of this connector by connecting multiple pipes in a series. If you plan to use this joint to increase the structural capacity of your structure, we recommend that you first check out the technical information for the Flexpipe system and our design tutorial in the learning section.

Since the HJ-11D is so important in the conception of heavy duty structures.


Combination:
one HJ-11D is combine with 2 pcs H-9D and 1 set of M6*25 Silvery bolt and nut
 It is Used for two fitting pipe joints, mainly used to strengthen the structure.
Chroming Meta Joints with Black anti-static PE pipe can assemble into ESD workbench or pipe rack system .



HOW TO INSTALL

1- Make sure you have the following parts:
2 H-9D
1 M6-25
1 M6
2 28mm pipes of your choice
1 spanner  5mm tip

1- Take two connectors H-9D and group them around the pipes PE1 and PE2.
2-Take a M6-25 bolt and a M6 nut and insert them into the corresponding openings. Make sure to put the bolt on the more accessible side.
3- Tighten completely the M6-25 bolt and M6 nut together until the HJ-11D attached firmly to both pipes . A force of 9.8 Nm is recommended for this step.

Features:
1. Flexible and creative: simple structure, and your creativity can be used.
3. Flexibility: modular structure, easy to restructure, make you always have fresh feeling.
4. Safety: flexible pipe plastic surface to reduce the risk of injury to workers in the workplace
5. Environmental protection: pollution-free production, the components are completely recyclable, and eliminate waste, which is completely in line with the international environmental protection concept
6. Body mechanics: a single M6 hexagon wrench can complete the installation process.The concept of multi-purpose is used to give full play to economic benefits.

Application:

Flow Rack

Holds extensive supply of containers for feeding production area with ample return lanes for holding emptied containers.

Angled Flow Rack

Lanes slope lengthwise allowing containers to flow from load to picking end while second lane tilts containers for easy picking and viewing contents.

Supermarket Flow Racks

Wth serveral levels are connected with brackets to maintain spacing and alignment while high-level density provides efficient order picking.

Pipe & Joint System

Provides rigidity and strength for industrial applications without the need for cross bracing while conveying either boxes or plastic totes.

Why choose our products?
1) We are direct manufcture of pipe rack system, we produce all series of material for pipe rack system, such as metal joint, plastic joint, lean pipe, roller track, accessory for pipe rack system.
2) We produce this serises products metal pipe joint for more than 10 years, the earliesr factory to produce pipe rack system in Cina.

Our Company
Shenzhen Jingji Technology Co., Ltd.(TOP-KING HK LIMITED ) Is a professional manufactuer for design, production and sale of industrial storage equipment, flexible production equipment, automation equipment and other kinds of instruments and gauges. beside, the company distributes anti-static peripherals.
We provide a comprehensive logistics plan in order to avoid waste of resources in course of purchase and supply chain by manufactures. It is our ultimate goal to provide all customers with full service, to meet exact demands of customers. To improve product quality, and to enhance customer satisfaction storage annd logistics as in automation industy.We are the Direct Material Manufacturer and supplier of pipe and joint system, which is ergonomic and dynamic.
