|Name:||Metal Anti-static Tee Hinge Joint Set||Material:||CRS Cold Rolled Steel|
|CCompatible Joint Systems:||Flexpipe, Creform||Recyclable:||Yes|
|Common Uses:||Pivot, Perpendicular Tubes Hinge||Application::||Workbench, Storage Shelf, Revolving Car, Display Rack,etc|
chrome pipe fittings,
chrome shower pipe fittings
Revolute Joint Silvery Pipe Fitting Chorming Treatment Anti-static HJ-10D

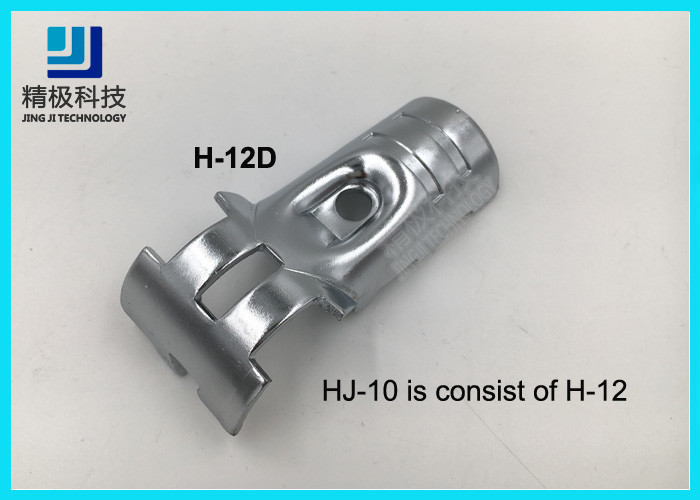

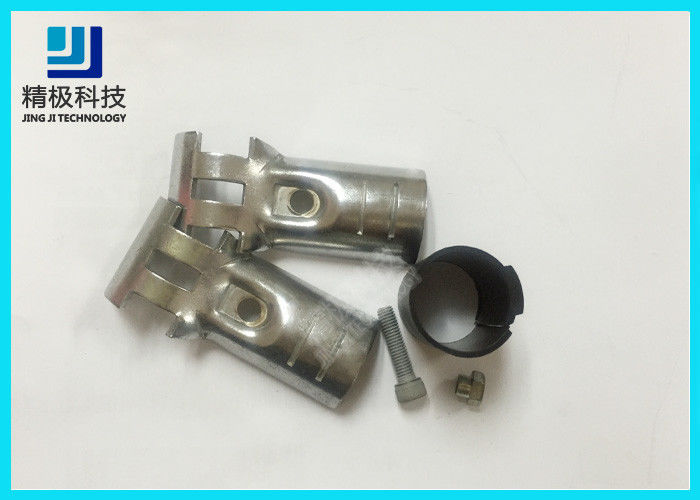

|Combination:||HJ-10D contains 2 pcs H-12D and 2 set of M6*25 Silvery|
CRS Cold Rolled Steel
Surface treatment :

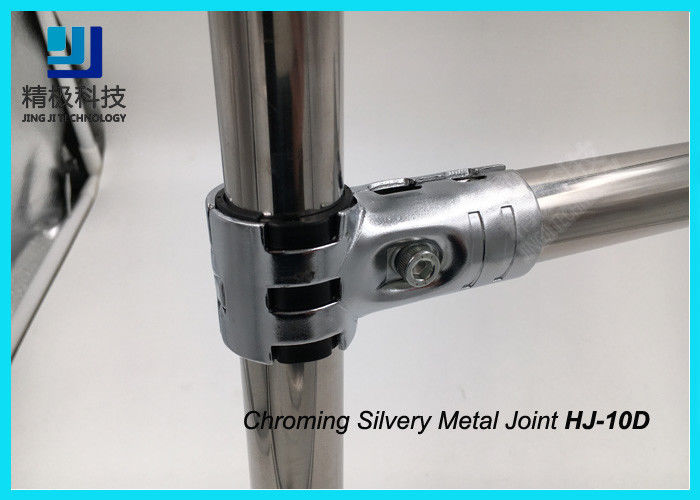

The HJ-10D is a hinge anti-static connector that allows a pipe to rotate 360 degrees around another perpendicular pipe. This feature enables the creation of a multitude of rotating modules on Flexpipe structures. We use this hinge joint at Flexpipe to build doors, movable separations, and folding shelves.
If you don't use a stopper on any rotating pipe, you can also slide the fitting onto this pipe and create different setups for separations. If you need to prevent sliding, be sure to take a look at the tips and tricks section of this product page.
This hinge will give you the option of adding additional working surfaces when necessary or even making entire folding structures like folding tables. To make an HJ-10D, you need to assemble two H-12D around an Plastic HINGE with one M6-25 bolt and one M6 nut.
Designing Flexpipe structures with the HJ-10d can be tricky if you have not built a structure with a pipe and joint system before. We recommend that you visit our photo section to find ideas on how best to make use of this connector.
one HJ-10D is combine with 2 pcs H-12D and 1 set of M6*25 Silvery bolt and nut

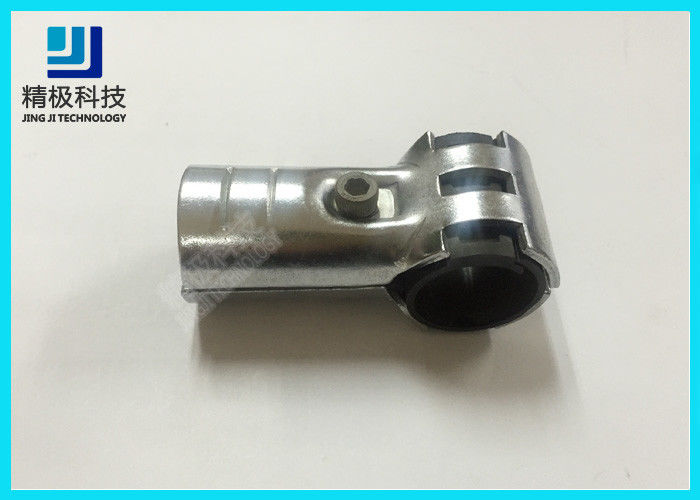

It is Used fo two composite pipes to connect to a relatively rotational T structure
Chroming Meta Joints with Black anti-static PE pipe can assemble into ESD workbench or pipe rack system .
How To Install
1- Make sure you have the following parts:
2 28mm pipes of your choice
1 spanner with 5 mm tip
2- Take a plastic Hinge and press it on the pipe PE1 until the hinge is fix.
3-Take two connectors H-12D and group them around the Plastic HINGE.
4-Take a M6-25 bolt and a M6 nut and insert them into the corresponding openings. Make sure to put the bolt on the more accessible side.
5-Tighten the M6-25 bolt and nut M6 together a few threads , but no more.
6- Insert the PE2 pipe within the HJ-10D between the first and second guides as shown in the plan .
7- Tighten completely the M6-25 bolt and M6 nut together until the HJ- 10D attached firmly to the plastic HINGE and the pipe PE2 . A force of 9.8 Nm is recommended for this step.
1. The flexible pipe is composed of high-quality steel tube with high quality surface treatment.
2. The outer surface is composed of special plastic layer and inner surface coating.
3. The product has the advantages of beautiful appearance, wear-resisting, bright luster and pollution-free.
4. It is an ideal substitute for stainless steel products.
5. Surface special treatment without acute Angle, completely avoid causing the human body, accessories and accessories, and other items between the stabbing
