AL-1-S Cast Aluminum Pipe Fittings Inner Tubing Joints High Esthetic Value Without Glaring

Inner Aluminum Joint for 1.2mm/1.7mm Thickness Aluminum Pipe AL-1-S

Description :

It is the most upgraded inner joints of AL-1 series ,with the groove on the up part of joints

Features:

1. All steel joints, mounting brackets, accessories, etc. can be perfectly integrated with the new aluminum tube shelf system.
2. Aluminium pipe racking system can be well integrated into the conventional pipe racking system
3. High esthetic value without glaring
4. Inner type aluminium joint end flush with the aluminium pipe, which is a direct lie-on possibility for panel
5. Inner type aluminium joint end flush with the aluminium pipe, which is a direct lie-on possibility for panel
6. High strength to weight ratio

Application

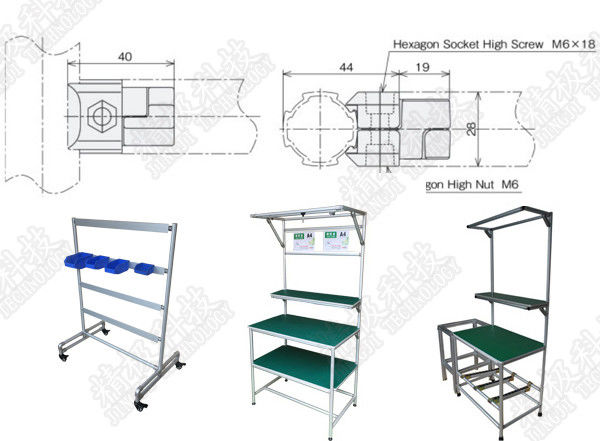

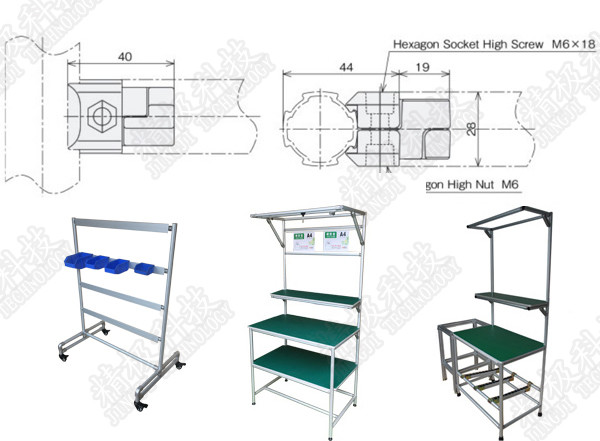

• WORK TABLES are used to create additional Creform-made material handling, storage and convenience structures that help implement lean manufacturing processes.
• Stand-Up Workstation for fulfilling orders of packaged parts in cell or shipping department accommodates two associates and supplies while also providing expandability.
• Pipe & Joint System provides rigidity and strength for industrial applications without the need for cross bracing while conveying either boxes or plastic totes.
• Cradle Carts with an open deck design is easy to load and unload long items and side rails prevent roll off while 6-caster design provides good maneuverability.
• ESD Cart and Assembly Station is designed for handling electronic processors, chips, memory boards and CPUs during assembly and transport.
• Picking Carts feature three angled shelves on each side for holding either totes or boxes and cant toward the outside providing good load/unload access.
• Flow Rack built with 42mm pipe and four vertical frames use single angle braces for stability using 28mm pipe and 42mm/28mm transition joints.
