|Place of Origin:||Shenzhen ,China|
|Minimum Order Quantity:||5 PCS|
|Packaging Details:||Accessories packed separately|
|Delivery Time:||Within 7 working days after received deposit.|
|Supply Ability:||50 pcs per day|
industrial shelving units,
pipe racking system

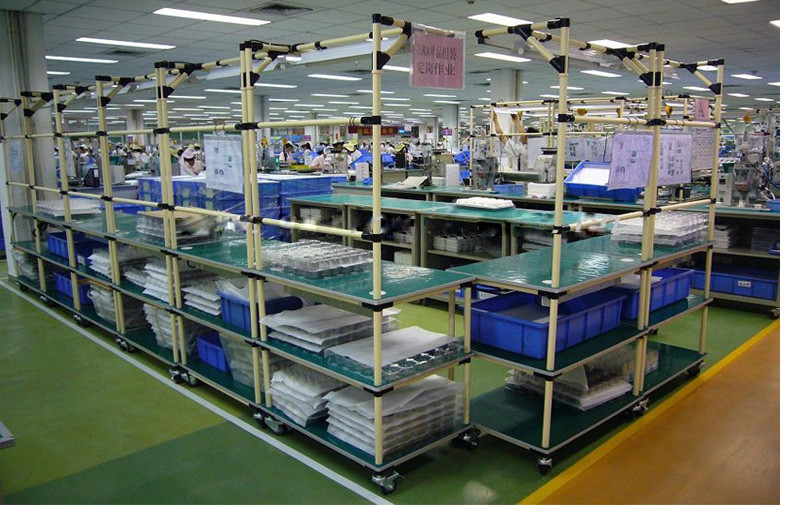

Heavy Duty Steel Pipe Rack In Electronic Industrial , Vertical Pipe Racking System
1. Materials: ABS coated steel pipe,2.5mm thickness balck pipe joints, flexible pipe in 1.5mm
thickness.Roller Track and roller Track support.
2. Modular design product, be assembled by pipe joints and fixed M6*25 bolts and nuts, without
welding.Simple and easy operation.
3. Can be adjusted the size to meet your need.Customers can adjust the height or the distance
between the layers,just need to loosen the bolt and nut and move the ABS coated pipe and
pipe joints to the suitable place and tighten the screw nut.That is OK.
4. We accept custom order, OEM & ODM.Just send the drawing of your pipe rack products.
Or your size ,load capacity .Then we will show the design for you.
5. Easy handling of Raw material and assembled product as the raw material are made up of light Components.
6. Assembling requires minimum tools and no special tools are required.
1. Plastic Coated Pipe and it’s metal joints could be made up of several kinds of products as
we please by using the pipes and flexible connecting parts. We can assembly many kinds of
pipe racking products, Such as Pipe Racking , Production Line, working station and other pipe
racks system what you want to do.
2. This flow type pipe racking is constructed with lean plastic coated pipe and different type
metal joints.Besides,This type pipe racks also with the pulley and roller track.It is convenient
to store and take goods.Using the FIFO(first in first out) model. The pipe rack system is widely
used inauto industry, home appliances, light industry and electronic industry,etc.
3. The feature of flow type pipe racking:
A. Between the pipes connecting by the metal joints,which fixed with bolts and nuts without any
welding. Its easily to dismantle, structure and convenient to move
B. Using the simplest concept of producing.
C. Customers can design and assemble pipe rack system into any figure conveniently.
D. The roller track make the rack more flexible.
1. Storage of raw materials and finished goods in the warehouse.
2. Semi-finished products processing store.
3. Carton and accessories store, etc.
4. It can be adjusted, so you can design according to your actual demand.
A .The Flow Pipe Rack is made of plastic coated pipe and related accessories,between the
pipe is firmed with bolts and nuts.The pipe rack could be structured by worker who doesn’t
need special technology.
B. The roller track is connecting with plastic coated pipe by our special roller track connector
(we supply several type of pipe rack roller track connector). Firm and reliable, do not need to
welding. According to the actual situation, customer aslo can change the roller track connector.
(2) Easy to operation:
A. The pipe rack’s joints firm with bolt and nuts, no welding parts,then could easy to operation,
but a M6 spanner.Customer can transform according to your ideas
B.Eco-friendly:the pipe rack is connected by the joints,which firm with bolts and nuts ,that could
be used again. Save materials and cost
C.Safe:Plastic coated outside of the pipe ,it can protect the products and staff to be injured
after being hit by the workbench.
3.We manufacture Pipe Rack System products by your CAD drawing or requirements.
