Product Description
AL-1-S-T Aluminum Tube Fitting Upgrade Multifunctional Internal Fitting ADC-12
Description :
Aluminum pipe joint, other name is lean pipe joint, it is different from the plastic coated pipe joints and the metal pipe and joint. It's have ifferent in material and connection mode.
The most important is antirust and environmental.
This is made of aluminium alloy
The aluminum alloy pipe joints conncting the aluminum alloy pipe is grabbing the pipe wall like claws. This Aluminum alloy pipe surface through special processing there is a fixed lines, unlike the other pipe so that a smooth surface.
Lean pipe for pipe rack systems, other name is lean tube, come of toyota company, used for lean production, manufact line, warehouse, famly, office etc.

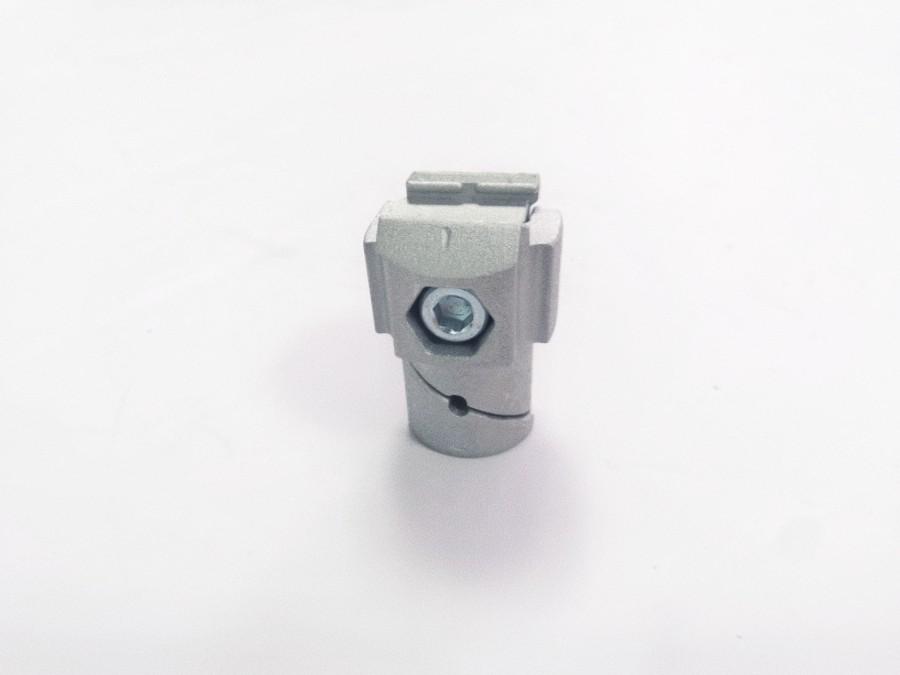

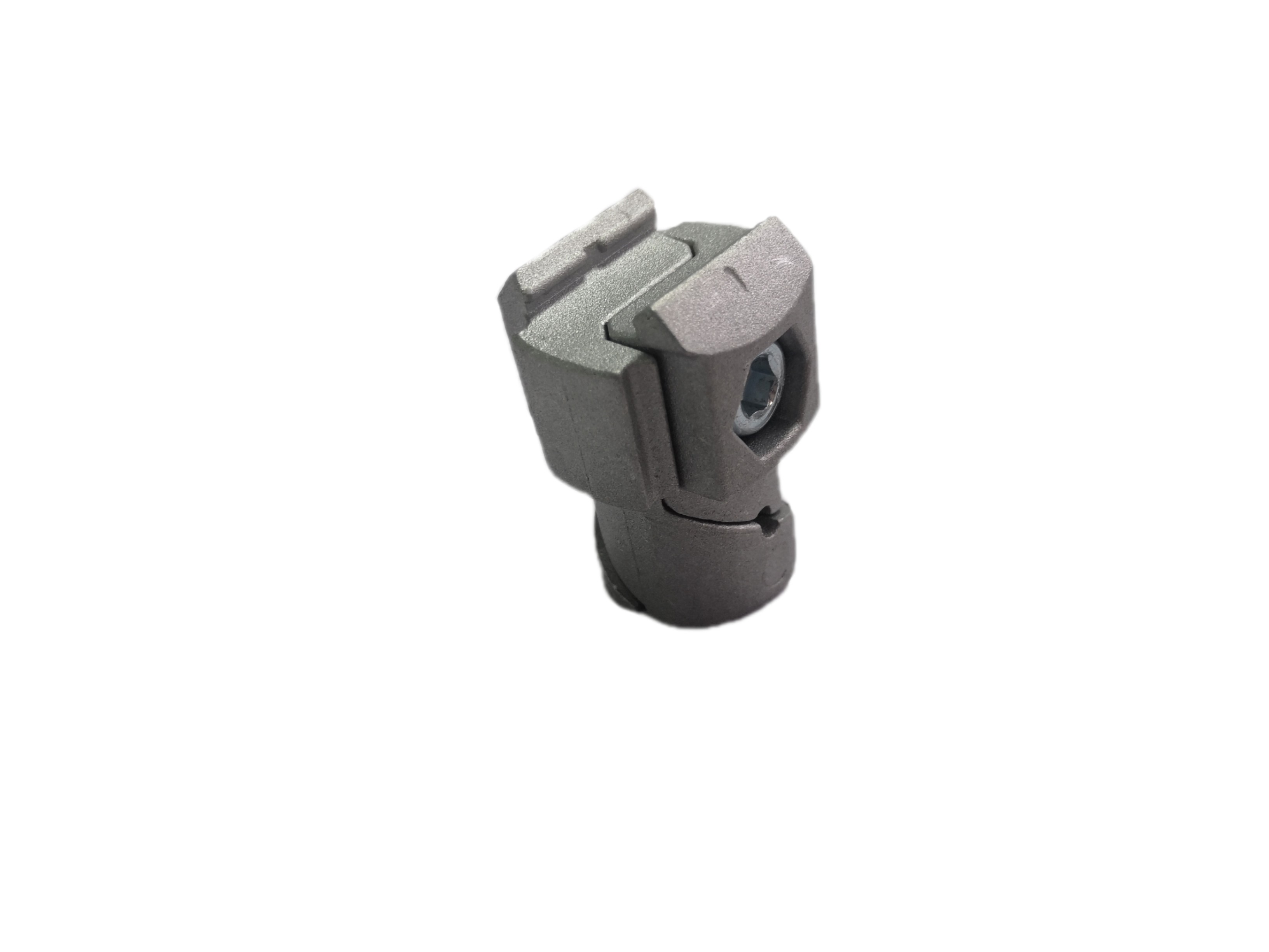

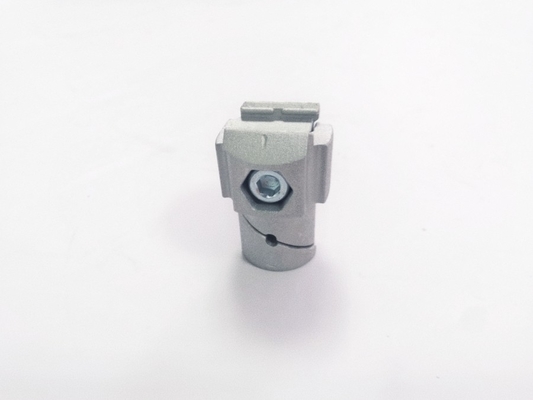

This Inner aluminum joint AL-1-S-T is for thickness 1.2 mm aluminum pipe ,OD 28mm ,
It is the most upgraded inner joints of AL-1 series ,with the groove on the up part of joints
the other joints can install directly on it ,which reduce the connect distance
Aluminum maximize the use of their products' exceptional structural capacity.
The joints are bolted together to securely connect pipes while arranging desired frameworks.
Designed to provide optimized gripping strength, they ensure the integrity and longevity of the systems you build.
| Item Ref |
AL-1-S-T |
| Material |
Aluminum +ADC-12 |
| Technology |
Die-casting |
| Surface Treatment |
White sanding /polishing |
| Weight |
0.05 g/ set |
| Package |
300 PCS / Cartons |

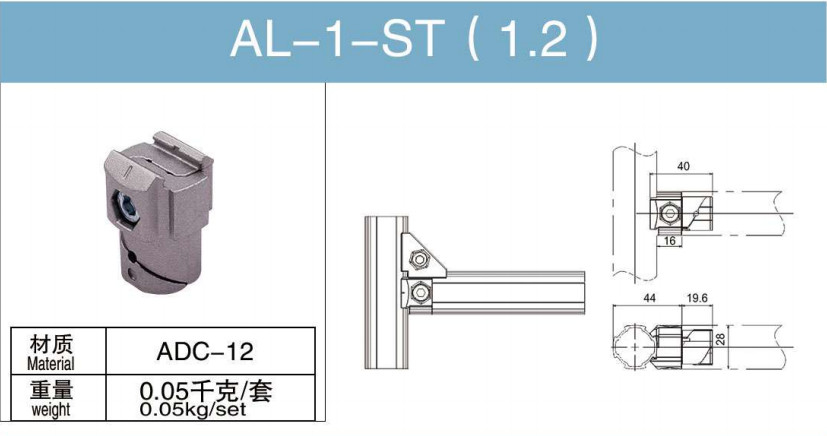

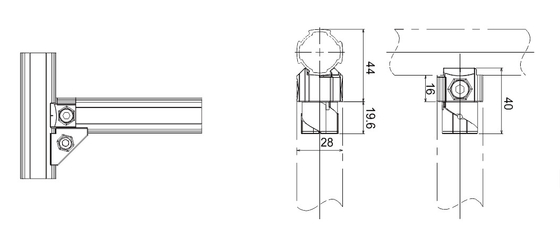

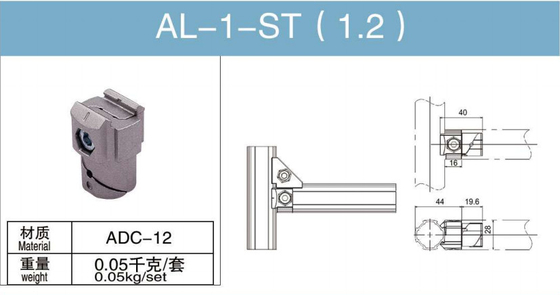

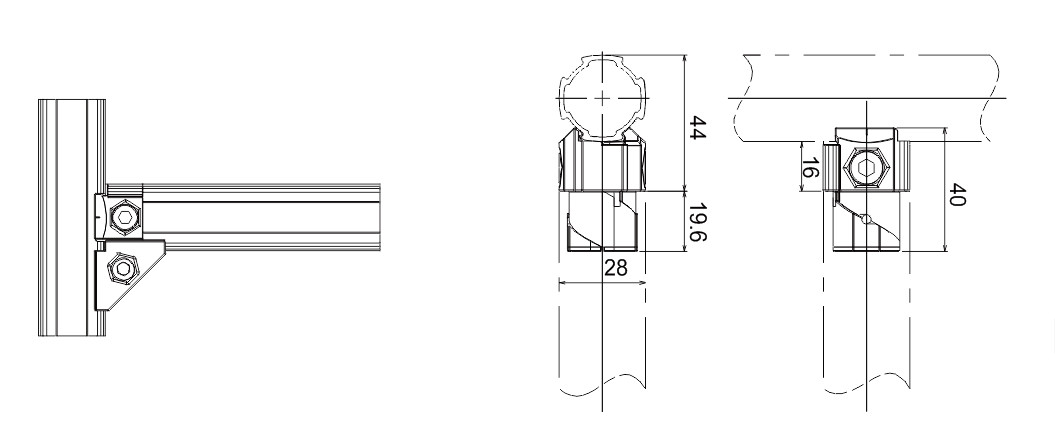

Specification of inner Aluminum Joint AL-1-S-T
Features:
- Aluminium pipe racking system can be well integrated into the conventional pipe racking system
- All Steel Joints, mounting brackets, accessories etc. can be perfectly combined with the new aluminium pipe racking system .
- Inner type aluminium joint end flush with the aluminium pipe, which is a direct lie-on possibility for panels
- High esthetic value without glaring
- High strength to weight ration
- Aluminium is environmentally friendly and retains high recycling value
Application
- Flow Rack built with 42mm pipe and four vertical frames use single angle braces for stability using 28mm pipe and 42mm/28mm transition joints.
- Pipe & Joint System provides rigidity and strength for industrial applications without the need for cross bracing while conveying either boxes or plastic totes.
- Stand-Up Workstation for fulfilling orders of packaged parts in cell or shipping department accommodates two associates and supplies while also providing expandability.
- Cradle Carts with an open deck design is easy to load and unload long items and side rails prevent roll off while 6-caster design provides good maneuverability.
- Picking Carts feature three angled shelves on each side for holding either totes or boxes and cant toward the outside providing good load/unload access.
- ESD Cart and Assembly Station is designed for handling electronic processors, chips, memory boards and CPUs during assembly and transport.
- WORK TABLES are used to create additional Creform-made material handling, storage and convenience structures that help implement lean manufacturing processes.
About Package
1)Aluminum Joint and other accessory ,by carton and pallet
2) aluminum pipe ,by Stretch Film / Woven bag / Wooden Case
About JINGJI (TOP-KING)
In 2004, JINGJI (TOP-KING) Technology was established and located in shenzhen ,mainly manufacturer for design ,production,and sale of industrial storage equipment .after 10 years ,JINGJI(TOP-KING)have won various honorary titles like "ISO9001-2008""China green environmental protection products ""China famous brand""Creative Award" etc.
Today ,JINGJI (TOP-KING) contains the technical center, a state-of-the-art pipe mill, plastic component manufacturing, warehouse, structure assembly facility, and sales offices.
JINGJI(TOP-KING) is the original adaptive material handling system for companies looking to implement continuous improvement and lean manufacturing programs. Our broad line of Aluminum pipe and joints ,PE coated steel pipes, fittings and accessories is designed to let you custom build workstations, flow racks, carts, AGVs and other material handling structures that can easily be changed again and again to match your manufacturing needs. .
The myriad structure drawings in our database can help quick-start your program. We don’t just sell you a product, we’re there to assist in helping make your operation lean and improve your plant’s environment.
