|Place of Origin:||Shenzhen ,China|
|Minimum Order Quantity:||500 set|
|Packaging Details:||Packing in a 300mm*160mm carton,200 pieces per carton|
|Delivery Time:||5-7 working day|
|Supply Ability:||10000 sets per day|
|Material:||SPCC Steel Plate For Stamping||Color:||Black|
|Type:||90 Degree Elbow Structure Connecting||Weight:||104 G/piece|
|Thickness:||2.3mm - 2.5mm||Inner Diameter:||27.8mm - 28mm|
|Head Code:||Round||Main Market:||Global|
flexible pipe joint,
metal tube joints

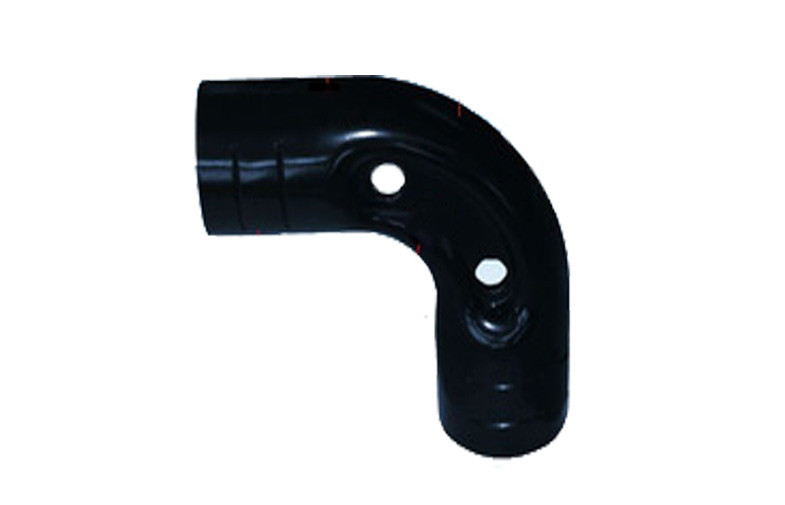

90 Degree Pipe Fitting Elbow Metal Pipe Joints For Lean Pipe Rack Plastic Pipe Connector
Metal Joint for Pipe Racks
Perfect wear resistance and Flexible
Use: Connecting the pipe rack system
Features of flexible pipe joint :
1, Sample and easy operation
2, High glossy and have different loading capacity.
3, It is to be re-used again and again. Pipe rack products’ layer can be adjusted and re-modified
4, Using only Plastic coated pipes and pipe rack metal joints, all kinds of pipe rack products can be made
into.Such as handcarts, workbench, srorage shelves, gravity flow racks, and more!
In facts, almost everything can be manufactured by multiunit Pipe and pipe Joint
Our products are sold with competitive price and high quality.
Quick Detail :
2.3mm- 2.5mm Thickness SPCC steel
2. Surface treatment :
Surface electrophoresis treatment(Black one), Zinc/ Nickel /Chrome
3. production procedure:
SPCC Steel→ Cut → Model →Stamping →Polish→ Electrophoresis

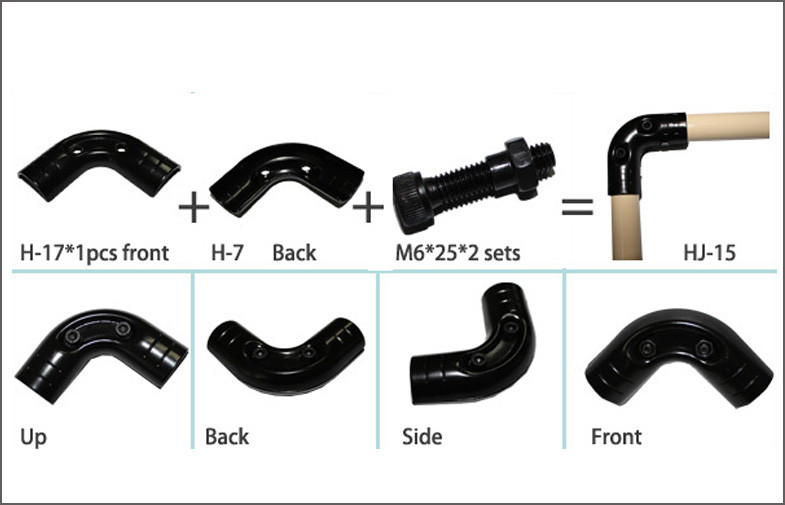

4. Main Combination:

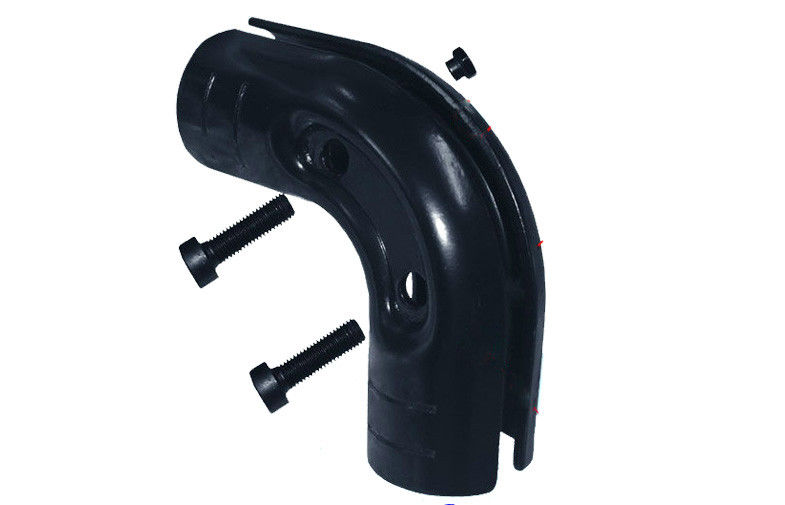

Two pieces of H-17 and one set of M6*25 bolt & nut combine to be one set of HJ-15 (H-17*2+M6*25*1)
6. Item No.
Product Description :
1.Manufacturing standard:Using international materials production under our strict quality
control and inspection.
2.Production process: Consistent with the national standard thickness 2.5mm (excluding
special type products) SPCC material. We emphasize on the functions of each product.
Cutting corners in manufacturing process is not allowed.
3. Design requirements:the standard is in accordance with the most favorable specification
in the industry. Emphasizes on the safety of people, articles, and equipments; prolong the
4.Testing:In addition to the regular standard gauge testing, a special gauge testing is added for
every process to ensure the functional indices reach the standard.
Application of H-16 and HJ-14 metal pipe joint
1. Pipe joints and other accessories:
Orginal packing is corrugated carton with any printing .
2.Alumiun alloy Pipes and palstic coated pipes:
Original packing us is 10 pcs packing together in a bar with plastic bags
and white woven bag .
OEM service is avaiable
We offer an impressive range of metal joints that are available in numerous grades and specifications
and have found uses in various industrial requirements and applications. Manufactured as per industry
tandards and parameters, our range of metal pipe joints deliver superior performance with long service
life and can be availed at most reasonable prices.
