| Place of Origin: | Shenzhen ,China |
| Brand Name: | Top-King |
| Certification: | ISO9001:2008;RoHS |
| Model Number: | EF-2045 |
| Minimum Order Quantity: | 500 meters |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 10 bars packing together in woven bag |
| Delivery Time: | Within 10 working days after deposit. |
| Payment Terms: | TT |
| Supply Ability: | 5000 meters per day |
| Name: | Placon Roller Track | Wheel: | PE |
|---|---|---|---|
| Color: | White | Frame: | Galvanized Steel |
| Size: | Width 40mm, 60mm, 85mm | ||
| High Light: | Iron Frame Track Roller System,60mm Track Roller System,White Placon roller track |
||
Iron Frame Track Rollers System 60mm Roller Track Conveyor White Placon
Quick Detail:

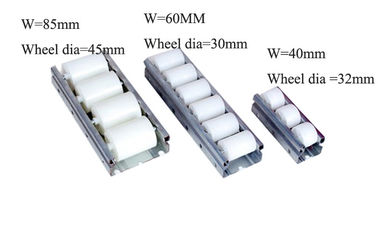

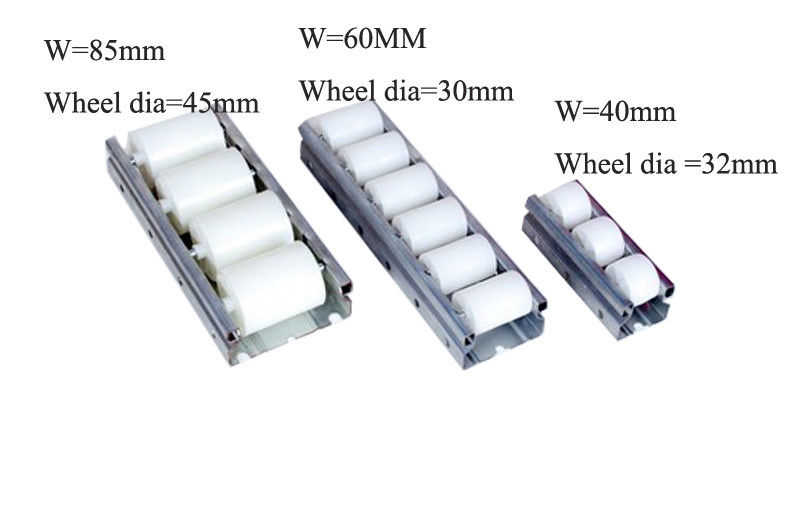

1. Roller track size: 38mm, 40mm, 60mm, 85mm.
2. The roller track is one of the components of the pipe rack product, which is used to assemble on the rack, the trolley pipe
rack products.
3. There are tracks of different sizes and materials. Iron body track width 38mm, aluminium
The body track is 40 mm wide. Choice of 60mm and 85mm roller tracks.
5. Wheels of different colors for the roller track. Yellow, black, white, transparent. Black can be divided into anti-static and non-anti-static. But the
85mm only has a white color wheel.
6. The roller track has joints of different shapes to connect plastic pipes for assembly.
Specifications:
85 mm Placon for Pipe and Joint System
|
Frame Dimension
|
W85mmm*H33mm |
|
Bracket thickness
|
1.2mm |
|
Wheel Dia & Width
|
45mm&55mm |
|
Load capacity / wheel
|
60 kg / wheel |
|
Load capacity / meter
|
800 kg / meter |
|
Wheel qty
|
20 pcs / meter |
60mm Track roller size
|
Frame Dimension
|
W60mmm*H33mm |
|
Bracket thickness
|
0.8mm & 1.0mm |
|
Wheel Dia & Width
|
30mm&42mm |
|
Load capacity / wheel
|
300 kg / wheel |
|
Load capacity / meter
|
300 kg / meter |
|
Wheel qty
|
28 pcs / meter |
40 mm Placon specification
|
Frame Dimension
|
W40mmm*H33mm |
|
Bracket thickness
|
1.2mm |
|
Wheel Dia & Width
|
32mm & 22mm |
|
Load capacity / wheel
|
10 kg / wheel |
|
Load capacity / meter
|
100 kg / meter |
|
Wheel qty
|
28 pcs / meter |
