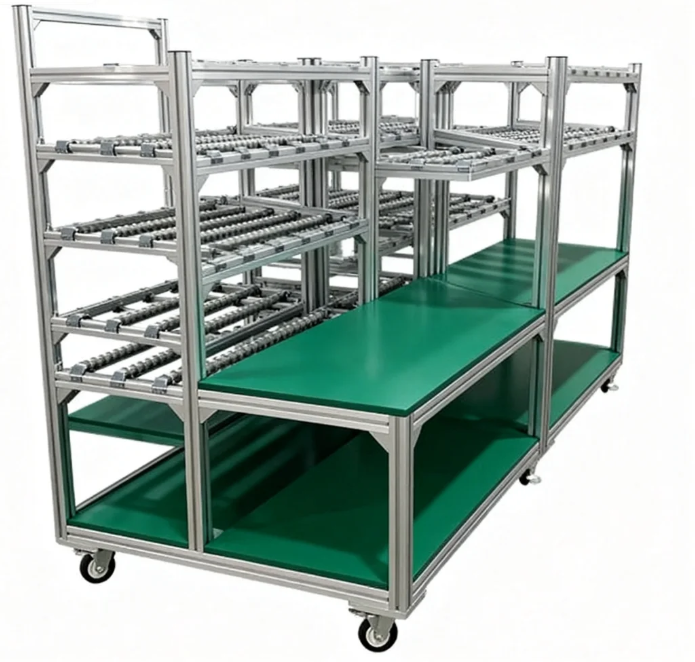

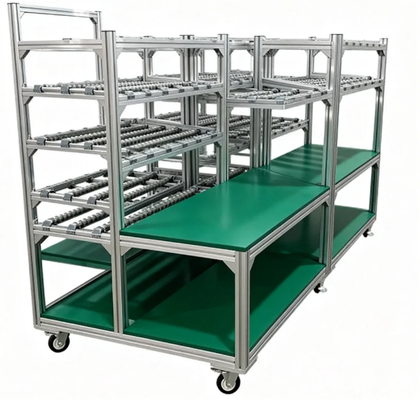

Dual-channel Fluid Composite Transfer Rack With Upper And Lower Partitions With Forward And Backward Discharge Lines And Side Material Racks

Product features
Upper double-directional dual-channel smooth passage: The two layers of smooth strips on the upper and lower parts are connected front and back. Workers on both sides of the assembly line can respectively take and place materials from the front and rear ends without moving the entire machine. It is suitable for dual-synchronous production lines.
Up-down partition storage structure: The upper smooth area stores standard trays and carriers; the lower double-layer flat anti-static plate can hold toolboxes, testing equipment, and complete semi-finished products. Light and heavy materials are separated and isolated by layers.
Full seamless anti-static flat surface: The lower layer uses a seamless whole-piece green anti-static rubber tabletop without any seams. It is not easy to accumulate dust and debris, and cleaning and maintenance are simple. The ESD static protection meets the standard.
Adjustable inclined smooth passage: The installation clips of the smooth strip can be freely adjusted to tilt angles, suitable for smooth discharge of light and small trays, and stable and anti-slip for heavy workpieces.
Independent four-corner universal brake casters: All four feet are polyurethane silent universal wheels. They can be easily pushed in any direction. After the locking mechanism is locked, the frame is completely fixed. The transfer and static storage modes can be freely switched.

Product advantages
Dual-sided material extraction, compatible with dual-line production: The design of forward and backward two-way material discharge enables one material rack to supply the workstations on both sides of the production line simultaneously, reducing the number of material racks placed on the production line and saving the space of the workshop corridors.
Zone management for light and heavy materials, clear access: The upper layer of small items uses the first-in-first-out principle, while the lower layer of heavy boxes and instruments are centrally stored. The materials are classified and arranged neatly, eliminating the problem of disorderly accumulation at the workstations.
Seamless flat plates are easy to clean, compatible with cleanrooms: The lower layer has a continuous and seamless anti-static surface without any breaks, eliminating the hiding spots for dust and debris. Cleaning can be done in one step, meeting the 5S standards of the electronic cleanroom.
Flexible transfer compatible with multi-process flow: The wheels can be pushed to any process such as soldering, inspection, assembly, and packaging. The entire batch of materials can be transferred at once, without the need for multiple packaging and turnover.
Modular and freely configurable: The universal slots of the aluminum profile allow for flexible layers, flat plate heights, and slide channel widths to be increased or decreased. Changing the production line type or expanding production does not require replacing the entire frame, and the reusability is extremely strong.

Application scenario
Bilateral synchronous assembly line, PCB double-sided inspection station, new energy battery cell assembly line, SMT soldering line material preparation at the line edge, medical device component processing, small household appliances dual-station assembly production line.
