Home ProductsSMT PCB ConveyorProfessional SMT PCB Conveyor Machine/ Dual Register Machine for 80x50-330x280mm PCB Size and 900±20mm Height
Professional SMT PCB Conveyor Machine/ Dual Register Machine for 80x50-330x280mm PCB Size and 900±20mm Height
Professional SMT PCB Conveyor Machine/ Dual Register Machine for 80x50-330x280mm PCB Size and 900±20mm Height

Professional SMT PCB Conveyor Machine/ Dual Register Machine for 80x50-330x280mm PCB Size and 900±20mm Height

Product Details:
Place of Origin: Shenzhen ,China
Brand Name: TOP-KING
Certification: ISO9001:2008;RoHS
Model Number: CHT-CWBL-280T
Payment & Shipping Terms:
Minimum Order Quantity: Five channels
Price: Negotiation
Packaging Details: Film at inner,10 pcs one bundle,packing in woven bag.
Delivery Time: 15-20 working day after received the deposit(The actual situation according to the quantity)
Payment Terms: T/T
Supply Ability: 1000 channels per day
Contact Now
  • Detail Information
  • Product Description

Detail Information
PCB Size(L*W): 80x50-330x280mm PCB Hight: 900±20mm
Weight: 400Kg/420kg Boundary Dimension (L%22W%22H): 795x1250x1135mm
Highlight:

Professional SMT PCB Conveyor

,

900±20mm SMT PCB Conveyor

,

Dual Register SMT PCB Conveyor

Product Description

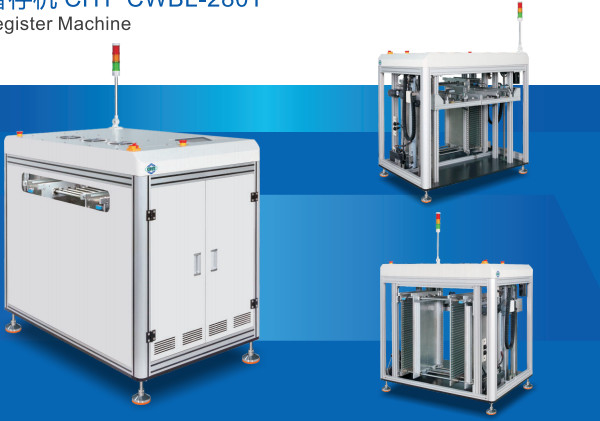

SMT SERIES PCB CONVEYOR MACHINE/ Dual Register Machine



Features



HIM operation system interface control operation which are very simple and convenient.

PLC control system, multiple electrical circuit protection design which are security and stability

There are 2 boxes in the temporary storage area, and 30 pitches per box are available for stopping

Integrate mulltiple functions, first-in, first-out, advanced-last-out, and direct-through NG/OK

Servo positioning system, high positioning acouracy, fast lifting speed, high production efficiency,and large amount of storage

Standard SMEMA signal communicatio



Technical Parameters



Description Can be used for NG screening after SMT inspection equipment  Can be used to automatically collect AOI inspection  NG/OK circuit boards to different bins
Board capacity 20-30pcs, Can be used for multi-purpose selection of NG/OK storage boards
Maximum load 1.5kg/PCB
Cycle time

About 12 Seconds
Step selection 20,40mm or specified by customer
Power supply and electric load 220V(AC,SP)900VA max
Board thickness Min,0.6mm
