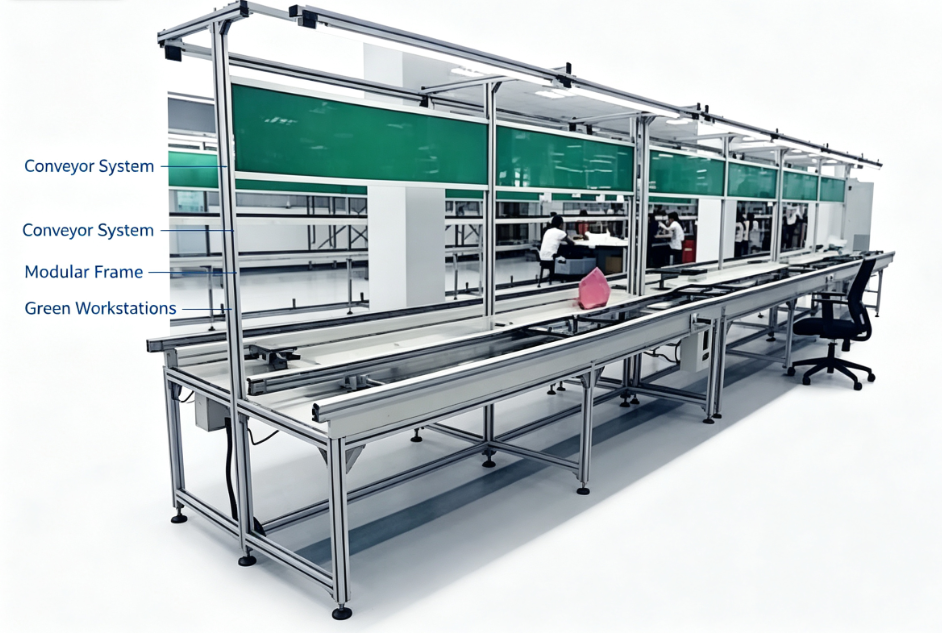

Bilateral Automatic PCB Plug-in Line | DIP Dual Side Insertion Assembly Conveyor

The JP-DIP800-B Bilateral Automatic Plug-in Line is specially designed for DIP through-hole component insertion assembly in electronics manufacturing workshop. This dual-side working conveyor adopts aluminum alloy frame and anti-static belt transmission system, allowing operators to work on both sides of the line simultaneously for PCB resistor, capacitor, connector and other through-hole parts plugging work. It can seamlessly connect with SMT production line, wave soldering machine, PCB loader & unloader to form a complete DIP assembly production workflow. Widely applied for consumer electronics, home appliances, power supply board, automotive electronics, control circuit board assembly workshop.

Main Structure & Materials

1. Frame: High-strength 6063-T5 industrial aluminum profile frame, anodized surface treatment, anti-corrosion, sturdy structure, easy assembly and disassembly. Adjustable foot cups for horizontal leveling, adapt uneven factory floor.
2. Conveyor Belt: Imported anti-static green PVC belt, surface resistance 10⁶~10⁹Ω, effectively eliminate static electricity to protect sensitive electronic PCB components from ESD damage. Wear-resistant, low noise, long service life.
3. Guide Rail: Custom aluminum alloy PCB guide slot, adjustable width, support different PCB board sizes. Anti-drop plate design prevents circuit board falling during transmission.
4. Power & Drive System: 220V single-phase variable speed motor, stepless speed regulation from 0.1~5 m/min. Stable chain transmission, low friction, no oil pollution to PCB boards.

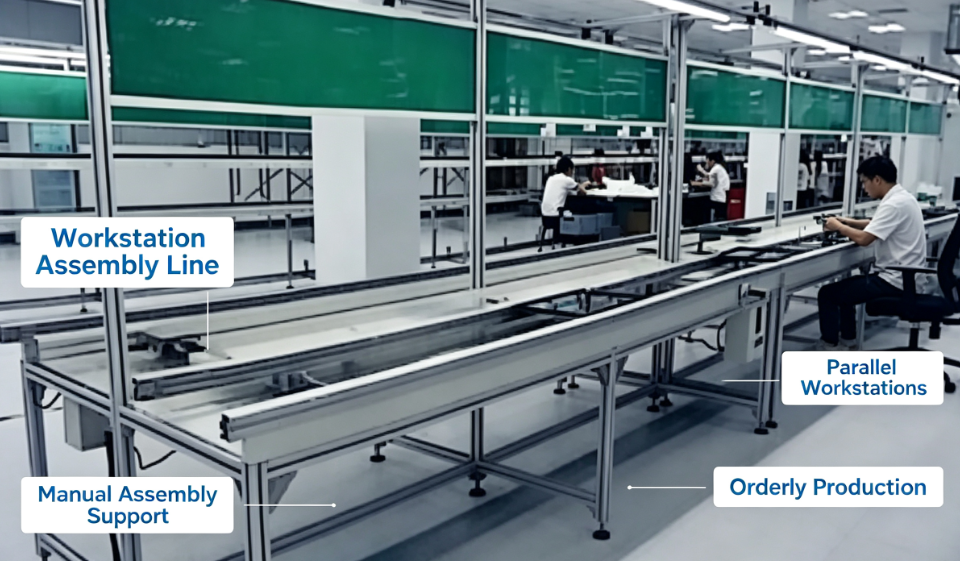

5. Workstation Accessories: Equipped with green anti-static working panel, top hanging lighting system, power socket rack, component storage rack, wire management groove. Each station reserved ESD grounding port.

Core Features

Technical Parameters

Application Industry

Household appliance circuit board, switching power supply, LED driver board, automotive electronic control board, industrial controller PCB, medical electronic circuit board, security equipment motherboard and other DIP through-hole assembly production.

Custom Service

We support full non-standard customization. Our engineering team can make layout drawing, 3D simulation according to your workshop size, PCB dimension, production capacity requirement. We provide on-site installation guidance, operation training and after-sales maintenance service.
