Automatic Loader SMT PCB Conveyor Machine for PCB Size 80x50-330x250mm and MateriaI Box Sizes 355*320x565mm
Automatic Loader SMT PCB Conveyor Machine for PCB Size 80x50-330x250mm and MateriaI Box Sizes 355*320x565mm

Automatic Loader SMT PCB Conveyor Machine for PCB Size 80x50-330x250mm and MateriaI Box Sizes 355*320x565mm

Product Details:
Place of Origin: Shenzhen ,China
Brand Name: TOP-KING
Certification: ISO9001:2008;RoHS
Model Number: CHT-CLD-303C
Payment & Shipping Terms:
Minimum Order Quantity: Five channels
Price: Negotiation
Packaging Details: Film at inner,10 pcs one bundle,packing in woven bag.
Delivery Time: 15-20 working day after received the deposit(The actual situation according to the quantity)
Payment Terms: T/T
Supply Ability: 1000 channels per day
Contact Now
  • Detail Information
  • Product Description

Detail Information
PCB Size(L*W): 80x50-330x250mm PCB Direction: L-R/R-L
PCB Hight: 900±20mm MateriaI Box Sizes(L*W*H): 355*320x565mm
Weight: 185Kg Boundary Dimension (L%22W%22H): 1380x760x1120mm
Highlight:

MateriaI Box Sizes SMT PCB Conveyor

,

Automatic Loader SMT PCB Conveyor

,

330x250mm SMT PCB Conveyor

Product Description

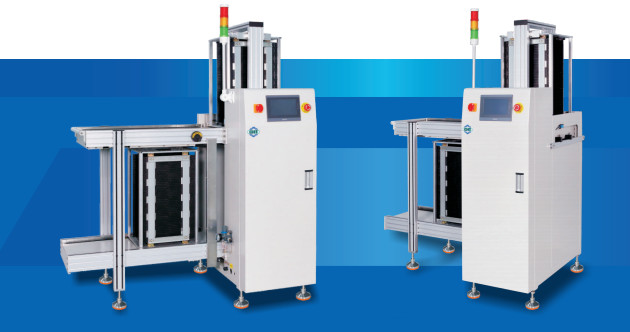

SMT SERIES PCB CONVEYOR MACHINE/Automatic Loader



Features



SSMT production line circuit board upper board device

PLC controll, color HMI operation system

Stepping motor push plate structure. pushing plate speed is adiustable

Auxilliary positioning braking system, accurate positioning, fast lifting speed and high production efficiency

Multiple electrical distribution circuit protection, safe and reliable

Sound and light alarm system, abnormal information text prompts, easy operation and

Standard SMEMA signal communication



Technical Parameters



Description Used to automatically send circuit boards to the production line
No.of magazine Upper conveyor: 2nos. Lower conveyor:2nos.
Time for feed PCBs  Approx. 6 seconds or specified by customer
Magazine change over time Approx. 35 seconds or specified by customer
Indexing pitch 10,20,30,40 mm pitch or specified by customer
power supply and electric load 220V(AC,SP) 300VA max
Air pressure and air flow 4-6bar,max.0.1l/min/max, 0.2l/min
Thickness of PBCs 0.6mm min



specification parameter



Ten name of the  S-CHT M-CHT L-CHT XL-CHT
PCB Size(L*W) 80x50-330x250mm 80x50-460x330mm 80x50-510x390mm 80x50-510x460mm
Materia| box sizes(L*W*H) 355*320x565mm 460x400*565mm 535x460*570mm 535x530*570mm
Weight 185Kg 205Kg 225Kg 245Kg
Boundary dimension (L*W*H)

1380x760x1120mm

1690x860x1120mm 1940x1000x1120mm 1940x1070x1120mm
