SMT PCB Conveyor Machine with PLC Control Adjustable Speed and SMEMA Standard for Automatic Unloading
SMT PCB Conveyor Machine with PLC Control Adjustable Speed and SMEMA Standard for Automatic Unloading
SMT PCB Conveyor Machine with PLC Control Adjustable Speed and SMEMA Standard for Automatic Unloading SMT PCB Conveyor Machine with PLC Control Adjustable Speed and SMEMA Standard for Automatic Unloading

SMT PCB Conveyor Machine with PLC Control Adjustable Speed and SMEMA Standard for Automatic Unloading

Product Details:
Place of Origin: Shenzhen ,China
Brand Name: TOP-KING
Certification: ISO9001:2008;RoHS
Model Number: CHT-CLD-303H
Payment & Shipping Terms:
Minimum Order Quantity: Five channels
Price: Negotiation
Packaging Details: Film at inner,10 pcs one bundle,packing in woven bag.
Delivery Time: 15-20 working day after received the deposit(The actual situation according to the quantity)
Payment Terms: T/T
Supply Ability: 1000 channels per day
Contact Now
  • Detail Information
  • Product Description

Detail Information
PCB Size(L*W): 80x50-330x250mm PCB Direction: L-R/R-L
PCB Hight: 900±20mm MateriaI Box Sizes(L*W*H): 355*320x565mm
Weight: 205Kg Boundary Dimension (L%22W%22H): 1380x760x1120mm
Condition: New Standard: SMEMA
Transmission Height: 900±50mm (Adjustable) Pcb Width Range: 50～460mm
Speed: 0.5 - 20 Meters Per Minute (adjustable) Loadcapacity: Up To 5 Kg Per PCB
Usage: SMT Control System: KEWEI PLC And Panasonic Sensor
Pcb Width: 60～460mm Pcb Transmission Time: 8-15s/pcs
Controlmethod: Manual Or Automatic Control Working Mode: Manual, Automatic
Air Supplly: 4-6Kgf/cm² Approximate Weight: 60KG
Type: SMT Machine Related Products
Highlight:

SMT SERIES PCB CONVEYOR MACHINE

,

Automatic Unloader PCB CONVEYOR MACHINE

,

SMT SERIES PCB CONVEYOR

Product Description

SMT PCB Conveyor
Designed to collect circuit boards from production line with upper and lower conveyor magazine system
Product Overview

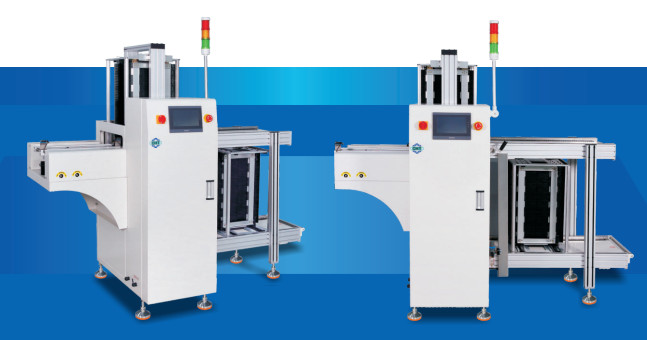

SMT SERIES PCB CONVEYOR MACHINE / Automatic Unloader
Key Features
  • SMT production line circuit board closing device
  • PLC control, color HMI operation system
  • Stepping motor push plate structure, pushing plate speed is adjustable
  • Auxiliary positioning braking system, accurate positioning, fast lifting speed and high production efficiency
  • Multiple electrical distribution circuit protection, safe and reliable
  • Sound and light alarm system with abnormal information text prompts for easy operation and maintenance
  • Standard SMEMA signal communication
Technical Parameters
Description Used to collect circuit boards from the production line
Number of Magazines Upper conveyor: 2 nos. Lower conveyor: 2 nos.
Time for Feed PCBs Approx. 6 seconds or specified by customer
Magazine Change Over Time Approx. 35 seconds or specified by customer
Indexing Pitch 10, 20, 30, 40 mm pitch or specified by customer
Power Supply and Electric Load 220V (AC, SP) 300VA max
Air Pressure and Air Flow 4-6 bar, Up to 0.2/min
Thickness of PCBs 0.6mm min
Model Specifications
Model Name S-CHT M-CHT L-CHT XL-CHT
PCB Size (L×W) 80×50-330×250mm 80×50-460×330mm 80×50-510×390mm 80×50-510×460mm
Material Box Size (L×W×H) 355×320×565mm 460×400×565mm 535×460×570mm 535×530×570mm
Weight 205Kg 235Kg 265Kg 285Kg
Boundary Dimension (L×W×H) 1380×760×1120mm 1690×860×1120mm 1940×1000×1120mm 1940×1070×1120mm
Our Company
Shenzhen Jingji Technology Co., Ltd. is a professional manufacturer for design, production and sale of industrial storage equipment, flexible production equipment, automation equipment and other kinds of instruments and gauges. Besides, the company distributes anti-static peripherals.
We provide a comprehensive logistics plan in order to avoid waste of resources in course of purchase and supply chain by manufacturers. It is our ultimate goal to provide all customers with full service, to meet exact demands of customers, to improve product quality, and to enhance customer satisfaction in storage and logistics as in automation industry.
Our Service
If you have any questions or needs, please feel free to contact us any time.
