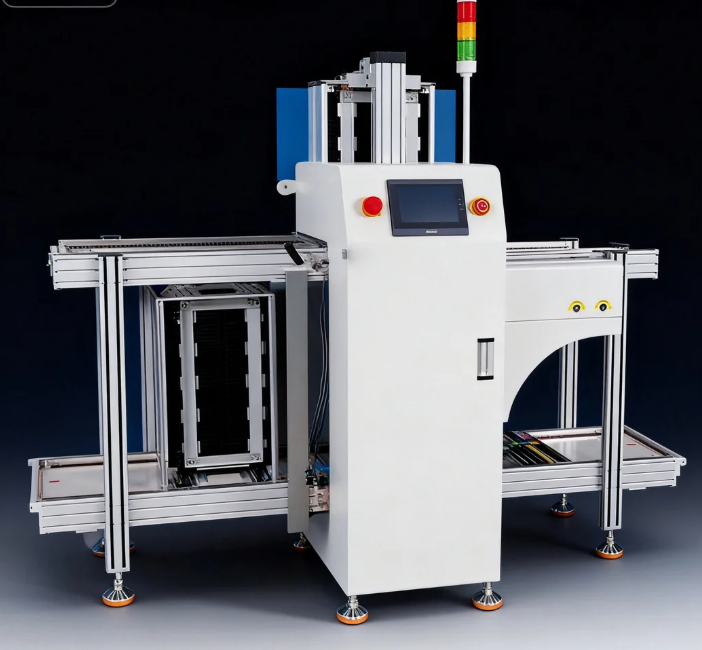

Pcb Width Range 50 to 460mm Solder Paste Management System Offering Manual or Automatic Two Ways Operation for Production Line Control

Product Description:

The SMT PCB Conveyor is an essential piece of equipment designed specifically for the surface mount technology (SMT) production line. This versatile conveyor system plays a crucial role in optimizing the workflow and efficiency of PCB loading and unloading processes, making it an indispensable tool in modern electronics manufacturing. Operating at a standard voltage of 220V, this conveyor ensures stable and reliable performance, meeting the demanding requirements of SMT assembly lines.

One of the key features of the SMT PCB Conveyor is its dual working mode, offering both manual and automatic operation options. This flexibility allows manufacturers to tailor the conveyor’s functionality to suit their specific production needs. Whether you require precise manual control for delicate tasks or the efficiency of fully automatic operation for high-volume production, this conveyor adapts seamlessly to your workflow, enhancing productivity and reducing downtime.

The conveyor is available with two types of belt options: round belt and flat belt. This variety ensures compatibility with different PCB sizes, shapes, and handling requirements. The round belt conveyor is particularly effective for handling smaller or oddly shaped PCBs, providing secure and gentle conveyance without damaging the components. Meanwhile, the flat belt conveyor is ideal for standard PCB sizes, offering stable and smooth transportation across the production line. Both conveyor types maintain consistent PCB positioning, which is critical for precise SMT assembly and inspection processes.

Speed is a vital parameter in SMT production, and this PCB conveyor excels in offering an adjustable conveyor speed ranging from 5 to 60 meters per minute. This wide speed range enables manufacturers to synchronize the conveyor operation with other SMT equipment, such as pick-and-place machines, reflow ovens, and inspection stations, ensuring a harmonious and efficient production flow. The ability to fine-tune the conveyor speed helps minimize bottlenecks and optimize throughput, ultimately improving overall manufacturing efficiency.

As a product categorized under SMT machine related products, the PCB conveyor integrates seamlessly with other essential SMT equipment such as PCB loading & unloading equipment and NG/OK unloader systems. This integration facilitates smooth PCB conveying and connection throughout various stages of the production line. The conveyor acts as a vital link, ensuring that PCBs are transported efficiently from one process to the next without manual intervention, reducing the risk of damage and human error.

In addition to its role in transport, the SMT PCB Conveyor supports the implementation of NG/OK unloader systems, which are critical for quality control in SMT production. By efficiently separating defective (NG) PCBs from acceptable (OK) ones, the conveyor system contributes to maintaining high product quality standards and streamlines the inspection and rework processes. This feature helps manufacturers reduce waste, improve yield rates, and maintain consistent product quality.

Overall, the SMT PCB Conveyor is a highly reliable and adaptable conveyor system designed to meet the diverse needs of modern SMT production lines. Its robust construction, flexible working modes, belt type options, and adjustable speed make it an ideal solution for PCB conveying and connection equipment. Whether you are looking to enhance your PCB loading & unloading equipment capabilities or integrate an efficient NG/OK unloader into your production line, this conveyor system offers excellent performance and value.

In summary, the SMT PCB Conveyor is a powerful tool that significantly improves the efficiency and quality of SMT manufacturing processes. With a stable 220V power supply, manual and automatic working modes, choice of round or flat conveyor belts, and adjustable speeds from 5 to 60 meters per minute, it stands out as an indispensable component of PCB loading & unloading equipment and PCB conveying & connection equipment. Its compatibility with NG/OK unloader systems further emphasizes its role in ensuring smooth, high-quality SMT production workflows.

Features:

• Product Name: SMT PCB Conveyor
• Conveyor Type: Round Belt or Flat
• Direction: Left to Right (L-R) or Right to Left (R-L)
• PCB Width Range: 50～460mm
• Conveyor Length: Adjustable, typically from 500mm to 2000mm
• Working Mode: Manual or Automatic two ways
• Compatible with Automated Optical Inspection (AOI) systems
• Seamlessly integrates with Component Storage & Feeder System
• Supports efficient Solder Paste Management System

Technical Parameters:

Applications:

The Kutede KTD-010 SMT PCB Conveyor is a highly versatile and reliable piece of material handling automation equipment designed specifically for the electronics manufacturing industry. Originating from ShenZhen, China, and operating at a standard voltage of 220V, this conveyor is an essential component in SMT machine related products, providing seamless integration with various production line setups. Its adjustable conveyor length, typically ranging from 500mm to 2000mm, and conveyor speed capabilities from 5 to 60 meters per minute, make it adaptable to different production requirements and scales.

This SMT PCB Conveyor is ideal for a wide range of application occasions and scenarios within the electronics assembly process. It is commonly used in conjunction with vacuum loaders, which are critical for precise and contamination-free PCB handling during loading stages. By incorporating the Kutede KTD-010 conveyor, manufacturers can ensure smooth and efficient transfer of PCBs between different SMT machines and inspection stations, reducing manual labor and minimizing the risk of damage.

Another common application scenario for this conveyor is its integration with magazine racks or magazine loaders. These systems are essential for organizing and feeding PCBs in a systematic manner, and the KTD-010 conveyor supports both left-to-right (L-R) and right-to-left (R-L) directions, providing flexibility in line design and layout. This flexibility supports various production flow requirements, including inline assembly, automated inspection, and packaging processes.

In addition to electronics manufacturing lines, the Kutede KTD-010 SMT PCB Conveyor finds applications in research and development labs, small to medium-scale production workshops, and high-volume manufacturing facilities. Its adjustable conveyor length and speed ensure it can be tailored to different batch sizes and throughput demands, enhancing overall operational efficiency.

Overall, the Kutede KTD-010 SMT PCB Conveyor plays a pivotal role in material handling automation equipment setups by improving the accuracy, speed, and reliability of PCB transportation. Its robust build quality, combined with its adaptability to various loading and unloading mechanisms like vacuum loaders and magazine racks, makes it an indispensable tool for modern SMT production environments.
