Compact Single-track OK NG Board Collecting Machine Small Flexible Production Line / Special Board Splitting Equipment For R&D And Sample Production

Product Description

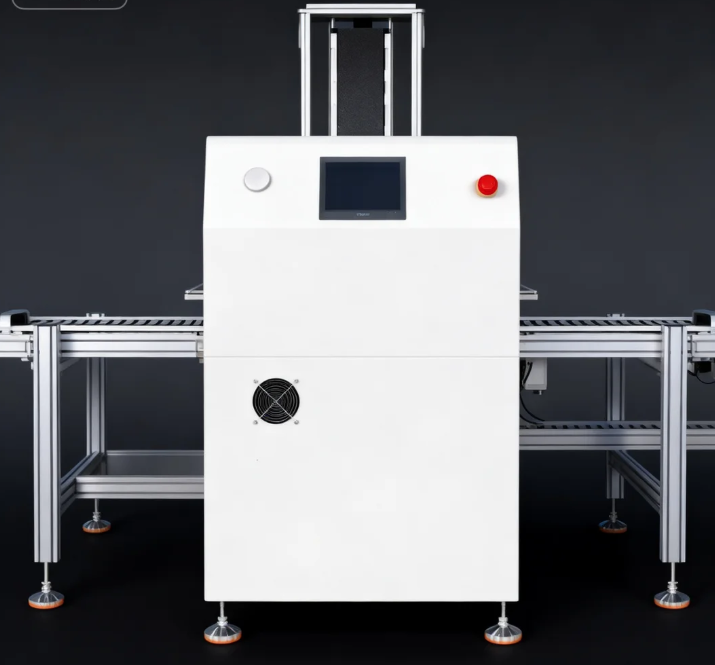

This compact single-track NG-OK board collection machine is a lightweight and small-scale分流 board collection equipment. The entire machine adopts a compact sheet metal body design, a narrow single-track connection structure, and a streamlined top lifting aluminum frame, occupying less space. It is specially designed for small-batch flexible production lines, R&D sample testing workshops, and small SMT soldering lines. It automatically completes the分流 of good and bad PCB boards, with a streamlined and flexible body structure. It can be adapted to small laboratories and small semi-automatic production lines with limited space, and also meets the sorting requirements for sample testing and small-batch trial production.

Product features
Compact narrow-body design: The overall width of the machine has been significantly reduced. The left and right connection platforms can be adjusted flexibly and can be embedded in narrow assembly lines or behind small testing equipment in laboratories, without occupying the space of the workshop passageways.
Simple and intelligent touch control system: A small embedded touch screen, simplifying redundant functions while retaining core functions such as board separation counting, full-load alarm, and speed adjustment, with a low learning threshold and suitable for new operators.
Lightweight aluminum profile lifting frame: A lightweight and thickened aluminum profile lifting mechanism, with low-noise and smooth lifting operation, supporting small PCB material frames, suitable for mobile phone, wearable devices, and small driver boards and other micro substrates.
Low-noise and low-power heat dissipation structure: A small silent cooling fan combined with segmented heat dissipation louvers, with an operating noise lower than 55 dB and a power consumption of only 0.7 KW, suitable for quiet R&D laboratories.
Extensible single-track connection platform: The left and right conveying tracks support front and rear extension adjustment, which can be adapted to the discharge ports of different types of inspection equipment, and the equipment connection does not require modification of the production line frame.

Product advantages
Compact in size, suitable for narrow workstation spaces: The compact body occupies only 70% of the space of the standard model, making it suitable for small assembly lines, R&D laboratories, and proofing stations, solving the problem of insufficient workshop space.
Low noise and energy-saving, suitable for laboratory clean environments: Silent cooling, low power operation, no high-decibel noise interference with sample testing, and lower electricity consumption over the long term.
Flexible telescopic connection, compatible with multiple devices: The telescopic single-track connection platform is compatible with various small-sized testing equipment. A single R&D production line can replace the testing model without the need to replace the plate collector.
Simple operation, suitable for multiple sample change scenarios: The control system is simplified, parameters can be reset with one click, and the changeover debugging time is shortened to 3 minutes, suitable for frequent switching of production with multiple specifications of samples.
Lightweight body for easy relocation and adjustment: The entire machine is lighter in weight, the foot cups are easy to disassemble and assemble, and it can be flexibly moved to different testing stations according to R&D needs, with extremely strong versatility.

Application scenario
Electronic R&D Laboratory Sample Production Line, Small Semi-Automatic SMT Soldering Line, Wearable Device PCB Prototype Workshop, Small Household Appliance Control Board Test Line, University Electronic Laboratory, After-sales Maintenance Sample Inspection Station.
