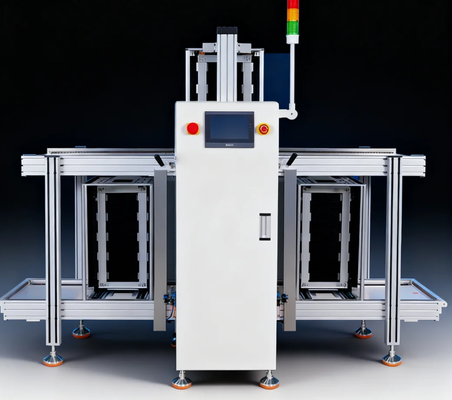

SMT PCB Handling Equipment with 4mm Widened Pulley Specification Providing Stable Conveying and Consistent PCB Transport

Product Description:

The SMT PCB Conveyor is an essential piece of PCB handling equipment designed to streamline the manufacturing and assembly processes in electronics production. It offers a reliable and efficient method for transporting printed circuit boards (PCBs) through various stages of surface mount technology (SMT) assembly lines. With its robust design and user-friendly features, this conveyor system significantly enhances workflow efficiency while ensuring the safe and precise handling of delicate PCBs.

One of the key features of the SMT PCB Conveyor is its manual width adjustment method. This allows operators to easily customize the conveyor width to accommodate different PCB sizes, providing flexibility and adaptability for various production requirements. The width adjustment mechanism is straightforward and intuitive, enabling quick changes without the need for complex tools or procedures. This capability is particularly valuable in environments where multiple PCB sizes are processed, ensuring a smooth transition between different products.

The conveyor is engineered to handle PCBs with thicknesses ranging from 0.4 mm to 5 mm. This wide applicable PCB thickness range makes the conveyor suitable for a diverse array of circuit boards, from thin and delicate designs to thicker, more robust boards. The ability to securely transport PCBs of varying thicknesses without damage is critical in maintaining product quality and reducing the risk of defects during assembly.

In terms of user interaction, the SMT PCB Conveyor is equipped with a modern touchscreen Human-Machine Interface (HMI). This user interface simplifies operation by providing clear and accessible controls, status monitoring, and diagnostic information. Operators can easily manage conveyor speed, start and stop functions, and other operational parameters through the touchscreen, improving overall ease of use and reducing the likelihood of operator error. The HMI also supports quick troubleshooting and maintenance, contributing to minimal downtime and enhanced productivity.

The transmission system of the conveyor utilizes a 10mm synchronous wheel belt drive, which ensures smooth and precise movement of the PCBs along the conveyor track. This transmission type delivers consistent speed and stable transport, which is vital for maintaining accurate positioning of components during the assembly process. The synchronous belt drive also minimizes slippage and wear, thereby extending the service life of the conveyor and reducing maintenance costs.

The conveyor features a single track structure, which is designed to provide a compact footprint while accommodating efficient PCB flow. The single track layout simplifies the conveyor design, making it easier to integrate with other PCB handling equipment and component storage & feeder systems. This integration capability is essential for creating a seamless and automated production line, where PCBs are transferred smoothly between different process stations without manual intervention.

Moreover, the SMT PCB Conveyor is compatible with ESD workstations, ensuring that sensitive electronic components and PCBs are protected from electrostatic discharge throughout the handling and assembly processes. The inclusion of ESD-safe materials and grounding features within the conveyor system helps to safeguard components against static damage, which is critical in maintaining product reliability and reducing yield loss.

In summary, the SMT PCB Conveyor is a versatile and efficient solution for PCB handling equipment needs in modern electronics manufacturing. Its manual width adjustment, broad applicable PCB thickness range, touchscreen HMI user interface, and reliable 10mm synchronous wheel belt transmission system combine to provide a high-performance conveyor that supports precise and safe PCB transport. The single track structure facilitates easy integration with component storage & feeder systems and ESD workstations, making it an indispensable asset for automated SMT assembly lines. By incorporating this conveyor into your production process, you can achieve enhanced throughput, reduced handling risks, and improved overall product quality.

Features:

• Product Name: SMT PCB Conveyor
• Applicable PCB Width: 50~350mm
• Power Max: 100W
• Applicable PCB Thickness: 0.4-5 mm
• Pulley Specification: 4mm Widened Pulley for Stable Conveying
• Conveyor Width: Adjustable, Typically 50-350 mm
• Designed for seamless integration with Automated Optical Inspection (AOI) systems
• Functions efficiently as a Conveyor / Connection Station between production processes
• Compatible with various Component Storage & Feeder Systems to enhance production line automation

Technical Parameters:

Applications:

The Kutede SMT PCB Conveyor, model number KTD-010, originating from ShenZhen, China, is a versatile and essential piece of equipment designed to enhance the efficiency and automation of the PCB assembly process. Its robust design accommodates PCB sizes ranging from 80*50mm to 300*120mm and supports applicable PCB thicknesses between 0.4mm to 5mm, making it suitable for a wide variety of circuit board types and production requirements.

This conveyor features an adjustable conveyor width, typically from 50mm to 350mm, allowing for manual width adjustment to precisely fit different PCB dimensions. With a maximum power consumption of 100W, the KTD-010 ensures energy-efficient operation while maintaining reliable and consistent performance. These attributes make it an ideal solution for SMT production lines that require flexible and reliable PCB handling.

The Kutede SMT PCB Conveyor is commonly used in multiple application occasions and scenarios within the electronics manufacturing industry. It functions seamlessly as a Conveyor / Connection Station, linking various stages of the production line such as the Vacuum Loader, reflow oven, solder paste printer, and inspection stations. This connection ensures a smooth and continuous flow of PCBs, reducing manual handling and minimizing the risk of damage or misalignment.

In addition, the conveyor is an integral part of the NG/OK Unloader system, which sorts printed circuit boards based on quality inspection results. After inspection, PCBs classified as NG (No Good) or OK (Good) can be automatically separated, streamlining the quality control process and enhancing production accuracy. This capability is crucial in high-volume manufacturing environments where speed and precision are paramount.

Overall, the Kutede KTD-010 SMT PCB Conveyor is suitable for SMT assembly lines in electronics factories, prototyping labs, and repair centers. It supports efficient PCB transportation, integration with Vacuum Loaders for stable board placement, and effective sorting with NG/OK Unloaders, making it an indispensable component in modern PCB manufacturing and assembly workflows.

Customization:

Kutede offers comprehensive product customization services for the SMT PCB Conveyor, model KTD-010, designed and manufactured in ShenZhen, China. This conveyor features a 10mm synchronous wheel belt drive transmission type, ensuring precise and reliable movement of PCBs during the SMT process. The width adjustment method is manual, accommodating PCB widths ranging from 50 to 350mm, making it versatile for various production needs.

The conveyor length is adjustable, typically between 1000 to 3000 mm, allowing customization to fit specific production line requirements. As part of our customization services, we ensure seamless integration with Inspection & Quality Control Equipment, Cleaning & Maintenance Equipment, and PCB Handling Equipment to optimize your SMT workflow.

Our customization solutions focus on enhancing efficiency, reliability, and compatibility with existing SMT lines, providing tailored configurations that meet your operational demands. Choose Kutede’s KTD-010 SMT PCB Conveyor for a high-quality, adaptable conveyor system that supports your PCB assembly process effectively.
