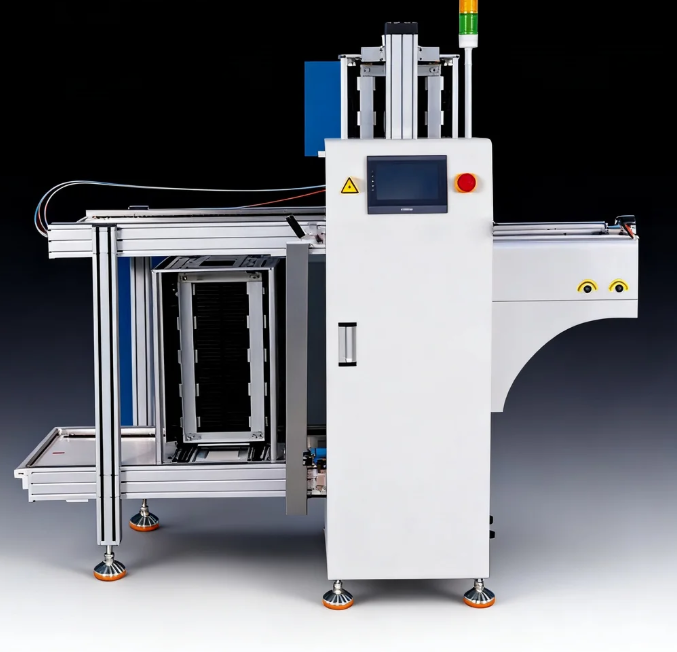

Manual Adjustment Width Adjustment SMT PCB Conveyor Compatible with PCB Thickness 0.4 to 5 Mm SMT PCB Transfer Equipment

Product Description:

The SMT PCB Conveyor is an essential piece of equipment designed specifically for the efficient and reliable transportation of printed circuit boards (PCBs) within Surface Mount Technology (SMT) production lines. Engineered to meet the demanding requirements of modern electronics manufacturing, this conveyor ensures smooth and stable movement of PCBs, facilitating seamless integration with other critical machinery such as the Vacuum Loader, Magazine Rack, Magazine Loader, and Connection Station.

One of the standout features of this SMT PCB Conveyor is its adjustable length, which typically ranges from 1000 to 3000 millimeters. This flexibility allows manufacturers to customize the conveyor to fit the specific layout and workflow of their SMT production line, optimizing space utilization and improving overall efficiency. Whether you need a compact conveyor for a smaller production setup or an extended conveyor for a more complex assembly line, this product can be tailored to meet your precise requirements.

Stability during conveying is paramount to prevent damage to sensitive PCBs and to maintain production accuracy. To address this, the conveyor is equipped with a 4mm widened pulley specification. This design enhancement significantly improves the stability of the conveying belt, reducing the risk of misalignment or slippage during operation. The widened pulley ensures that PCBs are transported smoothly and securely, minimizing downtime and enhancing product quality.

The width adjustment method of the SMT PCB Conveyor is manual, providing operators with straightforward control over the conveyor's width to accommodate various PCB sizes. This manual adjustment feature is intuitive and allows quick changes, which is particularly useful when switching between different PCB models or production runs. By enabling precise width settings, the conveyor ensures that PCBs are held firmly in place throughout the transport process, preventing jamming or misplacement.

Power consumption is a critical consideration in industrial equipment, and the SMT PCB Conveyor is designed to operate efficiently with a maximum power of 100W. This low power requirement not only reduces operational costs but also contributes to a more environmentally friendly manufacturing process. Despite its modest power consumption, the conveyor delivers reliable performance, supporting continuous operation in high-demand SMT production environments.

Integration with other SMT production components is another key advantage of this conveyor. It works seamlessly with Vacuum Loaders, which are responsible for picking and placing PCBs onto the conveyor belt with precision and care. Additionally, it complements Magazine Racks and Magazine Loaders that organize and supply PCBs in batches, streamlining the feeding process. The Conveyor also interfaces effectively with the Connection Station, ensuring coordinated handoffs between different stages of the assembly line for optimal workflow continuity.

Overall, the SMT PCB Conveyor is a versatile and robust solution that enhances the efficiency and reliability of SMT production lines. Its adjustable length, widened pulley design for stable conveying, manual width adjustment, and low power consumption make it an ideal choice for manufacturers seeking to optimize PCB handling. By facilitating smooth transportation and seamless integration with Vacuum Loaders, Magazine Racks, Magazine Loaders, and Connection Stations, this conveyor plays a crucial role in achieving high-quality and high-throughput SMT assembly.

Features:

• Product Name: SMT PCB Conveyor
• User Interface: Touchscreen HMI for easy operation
• Usage: Specifically designed for SMT PCB processing
• Air Supply: 4-6 Kgf/cm² ensuring stable pneumatic performance
• Transmission Type: 10mm synchronous wheel belt drive for smooth and precise movement
• Conveyor Length: Adjustable, typically ranging from 1000 to 3000 mm to fit various production needs
• Integrated Solder Paste Management System to enhance solder paste application accuracy
• Functions as both Conveyor and Connection Station for seamless workflow integration
• Supports efficient Solder Paste Management System for improved production quality

Technical Parameters:

Applications:

The Kutede SMT PCB Conveyor, model number KTD-010, originating from ShenZhen China, is a highly efficient piece of Material Handling Automation Equipment designed specifically for the electronics manufacturing industry. Its advanced PLC control system with a user-friendly touch screen interface ensures precise and reliable operation, making it an ideal solution for modern production lines.

This conveyor is engineered to handle PCB sizes ranging from 80*50mm to 300*120mm, accommodating a wide variety of printed circuit boards. The single track structure is optimized for smooth and stable transport, featuring a 4mm widened pulley that guarantees consistent conveying without slippage or misalignment. Additionally, the conveyor supports PCB thicknesses from 0.4mm up to 5mm, providing flexibility for diverse manufacturing requirements.

In practical application, the Kutede KTD-010 excels as a Conveyor / Connection Station within SMT assembly lines, facilitating seamless transfer of PCBs between different processing stations such as solder paste printing, pick-and-place machines, reflow ovens, and inspection systems. Its robust design and precise control make it an indispensable part of PCB Handling Equipment, improving workflow efficiency and reducing manual handling errors.

This conveyor system is particularly useful in scenarios where high throughput and consistent quality are critical, such as in mass production of consumer electronics, automotive electronics, telecommunications devices, and industrial control systems. Its automation capabilities help reduce labor costs and enhance production speed while maintaining product integrity.

Moreover, the Kutede SMT PCB Conveyor can be integrated into larger automated assembly lines, serving as a key component in Material Handling Automation Equipment setups. Its adaptability to various PCB dimensions and thicknesses, combined with the stable conveying mechanism, ensures reliable performance across different manufacturing environments.

Overall, the KTD-010 model by Kutede is an essential conveyor / connection station solution for electronics manufacturers seeking to optimize PCB handling processes, improve production efficiency, and maintain high-quality standards in their SMT assembly operations.

Customization:

The Kutede SMT PCB Conveyor, model KTD-010, is designed with customizable features to perfectly fit your production line needs. Originating from ShenZhen, China, this conveyor offers an adjustable conveyor width typically ranging from 50 to 350 mm, ensuring compatibility with various PCB sizes. The conveyor length is also adjustable, typically between 1000 to 3000 mm, allowing for flexible integration into existing systems.

Powered with a maximum of 100W, the KTD-010 ensures efficient and stable operation. It features a 4mm widened pulley specification that guarantees stable conveying of PCBs, minimizing the risk of misalignment or damage during transport. The standard track length is 300mm, designed to optimize the flow and handling of your circuit boards.

In addition to the conveyor, Kutede offers product customization services that include integration with Vacuum Loader systems for secure PCB placement, Magazine Rack or Magazine Loader options for organized component feeding, and Buffer Conveyor solutions to manage workflow and prevent bottlenecks. These customizable options enhance productivity and reliability in your SMT assembly process.
