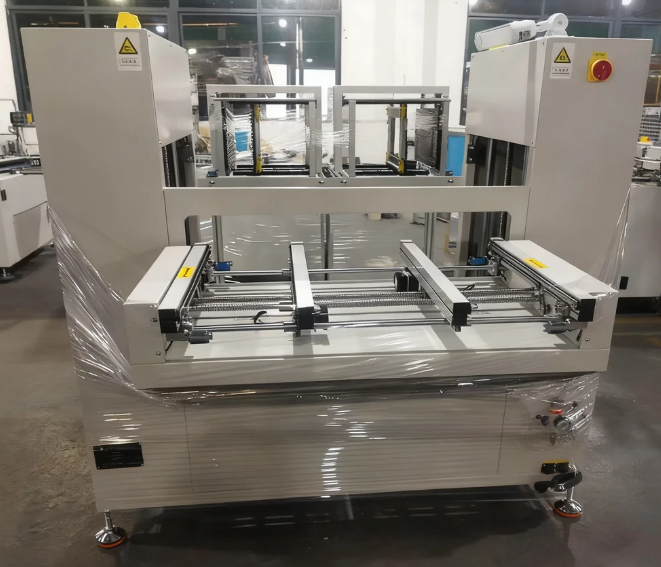

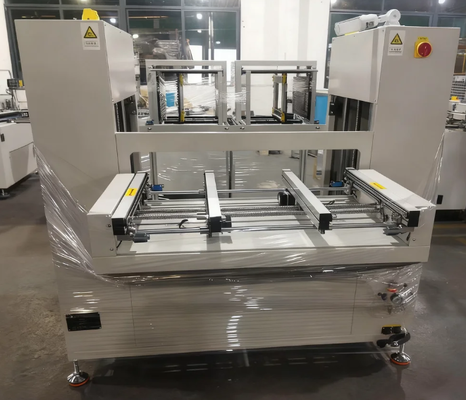

Pcb Size 80 50-300 120mm Component Storage and Feeder System Offering PLC Control Touch Screen Interface for Component Handling

Product Description:

The SMT PCB Conveyor is an essential piece of equipment designed to optimize the workflow within Surface Mount Technology (SMT) production lines. This conveyor system is specifically engineered to facilitate efficient PCB loading and unloading processes, ensuring smooth, continuous movement of printed circuit boards between various stages of assembly. With its robust design and advanced control capabilities, the SMT PCB Conveyor plays a critical role in enhancing productivity and maintaining high-quality standards in electronics manufacturing.

One of the key features of the SMT PCB Conveyor is its adjustable conveyor length, which typically ranges from 1000 mm to 3000 mm. This flexibility allows manufacturers to customize the conveyor setup according to the specific requirements of their production line, accommodating different sizes and volumes of PCBs. The track length of the conveyor is standardized at 300 mm, providing a reliable and consistent platform for PCB transportation. This ensures that the boards are securely held and moved with precision throughout the manufacturing process.

The conveyor system operates efficiently within an air supply range of 4-6 Kgf/cm², which powers the pneumatic components responsible for smooth material handling. This controlled air pressure ensures stable operation and reduces the risk of mechanical failure, contributing to the overall durability and reliability of the conveyor. Additionally, the width adjustment method of this SMT PCB Conveyor is manual, allowing operators to quickly and easily modify the conveyor width to fit different PCB sizes. This manual adjustment capability adds to the system’s versatility, making it adaptable to a wide variety of applications within the SMT production environment.

At the heart of the SMT PCB Conveyor’s operational efficiency is its PLC control system equipped with a touch screen interface. The programmable logic controller (PLC) enables precise control over conveyor speed, start/stop functions, and other critical parameters, ensuring seamless integration with other equipment in the production line. The intuitive touch screen interface simplifies user interaction, allowing operators to monitor and adjust settings effortlessly. This advanced control system not only improves operational accuracy but also reduces downtime by enabling quick troubleshooting and maintenance.

In addition to its primary function as a conveyor, this system complements other essential SMT production equipment such as component storage and feeder systems, as well as cleaning and maintenance equipment. By integrating smoothly with component storage and feeder systems, the SMT PCB Conveyor ensures that components are delivered in a timely and organized manner, supporting uninterrupted assembly processes. Moreover, its compatibility with cleaning and maintenance equipment helps maintain the overall hygiene and operational integrity of the production line, which is vital for producing high-quality electronic assemblies.

The SMT PCB Conveyor is designed with durability and ease of maintenance in mind. Its robust construction minimizes wear and tear, while the modular design facilitates quick access to components for cleaning and maintenance tasks. This ensures that the conveyor remains in optimal condition, reducing the likelihood of production delays caused by equipment malfunction. The system’s user-friendly design and reliable performance make it an indispensable tool for manufacturers seeking to enhance efficiency and product quality in their SMT operations.

In summary, the SMT PCB Conveyor combines flexibility, precision, and advanced control to deliver a reliable solution for PCB loading and unloading tasks within SMT production lines. Its adjustable conveyor length, manual width adjustment, and PLC control with touch screen interface provide users with a customizable and easy-to-use system. By integrating seamlessly with component storage and feeder systems as well as cleaning and maintenance equipment, this conveyor system supports a streamlined and efficient manufacturing process. Whether for small-scale or large-scale production, the SMT PCB Conveyor offers the performance and adaptability needed to meet the demanding requirements of modern electronics manufacturing.

Features:

• Product Name: SMT PCB Conveyor
• Air Supply: 4-6 Kgf/cm²
• Track Structure: Single Track
• PCB Size Compatibility: 80*50 to 300*120 mm
• Width Adjustment Method: Manual Adjustment
• Conveyor Length: Adjustable, typically 1000-3000 mm
• Ideal for use in PCB Handling Equipment
• Suitable for integration with Depaneling Equipment
• Supports efficient Solder Paste Management System

Technical Parameters:

Applications:

The Kutede SMT PCB Conveyor, model number KTD-010, originating from ShenZhen China, is an essential piece of equipment designed to enhance the efficiency and reliability of SMT production lines. This conveyor is widely used in various application occasions where precise and controlled PCB transportation is critical. Its advanced PLC control system with a touchscreen HMI interface ensures seamless operation and easy integration into automated manufacturing environments.

In modern SMT production scenarios, environmental control and ESD protection equipment are crucial to maintain product quality and prevent damage to sensitive components. The Kutede KTD-010 conveyor plays a vital role in these settings by providing a stable and controlled environment for PCB handling. Its ability to transport PCBs with thickness ranging from 0.4 to 5 mm makes it versatile for different board specifications, ensuring smooth and secure conveyance without risking static discharge or contamination.

The conveyor’s standard track length of 300mm is ideal for connection stations within the SMT assembly line. It acts as an efficient conveyor/connection station, linking various process equipment such as pick-and-place machines, reflow ovens, and inspection systems. The KTD-010 facilitates a streamlined workflow, reducing manual handling and minimizing errors, thereby improving production throughput and yield.

Moreover, the Kutede SMT PCB Conveyor is perfectly suited for integration with NG/OK unloaders, enabling automatic sorting of defective and qualified PCBs. This automation greatly enhances the overall production process by allowing quick and accurate separation without interrupting the conveyor flow. The maximum power consumption of 100W ensures energy-efficient operation, making it an environmentally responsible choice for manufacturers aiming to optimize both performance and sustainability.

In summary, the Kutede KTD-010 SMT PCB Conveyor is ideal for application occasions requiring precise PCB transportation, environmental control, and ESD protection. It excels in conveyor and connection station roles within SMT lines and supports NG/OK unloader systems for efficient sorting. Its advanced control system, user-friendly touchscreen interface, and adaptable design make it a reliable and indispensable asset in high-quality PCB assembly environments.

Customization:

Kutede offers customized services for the SMT PCB Conveyor model KTD-010, designed and manufactured in ShenZhen China. This conveyor supports PCB sizes ranging from 80*50mm to 300*120mm with an applicable PCB width of 50~350mm and thickness between 0.4-5 mm, making it ideal for various SMT PCB applications.

With a maximum power of 100W, the KTD-010 ensures efficient and reliable operation in SMT production lines. Our customization services include tailored adjustments to fit specific PCB dimensions and integration with Cleaning & Maintenance Equipment to maintain optimal performance.

Additionally, we provide solutions to seamlessly incorporate the conveyor with Cleaning & Maintenance Equipment and Solder Paste Management System setups, enhancing your manufacturing process by ensuring cleanliness and precise solder paste handling.

Trust Kutede's expertise to deliver a customized SMT PCB Conveyor that meets your production requirements and improves operational efficiency.
