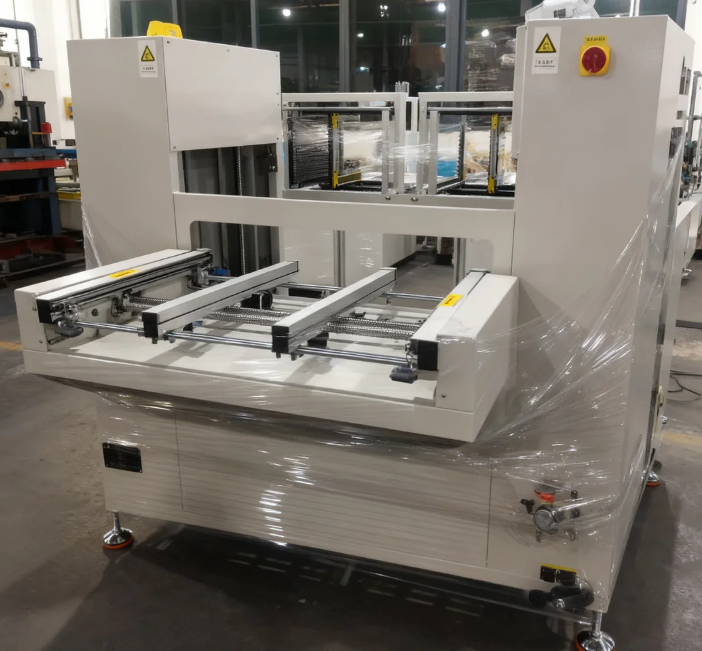

Pcb Size 80x50-330x250mm SMT PCB Conveyor Featuring Conveyor Speed 5 to 60 Meters Per Minute and Manual or Automatic Working Mode for Operation

Product Description:

The SMT PCB Conveyor is a versatile and efficient piece of equipment designed to streamline the manufacturing process in electronics production. As a critical component within PCB Conveying & Connection Equipment, this conveyor system offers exceptional performance by facilitating the smooth and reliable transfer of printed circuit boards (PCBs) between different stages of assembly. Whether you operate in a small workshop or a large-scale production facility, the SMT PCB Conveyor adapts seamlessly to your workflow, enhancing productivity and ensuring consistent handling of delicate PCB components.

One of the standout features of the SMT PCB Conveyor is its dual working mode capability. It can be operated either manually or automatically, providing flexibility to meet diverse operational requirements. The manual mode is ideal for smaller production runs or when precision handling is required, allowing operators to have direct control over the PCB movement. On the other hand, the automatic mode is perfectly suited for high-volume production environments, where continuous and uninterrupted conveyor operation is essential. This two-way working mode ensures that the SMT PCB Conveyor can be integrated into various production lines with ease, accommodating different manufacturing speeds and processes.

The SMT PCB Conveyor supports a wide range of PCB sizes, accommodating boards from as small as 80x50mm to as large as 330x250mm. This broad size compatibility makes it a highly adaptable solution for different types of printed circuit boards, whether they are compact or more extensive assemblies. By catering to this size range, the conveyor ensures that manufacturers can utilize the same equipment across multiple product lines, reducing the need for specialized conveyors and minimizing capital expenditure.

In addition to its operational versatility, the SMT PCB Conveyor is designed with a strong emphasis on safety and environmental control. As part of the Environmental Control & ESD Protection Equipment category, this conveyor incorporates features that protect sensitive electronic components from electrostatic discharge (ESD) damage. ESD protection is crucial in PCB handling to prevent costly defects and ensure product reliability. The conveyor’s materials and structure are carefully selected and engineered to dissipate static electricity effectively, maintaining the integrity of the PCBs throughout the conveying process.

Furthermore, the SMT PCB Conveyor plays an essential role within PCB Loading & Unloading Equipment systems. Its precise and controlled movement allows for easy loading and unloading of PCBs onto and off the conveyor belt, reducing manual handling errors and the risk of damage. This capability not only speeds up the production process but also enhances operator safety and ergonomics by minimizing repetitive and strenuous tasks. The conveyor’s smooth operation contributes to maintaining a steady production flow, which is vital in achieving high throughput and meeting tight manufacturing deadlines.

Operating at a standard voltage of 220V, the SMT PCB Conveyor is compatible with most industrial power supplies, ensuring straightforward installation and integration into existing production setups. The 1-year warranty offers peace of mind, underscoring the product’s reliability and the manufacturer’s commitment to quality. With this warranty, customers can be confident in the durability and long-term performance of the conveyor system.

In summary, the SMT PCB Conveyor is an indispensable tool for modern electronics manufacturing, combining flexibility, reliability, and safety. Its manual and automatic working modes, wide PCB size accommodation, ESD protection features, and integration within PCB Conveying & Connection Equipment, Environmental Control & ESD Protection Equipment, and PCB Loading & Unloading Equipment categories make it a comprehensive solution for efficient PCB handling. Whether you are looking to optimize your production line, reduce damage and defects, or improve operator efficiency, the SMT PCB Conveyor stands out as a smart investment that will enhance your manufacturing capabilities.

Features:

• Product Name: SMT PCB Conveyor
• Direction: L-R / R-L for flexible PCB transfer
• Air Supply: 4-6 Kgf/cm² ensuring stable operation
• Voltage: 220V power requirement
• Equipped with Ioniser for static elimination
• Compatible with Vacuum Loader for efficient PCB handling
• Includes Magazine Rack / Magazine Loader support
• Warranty: 1 Year for quality assurance

Technical Parameters:

Applications:

The Kutede KTD-010 SMT PCB Conveyor, originating from Shenzhen, China, is an essential piece of SMT machine related equipment designed to enhance the efficiency and reliability of PCB handling processes. With a maximum PCB size capacity of 510*460mm, this conveyor is ideal for a wide range of printed circuit board sizes, making it versatile for various production lines. Operating at a voltage of 220V, the KTD-010 offers a variable conveyor speed ranging from 5 to 60 meters per minute, allowing precise control over the movement of PCBs during assembly and inspection phases.

This PCB conveyor is widely used in Inspection & Quality Control Equipment setups, where smooth and consistent transport of PCBs is crucial for accurate testing and defect detection. Its integration into quality control stations ensures that boards are handled delicately and efficiently, reducing the risk of damage or contamination during inspection processes. The conveyor’s steady and adjustable speed supports seamless synchronization with inspection machinery, optimizing throughput and minimizing bottlenecks.

In addition, the Kutede KTD-010 serves as a reliable component of ESD Workstations. Designed with materials and construction that comply with electrostatic discharge (ESD) safety standards, it helps protect sensitive electronic components from static electricity damage. This feature is particularly significant in environments where delicate SMT components require stringent static control to maintain product integrity throughout the assembly line.

Furthermore, as a key part of PCB Conveying & Connection Equipment, this conveyor facilitates the smooth transfer of boards between various SMT process stages such as solder paste printing, pick and place machines, reflow soldering, and final inspection. Its robust build and precise control make it suitable for continuous production environments, ensuring that PCBs are conveyed reliably without misalignment or jamming.

Manufactured in Dongguan, China, the Kutede KTD-010 SMT PCB Conveyor combines advanced engineering with practical features tailored for modern electronics manufacturing. Its adaptability, speed control, and ESD compliance make it an indispensable tool for factories aiming to improve production efficiency, maintain high quality standards, and safeguard sensitive components throughout the SMT assembly process.
