SMT SERIES PCB Conveyor Machine for Semiconductor Upper Plate Collector 245Kg

Product Details:
Place of Origin:	Shenzhen ,China
Brand Name:	TOP-KING
Certification:	ISO9001:2008;RoHS
Model Number:	CHT-BGA-1000C
Payment & Shipping Terms:
Minimum Order Quantity:	Five channels
Price:	Negotiation
Packaging Details:	Film at inner,10 pcs one bundle,packing in woven bag.
Delivery Time:	15-20 working day after received the deposit(The actual situation according to the quantity)
Payment Terms:	T/T
Supply Ability:	1000 channels per day

Contact Now

Detail Information
Product Description

Detail Information
PCB Size(L*W):	80x50-300x120mm	PCB Direction:	L-R/R-L
PCB Hight:	900±20mm	Material Box Sizes (LWH):	50x80x100-300x150x400
Weight:	245Kg	Boundary Dimension (L%22W%22H):	1000x925x1460mm
Highlight:	245Kg PCB Conveyor Machine , Upper Plate Collector PCB Conveyor Machine , Semiconductor PCB Conveyor Machine

Product Description

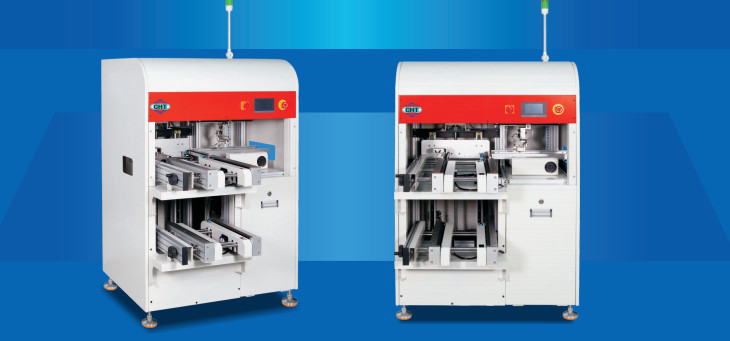

SMT SERIES PCB CONVEYOR MACHINE/Semiconductor Upper Plate Collector

Features

Semiconductor, production line board board device

PLC control, color HMl cperation system

Adopt cylinder dlamp plate, compatible with circuit boards of various materials

Auxilary positioning braking system, accurate positioning, fast lifting speed and high production efficiency

Multipls slectrical distribution circuit protection, safe and relliable

Sound and light alarm system, abnormall information text prompts, easy operation and maintenance

Standard SMEMA signal communication

Technical Parameters

Descriction	Used to automatically send circuit boards to the production line
No.of magazine	Upper conveyor:2-4nos. Lower conveyar:2-4nos.
Time for feed PCBs	Approx. 6 seconds or speaified by customer
Magazine change ower time	Approx.35 seconds or specified by customer
Indexing pitch	10.20.30.40 mm pitch or specified by customer
Power supply and ellectric load	220V(AC,SP)300VA max
Air pressure and air fllow	4-6bar, Up to 0.1min /Up to min/0.2 min
Thickness of PBCs	0.6mm min

Our Company:

Shenzhen Jingji Technology Co., Ltd. Is a professional manufactuer for design, production and sale of industrial storage equipment, flexible production equipment, automation equipment and other kinds of instruments and gauges. beside, the company distributes anti-static peripherals.
We provide a comprehensive logistics plan in order to avoid waste of resources in course of purchase and supply chain by manufactures. It is our ultimate goal to provide all customers with full service, to meet exact demands of customers. To improve product quality, and to enhance customer satisfaction storage annd logistics as in automation industy.

Our service
If you have any questions or needs,just please feel free to contact us any time,
