SMT PCB Conveyor Machine with PLC Control Adjustable Speed and SMEMA Standard for Efficient PCB Handling
SMT PCB Conveyor Machine with PLC Control Adjustable Speed and SMEMA Standard for Efficient PCB Handling
SMT PCB Conveyor Machine with PLC Control Adjustable Speed and SMEMA Standard for Efficient PCB Handling SMT PCB Conveyor Machine with PLC Control Adjustable Speed and SMEMA Standard for Efficient PCB Handling

SMT PCB Conveyor Machine with PLC Control Adjustable Speed and SMEMA Standard for Efficient PCB Handling

Product Details:
Place of Origin: Shenzhen ,China
Brand Name: TOP-KING
Certification: ISO9001:2008;RoHS
Model Number: CHT-CLD-303H
Payment & Shipping Terms:
Minimum Order Quantity: Five channels
Price: Negotiation
Packaging Details: Film at inner,10 pcs one bundle,packing in woven bag.
Delivery Time: 15-20 working day after received the deposit(The actual situation according to the quantity)
Payment Terms: T/T
Supply Ability: 1000 channels per day
Contact Now
  • Detail Information
  • Product Description

Detail Information
PCB Size(L*W): 80x50-330x250mm PCB Direction: L-R/R-L
PCB Hight: 900±20mm MateriaI Box Sizes(L*W*H): 355*320x565mm
Weight: 205Kg Boundary Dimension (L%22W%22H): 1380x760x1120mm
Condition: New Standard: SMEMA
Transmission Height: 900±50mm (Adjustable) Pcb Width Range: 50～460mm
Speed: 0.5 - 20 Meters Per Minute (adjustable) Loadcapacity: Up To 5 Kg Per PCB
Usage: SMT Control System: KEWEI PLC And Panasonic Sensor
Pcb Width: 60～460mm Pcb Transmission Time: 8-15s/pcs
Controlmethod: Manual Or Automatic Control Working Mode: Manual, Automatic
Air Supplly: 4-6Kgf/cm² Approximate Weight: 60KG
Type: SMT Machine Related Products
Highlight:

SMT SERIES PCB CONVEYOR MACHINE

,

Automatic Unloader PCB CONVEYOR MACHINE

,

SMT SERIES PCB CONVEYOR

Product Description

SMT PCB Conveyor

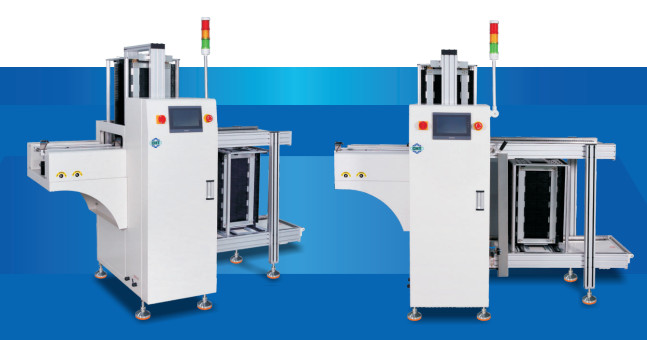

Designed to collect circuit boards from production line with upper and lower conveyor magazine system
Product Overview
SMT SERIES PCB CONVEYOR MACHINE / Automatic Unloader - A specialized closing device for SMT production lines featuring advanced automation and safety systems.
Key Features
  • SMT production line circuit board closing device
  • PLC control with color HMI operation system
  • Stepping motor push plate structure with adjustable pushing speed
  • Auxiliary positioning braking system for accurate positioning and fast lifting
  • Multiple electrical distribution circuit protection for safety and reliability
  • Sound and light alarm system with text prompts for easy operation and maintenance
  • Standard SMEMA signal communication
Technical Parameters
Description Used to collect circuit boards from the production line
Number of Magazines Upper conveyor: 2 nos. Lower conveyor: 2 nos.
Feed Time for PCBs Approx. 6 seconds or specified by customer
Magazine Changeover Time Approx. 35 seconds or specified by customer
Indexing Pitch 10, 20, 30, 40 mm pitch or specified by customer
Power Supply & Electric Load 220V (AC, SP) 300VA max
Air Pressure & Air Flow 4-6 bar, Up to 0.2/min
Thickness of PCBs 0.6mm minimum
Model Specifications
Model Name S-CHT M-CHT L-CHT XL-CHT
PCB Size (L×W) 80×50-330×250mm 80×50-460×330mm 80×50-510×390mm 80×50-510×460mm
Material Box Size (L×W×H) 355×320×565mm 460×400×565mm 535×460×570mm 535×530×570mm
Weight 205Kg 235Kg 265Kg 285Kg
Boundary Dimension (L×W×H) 1380×760×1120mm 1690×860×1120mm 1940×1000×1120mm 1940×1070×1120mm
