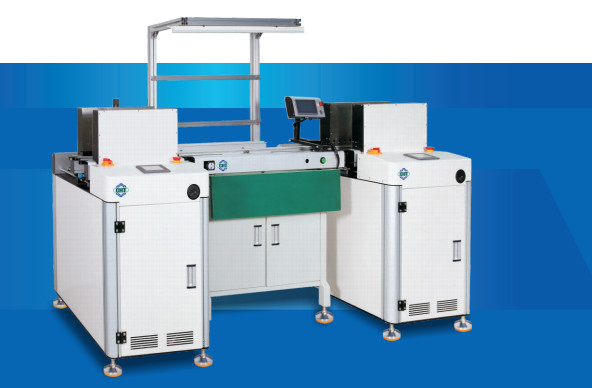

High Capacity PCB Conveyor Machine/ Destacker Bare Board Loader for PCB Hight 900±20mm 195Kg

Product Details:
Place of Origin:	Shenzhen ,China
Brand Name:	TOP-KING
Certification:	ISO9001:2008;RoHS
Model Number:	CHT-CVP-600LD
Payment & Shipping Terms:
Minimum Order Quantity:	Five channels
Price:	Negotiation
Packaging Details:	Film at inner,10 pcs one bundle,packing in woven bag.
Delivery Time:	15-20 working day after received the deposit(The actual situation according to the quantity)
Payment Terms:	T/T
Supply Ability:	1000 channels per day

Contact Now

Detail Information
Product Description

Detail Information
PCB Size(L*W):	80x50-390x330mm	PCB Direction:	L-R/R-L
PCB Hight:	900±20mm	Weight:	195Kg
Boundary Dimension (L%22W%22H):	700x880x1235mm
Highlight:	Bare Board PCB Conveyor Machine , Destacker PCB Conveyor Machine , High Capacity PCB Conveyor Machine

Product Description

SMT SERIES PCB CONVEYOR MACHINE/ Vacuum Bare Board Loader

Features

Top board device of SMT production line cirouit board

PLC control, color HMI operation system

Using multiple independent vacuum generating systems, stable and reliable adsorption

The platform platform automatically rises and falls to get to work faster

PLC control system, multiple electrical circuit protection design which are security and stability

Sound and light alarm system, abnormal information text prompts, easy operation and maintenance

Standard SMEMA signal communication

Technical Parameters

Description	Used to automatically send circuit boards to the production line
Time for feed PCBs	Approx. 8 seconds or specified by customer
Board maximum capacity	200pcs(0.6mm thick PCB)
power supply and electric load	220V(AC,SP)120VA max
Air pressure and air flow	4-6bar, Up to 30L/min
Thickness of PBCs	0.6mm min

specification parameter

Ten name of the	CHT330	CHT-460
PCB Size(L*W)	80x50-390x330mm	80x50-510x460mm
Weight	195Kg	205Kg
Boundary dimension (LWH)	600x790x1170mm	600x900x1170mm
