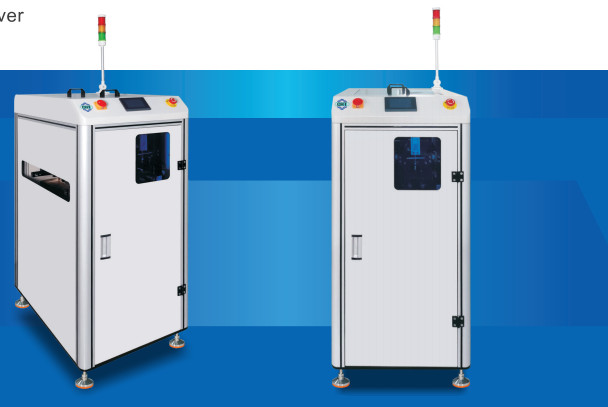

SMT PCB Conveyor Machine with PLC Control, Color HMI System, and Patented Coupled Drive Structure
SMT PCB Conveyor Machine with PLC Control, Color HMI System, and Patented Coupled Drive Structure
SMT PCB Conveyor Machine with PLC Control, Color HMI System, and Patented Coupled Drive Structure SMT PCB Conveyor Machine with PLC Control, Color HMI System, and Patented Coupled Drive Structure

SMT PCB Conveyor Machine with PLC Control, Color HMI System, and Patented Coupled Drive Structure

Product Details:
Place of Origin: Shenzhen ,China
Brand Name: TOP-KING
Certification: ISO9001:2008;RoHS
Model Number: CHT-CBF-600H
Payment & Shipping Terms:
Minimum Order Quantity: Five channels
Price: Negotiation
Packaging Details: Film at inner,10 pcs one bundle,packing in woven bag.
Delivery Time: 15-20 working day after received the deposit(The actual situation according to the quantity)
Payment Terms: T/T
Supply Ability: 1000 channels per day
Contact Now
  • Detail Information
  • Product Description

Detail Information
PCB Size(L*W): 80x50-510x350mm PCB Direction: L-R/R-L
PCB Hight: 900±20mm PCB Time: 8-15S/pcs
Weight: 205Kg Boundary Dimension (L%22W%22H): 600x705x1355mm
Host Materials: Aluminum Profiles Machine Type: Single-Track Folding Conveyor
Conveyortype: Belt Conveyor Width: 0-350mm
Warranty: 1-year Full Machine Warranty Width Adjustment Method: Manual Adjustment
Working Mode: Manual / Automatic Two Ways Overall Dimensions: 600×700×1000mm
Pcb Width: 50～350mm (Adjustable) Shipping Speed: 0-2.7M/Min
Guide Rail: Profile Aluminum Alloy Productname: SMT PCB Conveyor
Conveyorlength: 500mm To 3000mm (customizable)
Highlight:

SMT Series PCB Conveyor Machine

,

Dust Remover PCB Conveyor Machine

,

900±20mm PCB Conveyor Machine

Product Description

SMT PCB Conveyor with PLC Control and Patented Drive Structure
Product Overview

SMT Series PCB Conveyor Machine/Dust Remover featuring PLC control with color HMI system and patented coupled drive structure for SMT process PCB cleaning applications.

Key Features
  • PLC control with Color HMI operation system
  • Standard SMEMA signal communication
  • Applicable to SMT process PCB cleaning after AI process
  • Roller and brush can be cleaned independently with flexibility
  • Optional vacuum cleaning capability
  • Patented coupled drive structure for better machine operation and longer component life
  • Roller set and support group drawer design for easy operation and maintenance
Technical Parameters
Application Used between the upper plate and printer, suitable for AI and SMT process cleaning needs, or very high standard cleaning requirements
Brush Speed Stepping motor 200~1200 rev/min (Data setting)
Power Supply & Load 1P 3W AC 220V 50/60Hz, Power: 50W
Air Pressure & Flow 4-6 Kg/cm², Intake pipe size: 8mm
PCB Thickness 0.7-3mm minimum
Specification Parameters
Model Name CHT330 CHT-460
PCB Size (L×W) 80×50-510×350mm 80×50-610×460mm
Weight 205Kg 225Kg
Boundary Dimension (L×W×H) 600×705×1355mm 600×815×1235mm
Our Company

Shenzhen Jingji Technology Co., Ltd. is a professional manufacturer specializing in the design, production, and sale of industrial storage equipment, flexible production equipment, automation equipment, and other kinds of instruments and gauges. The company also distributes anti-static peripherals.

We provide comprehensive logistics planning to avoid waste of resources in the course of purchase and supply chain management. Our ultimate goal is to provide all customers with full service, meet exact customer demands, improve product quality, and enhance customer satisfaction in storage, logistics, and automation industries.

If you have any questions or needs, please feel free to contact us anytime
