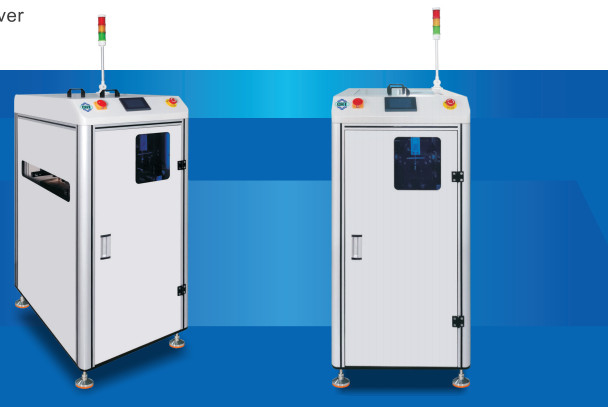

SMT Series PCB Conveyor Machine with Dust Remover 900±20mm Hight 205Kg
SMT Series PCB Conveyor Machine with Dust Remover 900±20mm Hight 205Kg

SMT Series PCB Conveyor Machine with Dust Remover 900±20mm Hight 205Kg

Product Details:
Place of Origin: Shenzhen ,China
Brand Name: TOP-KING
Certification: ISO9001:2008;RoHS
Model Number: CHT-CBF-600H
Payment & Shipping Terms:
Minimum Order Quantity: Five channels
Price: Negotiation
Packaging Details: Film at inner,10 pcs one bundle,packing in woven bag.
Delivery Time: 15-20 working day after received the deposit(The actual situation according to the quantity)
Payment Terms: T/T
Supply Ability: 1000 channels per day
Contact Now
  • Detail Information
  • Product Description

Detail Information
PCB Size(L*W): 80x50-510x350mm PCB Direction: L-R/R-L
PCB Hight: 900±20mm PCB Time: 8-15S/pcs
Weight: 205Kg Boundary Dimension (L%22W%22H): 600x705x1355mm
Highlight:

SMT Series PCB Conveyor Machine

,

Dust Remover PCB Conveyor Machine

,

900±20mm PCB Conveyor Machine

Product Description

SMT SERIES PCB CONVEYOR MACHINE/Dust Remover



Features



PLC control, Color HMl operation system

Standard SMEMA sianal communication

Can be applied to SMT process PCB cleaning after Al, roller, brush can be cleaned independently, flexibility, optional vacuum cleaning

Patented coupled drive structure for better machine operation and longer component life

Roller set and support group drawer design for easy operation and maintenance



Technical Parameters



Description Used between the upper plate and the printer, suitable for AI and SMT process cleaning needs, or very high standard cleaning requirements
Brush speed Stepping motor 200~1200 rev/min(Data setting)
power supply and electric load 1P 3W AC 220 50/60Hz  Power:50W
Air pressure and air flow

4-6Kg/cm2, Intake pipe size 8mm

Thickness of PBCs 0,7-3mm min



specification parameter



Ten name of the  CHT330 CHT-460
PCB Size(L*W) 80x50-510x350mm

80x50-610x460mm

Weight 205Kg 225Kg
Boundary dimension (L*W*H)

600x705x1355mm

600x815x1235mm



Our Company:



Shenzhen Jingji Technology Co., Ltd. Is a professional manufactuer for design, production and sale of industrial storage equipment, flexible production equipment, automation equipment and other kinds of instruments and gauges. beside, the company distributes anti-static peripherals.
We provide a comprehensive logistics plan in order to avoid waste of resources in course of purchase and supply chain by manufactures. It is our ultimate goal to provide all customers with full service, to meet exact demands of customers. To improve product quality, and to enhance customer satisfaction storage annd logistics as in automation industy.
