This anti-static belt conveyor line is built as a modular transport backbone for workshops that assemble, test and pack electronic products. Workstations are linked by one continuous anti-static PVC belt mounted on an aluminium profile frame, so boards, sub-assemblies and finished units move from station to station without being carried by hand and without picking up static charge along the way.

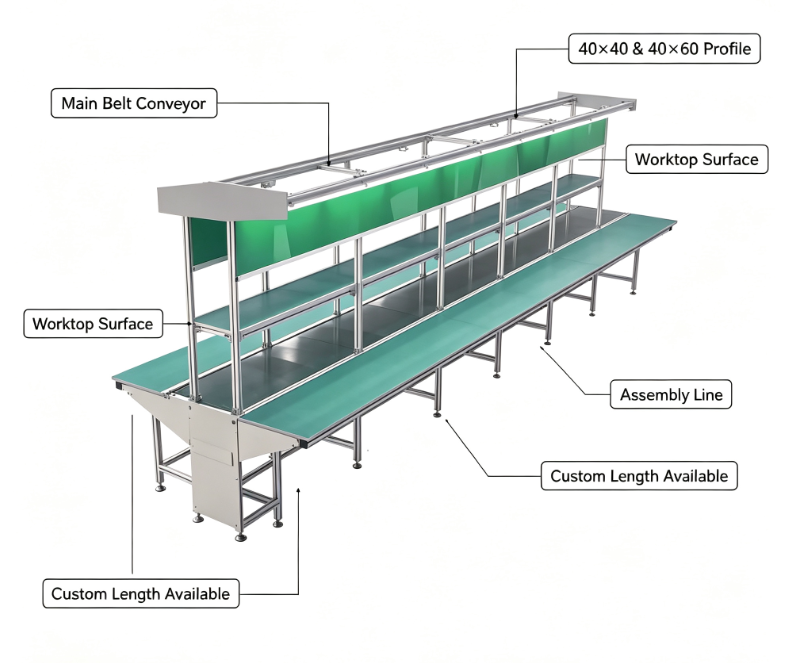

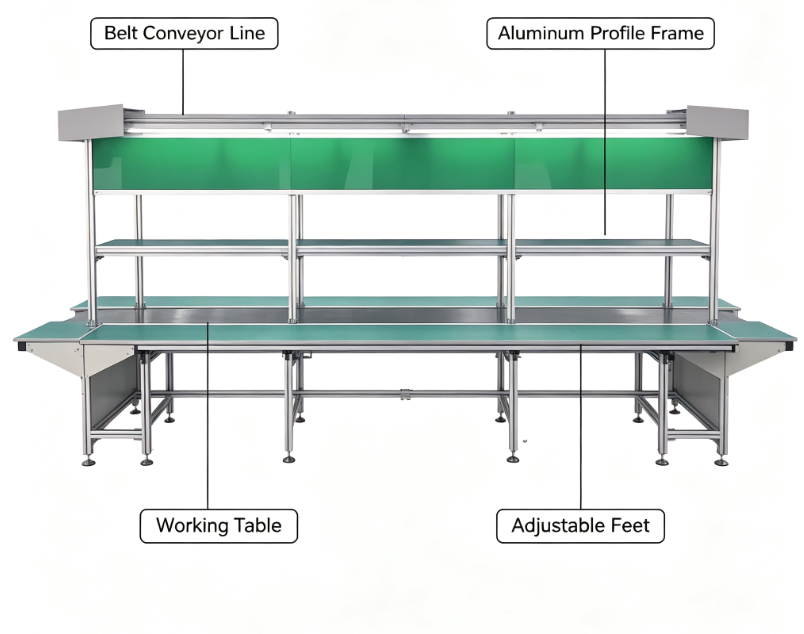

The frame is assembled from 40*60, 40*70 or 40*80 aluminium profile selected to suit the belt width and the load it carries. Aluminium keeps the structure rigid and rust-free while allowing the line to be re-cut, extended or re-routed later, which is difficult once a welded steel frame has been fixed in place. Levelling feet under each leg let the team correct height differences on an uneven workshop floor so the belt stays flat over its whole run.
Three drive modes cover most production styles. Continuous mode runs the belt without stopping for steady flow between stations; beat mode advances the belt in timed steps that match a fixed takt time; variable speed mode lets the operator raise or lower belt speed to balance a bottleneck station. The anti-static PVC belt dissipates accumulated charge, which matters where PCBA boards, chip trays and sensor modules are handled and any invisible ESD event would only show up later at functional test.

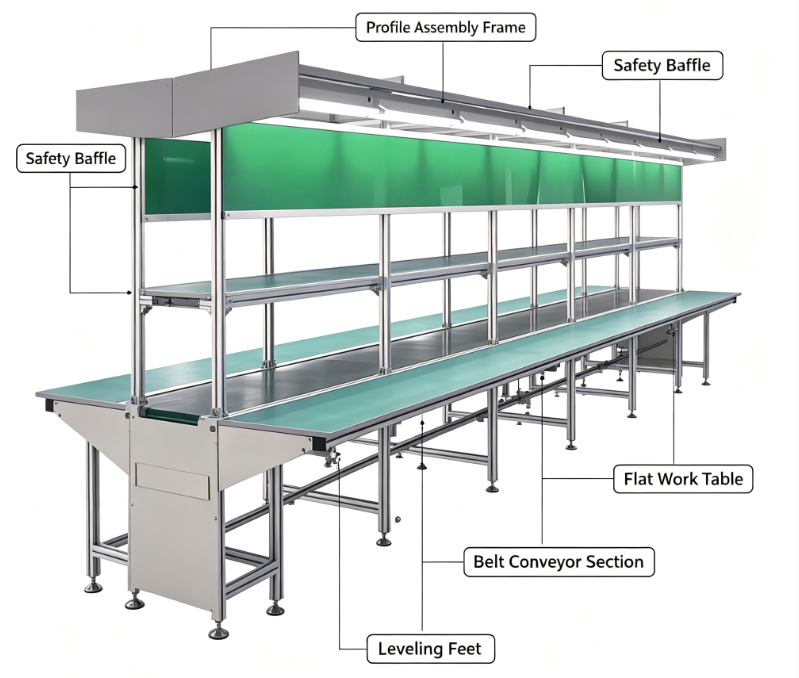

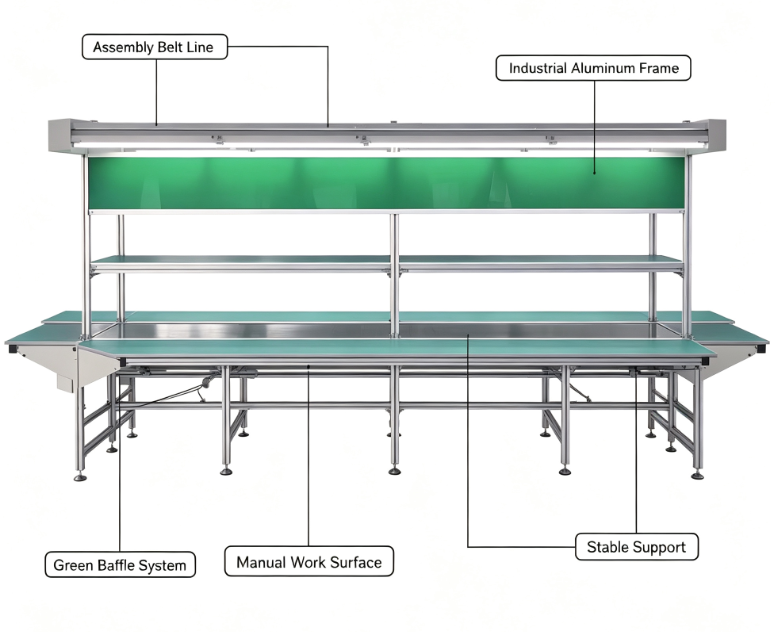

Line geometry is made to your workshop drawing. Straight runs suit long assembly benches, curve sections carry the line around a pillar or corner, and inclined sections raise or lower the transport height between two production levels. Guardrails, side work surfaces, green anti-static baffles, LED lighting bars and storage racks can be added so each station works as a complete manual assembly point rather than a bare conveyor.
Typical installations include consumer electronics assembly, home appliance production, electromechanical product build, food and light industry packing, and in-house logistics between departments. Because the same frame accepts different belt widths and accessories, one line can be delivered as a single short section and later extended with additional modules as output grows.
Key Features
- Anti-static PVC belt drains static charge before it reaches sensitive components
- Aluminium profile frame in 40*60 / 40*70 / 40*80, rigid, rust-free and easy to extend
- Three operation modes: continuous, beat (takt) and variable speed running
- Flexible geometry: straight, curve and inclined sections combined to suit the floor plan
- Adjustable levelling feet keep the belt flat on uneven factory floors
- Station add-ons: side workbench, anti-static baffle, LED light bar, storage rack
- Made-to-order sizing: length, width, working height and speed range set to your process
- Low noise drive with simple belt tensioning and routine maintenance access
Technical Specifications (Standard Version, All Customizable)
| Parameter | Detail |
|---|
| Product Name | Anti-static Belt Conveyor Line |
| Frame Material | Aluminium Profile, 40*60 / 40*70 / 40*80 optional |
| Belt Material | Anti-static PVC Belt, belt thickness and colour customizable |
| Conveyor Length / Width | Custom, built to line drawing |
| Working Height | Customizable with adjustable levelling feet |
| Operation Mode | Continuous / Beat / Variable Speed |
| Line Shape | Straight / Curve / Slope |
| Application | Electronics, electrical appliance, food, light industry assembly and packing |
| Optional Accessories | Anti-static workbench, green baffle, LED lamp, storage rack |
| MOQ / Delivery | 1 set / 15-20 working days after deposit |
Application Scenarios
Electronic component and PCBA assembly lines, home appliance build lines, electromechanical product assembly, food and light industry packing, and internal workshop transport between departments. The anti-static belt makes the line suitable for ESD-sensitive production where boards and modules are handled directly on the conveyor.
Notes
Before ordering: confirm belt length, width, working height and the number of stations against your layout drawing; a solution drawing is issued for approval before production. During use: clean dust from the belt regularly, check belt tension and motor mounting at planned intervals, and keep the anti-static belt free of oil and solvent that would reduce its conductive performance.
Line Layout & Installation Service
We plan the belt line to your workshop dimension and station layout and issue a free drawing covering section length, straight, curve or slope segments, working height and accessory positions. 40x60, 40x70 or 40x80 aluminium profile frames arrive in numbered sections with an installation guide and remote commissioning.
Speed, Drive & Load Configuration
Variable speed conveyor control runs through a geared motor conveyor with inverter control, and continuous, beat mode conveyor or variable speed conveyor operation is selected on the panel. Belt width and drive motor power are matched to product weight and station count.
Operation, Maintenance & Energy Use
Anti-static PVC belt and aluminium frame run at low noise conveyor level, with energy efficient motor for low power consumption. Easy maintenance conveyor design provides belt tension adjustment from the side rail, quick belt replacement and spare parts availability for belts and controllers.
Certification, Warranty & Spare Parts
The line is produced under an ISO 9001 quality system, with anti-static belt test data and electrical declarations issued alongside the packing list. A 12-month warranty covers frame, drive motor and controls with remote support for tracking and ESD checks.
Lead Time, Order Terms & Packing
Minimum order 1 set, one set customization and OEM conveyor line branding available. Delivery time 15-20 days at 500 sets monthly production capacity, short lead time assembly line support on request. Export wooden case packing, pallet packing and container loading from our own production line.
Application & Industry Fit
Suits electronics assembly line and appliance assembly line transport, battery production line module handling, and light food packaging conveyor line sections.
Workstation & Ergonomic Configuration
Stations can be fitted with led lighting assembly line bars, a cooling fan workstation, power socket strip, parts bin bracket and tool hanging rail on the 40x60 to 40x80 profile. Working height is adjustable between 750 and 1100mm for an ergonomic assembly line posture through the adjustable height conveyor feet.
Safety Protection & Line Integration
Belt return and drive are covered by safety guardrail conveyor panels and a semi closed conveyor design, with pinch point protection at the transfer points and emergency stop conveyor buttons at each end. The line offers roller track compatibility for feed racks, lean tube connection brackets, and ce certified conveyor documentation on request.
