Product Description
Product Description

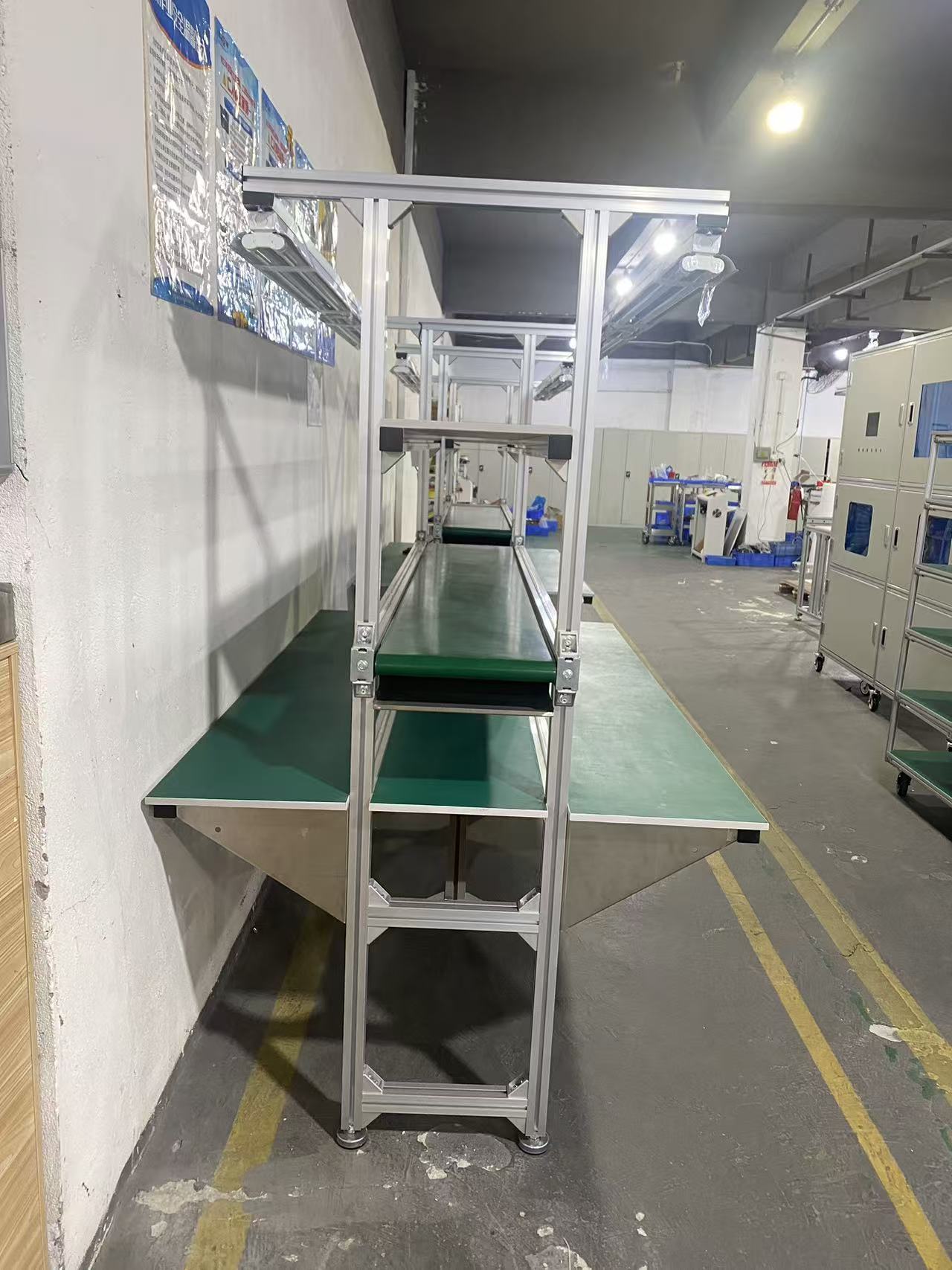

The standard belt-type assembly line is a classic industrial conveying system. It is equipped with an aluminum frame and a green anti-static belt design, enabling continuous and smooth transportation of products during assembly, inspection, packaging and other processes. This production line has a stable structure and strong scalability, and is widely applicable to various light product assembly lines. It is a fundamental conveying solution for factories to enhance production efficiency.
Product features
High-strength aluminum alloy profile frame, lightweight yet sturdy and durable
Green wear-resistant and anti-static belts, with a smooth surface, reducing product sliding and scratching
Multi-layer structure design (available in double or triple layers), fully utilizing vertical space
Top LED lighting strip, enhancing operational visibility
Modular assembly method, allowing for flexible extension or shortening of the structure according to the site
Adjustable bottom foot cups, ensuring stable installation and adaptability to uneven ground
Product advantages
Simple and reliable structure: Quick installation, convenient daily maintenance
Smooth transportation: Low noise during belt operation, suitable for long-term continuous operation
Economical cost: High value for money, suitable for medium and large-scale standardized production
High space utilization: Multi-layer design effectively saves workshop area
High compatibility: Easy to connect with workbenches, testing equipment, etc.
Application scenario
Electronic product assembly line (such as chargers, cables)
Assembly line for small household appliances, plastic products, packaging products
Pre-assembly section for automotive components
General industrial product production conveyance
Line Layout & Installation Service
Standard belt lines are planned around your assembly stations, with a free layout drawing showing section lengths, support positions and working height. Single sections of 3 to 10 metres splice on site, so the line extends later without new fabrication, and installation is commissioned remotely.
Speed, Drive & Load Configuration
Variable speed conveyor control from 0 to 20 m/min through an AC 220V geared motor conveyor with infinitely variable inverter control gives accurate variable speed conveyor setting. Process load reaches 50kg per metre, with drive motor power matched to line length.
Operation, Maintenance & Energy Use
Belt and roller bed run at low noise conveyor level, with energy efficient motor for low power consumption. Easy maintenance conveyor design provides belt tension adjustment at the tail pulley, quick belt replacement and spare parts availability for belts, rollers and bearings.
Certification, Warranty & Spare Parts
The line is produced under an ISO quality system, with electrical components supplied with nameplate data and compliance documentation for export. A 12-month warranty covers frame, belt and drive motor with remote calibration support.
Lead Time, Order Terms & Packing
Minimum order 1 set, one set customization and OEM conveyor line branding available. Delivery time 15-20 days at three sets weekly monthly production capacity, short lead time assembly line support on request. Export wooden case packing and container loading from our own production line.
Application & Industry Fit
Used across electronics assembly line and appliance assembly line stations, appliance packing, and as standard transport sections feeding a food packaging conveyor line.
Workstation & Ergonomic Configuration
Stations take led lighting assembly line bars, power socket strip, parts bin bracket and tool hanging rail, with an optional cooling fan workstation at manual assembly points. Working height is set for an ergonomic assembly line reach, with adjustable height conveyor legs correcting floor unevenness.
Safety Protection & Line Integration
Belt edges and drive are covered by safety guardrail conveyor panels and pinch point protection guards, with a semi closed conveyor design over the return side and emergency stop conveyor buttons at both ends. Lean tube connection brackets join side benches and roller track compatibility allows feeding from existing racks.
