Our anti-static curved belt conveyor assembly line is a customized modular conveying system, widely used in electronic assembly, component testing, finished product packaging, semi-finished goods circulation and cleanroom workshop production. This turning conveyor solves the problem of limited workshop space, allowing production lines to turn and form closed-loop continuous production without extra material handling.
Belt & Anti-static Performance
The conveyor belt adopts high-quality green anti-static PVC material. The surface resistance of the belt is controlled within standard anti-static range, which can continuously and safely release static electricity generated by friction between products and belt surface during assembly. It effectively prevents electrostatic discharge (ESD) damage to sensitive electronic chips, circuit boards and precision components, reduces product scrap rate and improves production yield. The belt is wear-resistant, anti-slip, flexible, easy to clean and maintain. Custom colors and anti-static grades are available for different industry requirements.
Frame & Structure
The whole rack is assembled by industrial extruded aluminum alloy profiles. Aluminum profile features high structural rigidity, light weight, anti-rust and corrosion resistance. Unlike welded carbon steel frames, this modular structure requires no on-site welding. It can be quickly assembled, disassembled or re-adjusted if you change your workshop layout later.

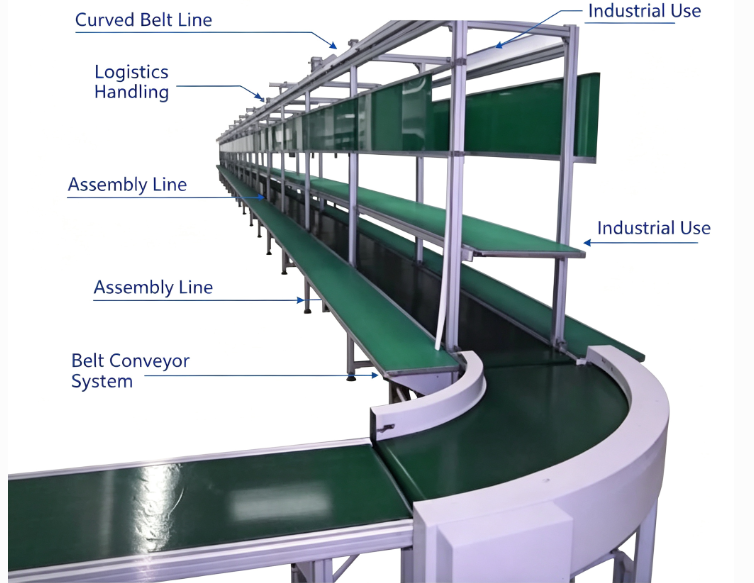

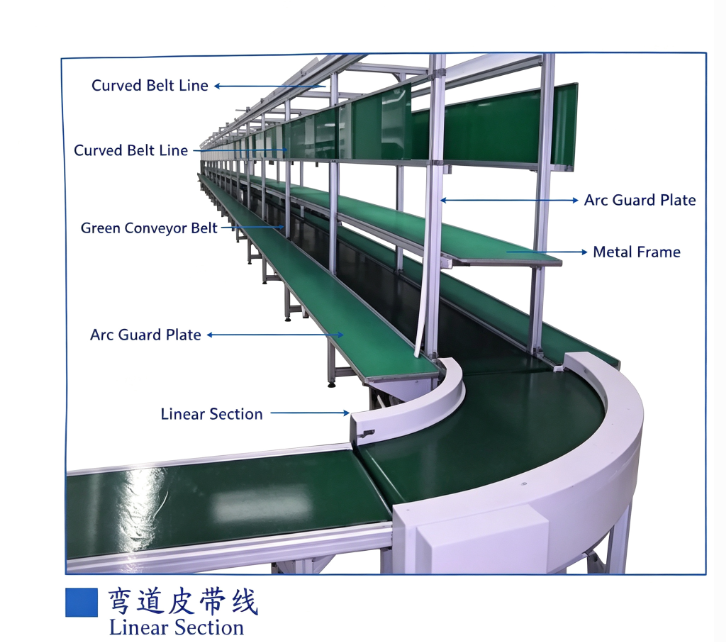

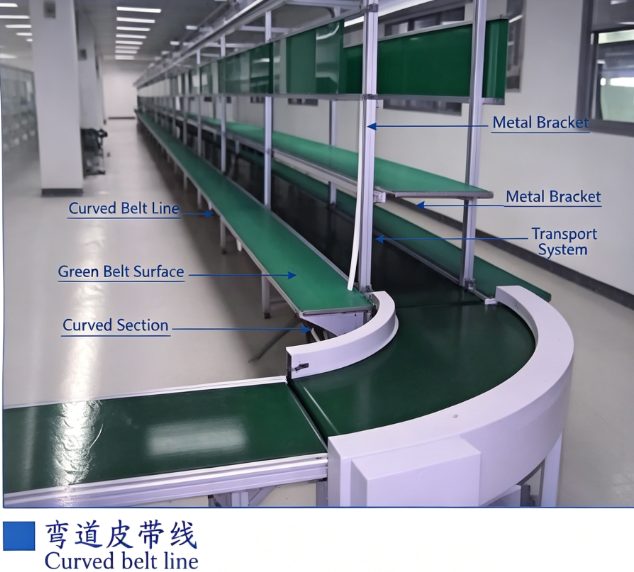

We supply 90° and 180° curved turning sections, which connect straight conveyor sections seamlessly. The curved part adopts special turning roller group design to avoid belt deviation, belt wrinkling or slipping during continuous operation. Double-layer structure is optional, which can realize upper and lower layer independent conveying for material circulation and return.
Drive & Control System
Equipped with variable frequency speed regulating motor and reducer. The conveying speed can be continuously adjusted from 0.1 m/min to 5 m/min, to match your different production cycle takt. The whole line runs smoothly, low vibration and low noise. Emergency stop button, overload protection and safety guard can be installed for operation safety.
Optional Accessories
We support adding matching accessories according to your demand: anti-static side workbench, hanging lamp bracket, material storage rack, anti-static baffle, part placement box, power socket, dust cover, foot cup for height leveling. Workers can finish assembly, inspection and testing directly on the side workbench of the conveyor line.
Customization Service
We provide full one-stop customization service. Belt width, total line length, turning radius, working height, motor power, single/double layer structure, belt color, anti-static level, accessory configuration can all be customized based on your factory drawing, workshop dimension and production process.
Our Service
Our technical team offers pre-sales workshop layout planning, 2D/3D drawing design, project quotation. We supply installation guide, operation manual and long-term after-sales technical support. We can also arrange remote video guidance for equipment commissioning.
Line Layout & Installation Service
Curved lines are planned around turning angle and aisle width, with a free drawing showing 90 or 180 degree radius, working height between 750 and 1200mm and belt width inside the turn. Frame and curve modules arrive pre-assembled to the drawing, and installation is commissioned remotely.
Speed, Drive & Load Configuration
Variable speed conveyor control from 0.1 to 5 m/min through a geared motor conveyor with inverter control gives smooth transfer round the curve. Belt width runs 100 to 800mm, and beat mode conveyor stopping can be set at each station along the turn.
Operation, Maintenance & Energy Use
Anti-static belt and aluminium frame keep operation at low noise conveyor level, with energy efficient motor achieving low power consumption. Easy maintenance conveyor design covers belt tension adjustment on the curve and spare parts availability for belts, rollers and frequency controllers.
Certification, Warranty & Spare Parts
The curved line is produced under an ISO quality system with anti-static belt resistance and electrical component data supplied for audit. A 12-month warranty covers frame, curve module and drive unit, with remote support for tracking on curves.
Lead Time, Order Terms & Packing
Minimum order 1 set, one set customization and OEM conveyor line branding available. Delivery time 15-20 days after deposit at 500 sets monthly production capacity, short lead time assembly line supply on request. Export wooden case packing and container loading from our own production line.
Application & Industry Fit
Fitted where floor space forces a turn in an electronics assembly line, appliance assembly line corner sections, semiconductor production line cleanroom routing, and test areas feeding a packaging station.
Workstation & Ergonomic Configuration
Curve and straight stations both take led lighting assembly line bars, power socket strip, parts bin bracket and tool hanging rail, with a cooling fan workstation option at soldering points. Working height ranges 750 to 1200mm as an ergonomic assembly line setting, adjustable through the adjustable height conveyor legs.
Safety Protection & Line Integration
Curve modules carry safety guardrail conveyor panels on the outside radius and pinch point protection at the belt return, with a semi closed conveyor design and emergency stop conveyor buttons at both ends. The line connects to lean tube connection frames and roller track compatibility, and ce certified conveyor documents are available for EU projects.
