JJ-ESD600 ESD Anti-Static Belt Conveyor Assembly Line Workbench
JJ-ESD600 anti-static belt assembly line is a modular production workstation specially designed for electronic manufacturing workshops. It combines continuous material conveying function with manual operation stations, widely adopted for consumer electronics assembly, PCB soldering, lithium battery assembly, precision component inspection and finished goods packaging.
Frame & Structure

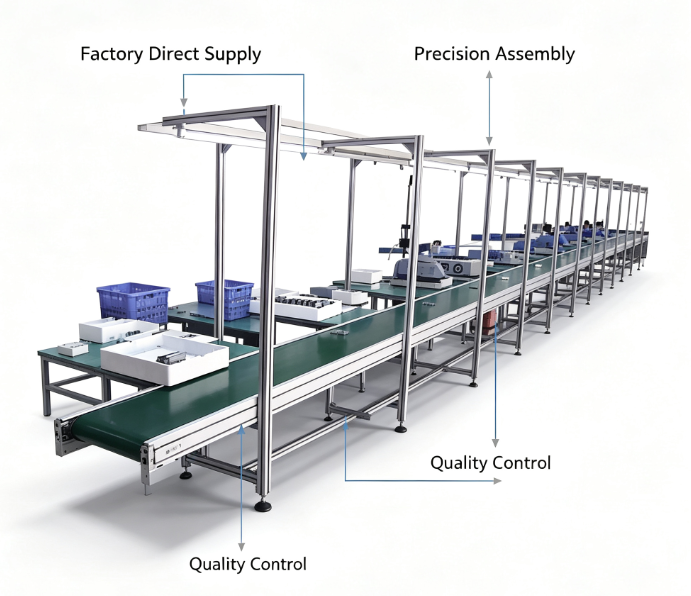

The whole rack adopts 4040 industrial aluminum alloy profile, high rigidity, anti-corrosion and rust-proof. Modular splicing design allows free lengthening or shortening of the whole line according to your workshop space. Adjustable height foot cups are installed at each support leg, to balance the equipment on uneven ground, reduce vibration during operation. The frame surface keeps smooth without sharp edges to avoid scratching operators or components.
Anti-static Conveyor Belt System
The transport belt is high-quality ESD PVC anti-static belt. Its surface resistance is controlled within 10⁶~10⁹Ω, which can release static charge safely and continuously. It prevents electrostatic discharge (ESD) damage to sensitive electronic chips, circuit boards and electronic components. The belt has good wear resistance, low friction coefficient, not easy to deform after long-time running. Belt tension can be adjusted by tensioner to prevent deviation.
Drive & Speed Control

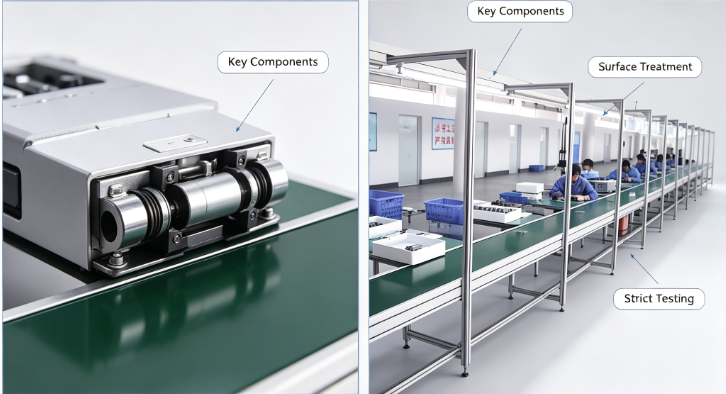

Equipped with frequency conversion motor drive system. The conveyor running speed can be stepless adjusted from 0 to 5 m/min. Factory workers can tune the speed to match your production cycle, suitable for slow precision assembly or medium-speed batch production. Low-noise motor ensures quiet workshop environment, noise less than 60dB during normal operation.
Working Station Configuration
Each operation position is reserved for manual assembly work. The top is fitted with integrated LED light frame to provide sufficient soft lighting for soldering, tiny part installation and visual inspection. Optional accessories can be added: anti-static work plate, multi-hole tool hanging board, storage drawer, power socket, air pipe connector, emergency stop button, photoelectric sensor, material box bracket.
Customization Service
We support full customization of this assembly line: ✅ Custom total length, belt width, work table height ✅ Custom single-side / double-side operation stations ✅ Add anti-static table, shelves, tool racks, power outlets ✅ Change belt material to EPU anti-static belt if needed ✅ Custom color of aluminum profile and frame ✅ Custom special function modules for your production process
Product Advantages
- Reliable ESD protection, meets electronics industry anti-static standard
- Modular aluminum frame, easy installation, disassembly and relocation
- Stepless speed regulation, stable transmission, low failure rate
- Humanized workstation design to reduce worker fatigue
- Wide compatibility for various electronic assembly procedures
Specification & After-sale

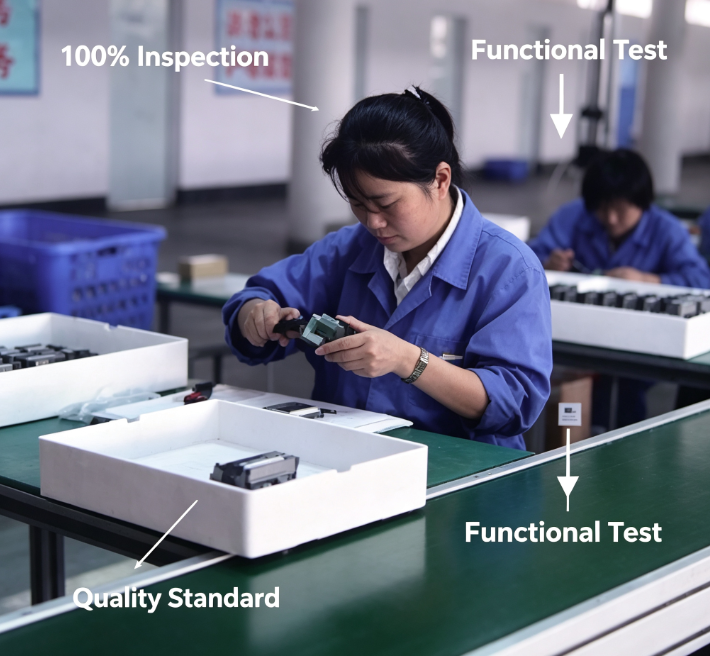

We provide complete installation drawing and operation manual. 12 months warranty for whole equipment. Lifetime technical support for troubleshooting, spare parts supply and line reconstruction. Our production factory strictly inspect each conveyor line before delivery, test static performance and running status to guarantee stable quality.
Suitable for small home appliances, digital products, connectors, sensors and other electronic product assembling, testing and packaging process.
Line Layout & Installation Service
Workbench conveyor lines are laid out to your station count and operator positions, and a free drawing shows bench height, belt line position, socket strip and light bar locations. Modular aluminium sections are pre-drilled so the line is assembled, levelled and commissioned quickly, with remote installation guidance.
Speed, Drive & Load Configuration
Variable speed conveyor control from 0 to 5 m/min through a geared motor conveyor with frequency inverter control gives variable speed conveyor adjustment per section. 220V or 380V drive motor power options match your site supply, and beat mode conveyor stopping suits takt time conveyor stations.
Operation, Maintenance & Energy Use
ESD belt and aluminium frame produce low noise conveyor running, and the energy efficient motor keeps low power consumption across two shifts. Easy maintenance conveyor access includes belt tension adjustment, quick belt replacement and spare parts availability for belts, sockets and control parts.
Certification, Warranty & Spare Parts
The line is produced under an ISO quality system with ESD surface resistance reports, electrical declarations and packing lists provided. A 12-month warranty covers frame, drive motor and electrical accessories with remote ESD verification support.
Lead Time, Order Terms & Packing

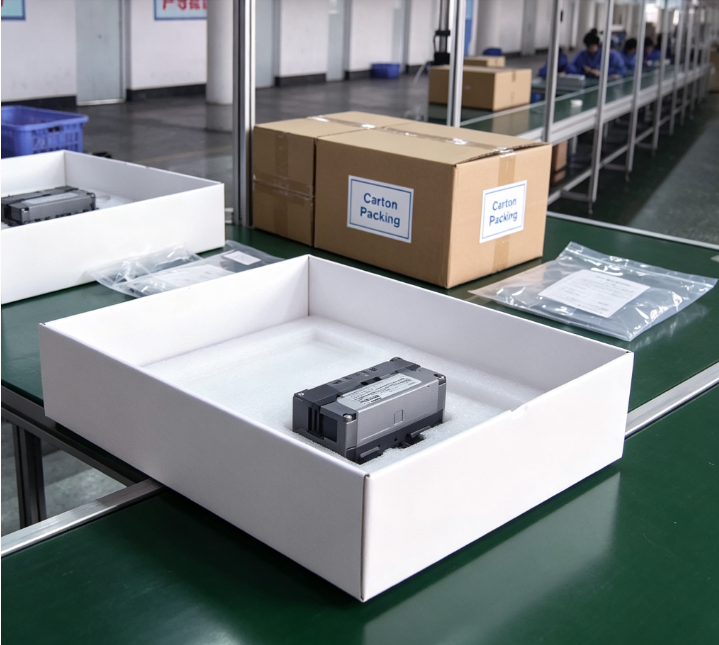

Minimum order 1 set, one set customization and OEM conveyor line branding available. Delivery time 15-20 days at 300 sets monthly production capacity, short lead time assembly line support on request. Export wooden case packing and container loading from our own production line.
Application & Industry Fit
Built for electronics assembly line soldering and testing stations, appliance assembly line final assembly, battery production line module work, and semiconductor production line inspection benches.
Workstation & Ergonomic Configuration
Every workbench station is delivered with led lighting assembly line bars, a cooling fan workstation, power socket strip, parts bin bracket and tool hanging rail as standard options. Working height is set between 750 and 1100mm for an ergonomic assembly line posture, with adjustable height conveyor feet for fine correction.
Safety Protection & Line Integration
Bench frames use safety guardrail conveyor ends and a semi closed conveyor design over the belt return, with pinch point protection at the drive and emergency stop conveyor buttons at each station group. The line offers roller track compatibility for component racks, lean tube connection for side tables, and ce certified conveyor documentation on request.
